Yuejin 1 SFP+4 RJ45 - 12~48VDC 30W 4 IEEE802.3af/at 10/100/1000Mbps 120W

Overview:

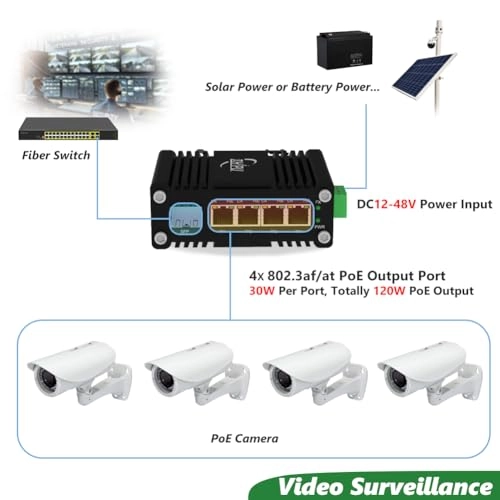

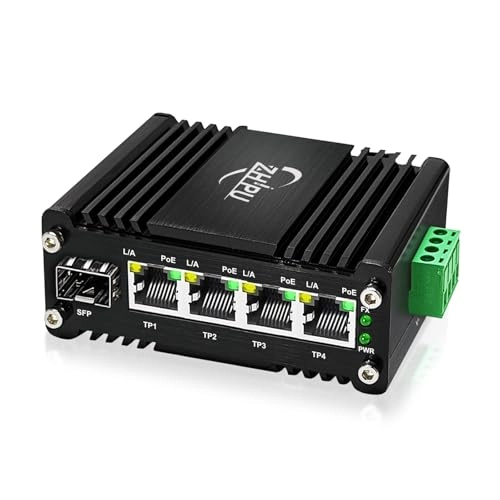

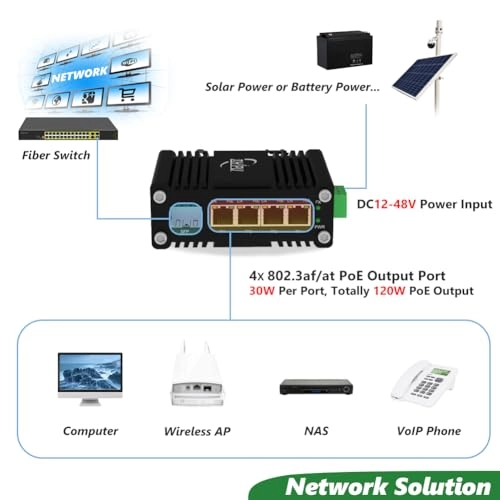

The Industrial Gigabit 4-Port PoE Switch is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range(-40°F to 176°F), it could match a variety of harsh environment.

Features:

1. 100/1000BASE-X SFP slots for SFP type auto detection

2. 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

3. 12~48VDC wide range power input with power booster function

4. Supports 802.3x Flow control

5. Supports DIN-Rail

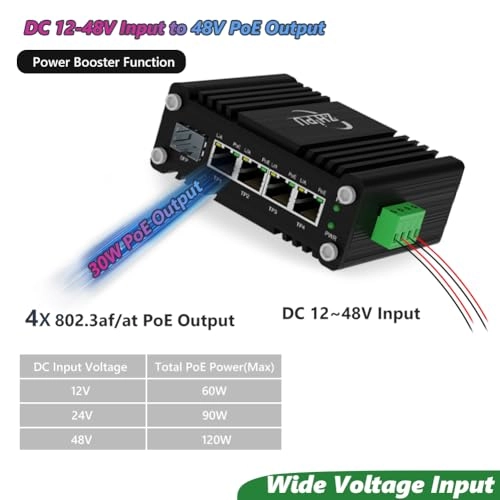

6. Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case

8. -40°C to 80°C (-40°F to 176°F) operating temperature

Specification:

1) Connector: 4xRJ45 ports with 802.3at PoE+ injector function (Ports 1 to 4)

2) Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)

3) PoE Standard: IEEE802.3af/at

4) Packet Buffer: 1 Mbit

5) Packet Length: 10K bytes

6) MAC Address Table: 8K

7) Switch Fabric: 10Gbps/non-blocking

8) Backplane bandwidth: 20Gbps

9) Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

10) Input Power: 12~48VDC, 4-pin terminal block

11) Output Power: 48VDC

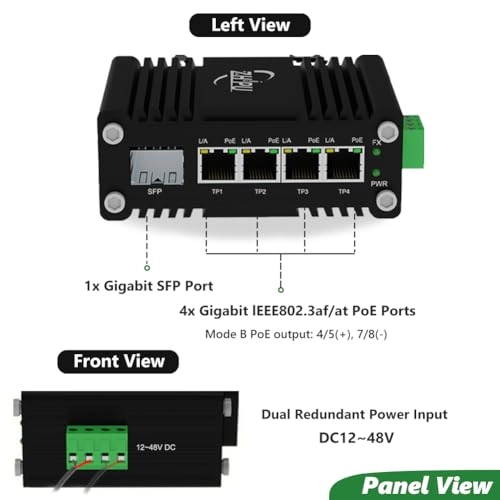

12) Power PIN Assignment: 4,5(+);7,8(-)

13) Certification: CE,FCC

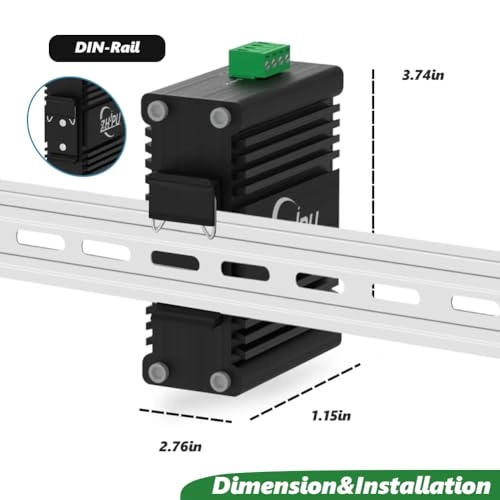

14) Mounting Options: DIN-Rail

15) Operating Temperature: -40°C to 75°C (-40°F to 176°F)

16) Storage Temperature: -40°C to 85°C (-40°F to 185°F)

17) Dimensions (WxDxH): 3.74 x 2.76 x 1.18 inch

18) Weight: 0.25kg

Packages:

1* 4-port PoE Ethernet switch

1* 4-pin terminal block

1* User Manual
