Yuejin 2 SFP+2 RJ45 4-ports

Overview:

The Industrial Gigabit 2-Port Switch has 2 Gigabit SFP port and 2 RJ45 port. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40°F and 176°F, making it ideal for outdoor installations or industrial applications.

Features:

1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

3. Supports Link Fault Pass Through

4. Supports Full/Half-duplex, Auto-negotiation

5. 9K Bytes Jumbo Frame

6. 12~48VDC Redundant Power Supply

7. Supports DIN-Rail installation

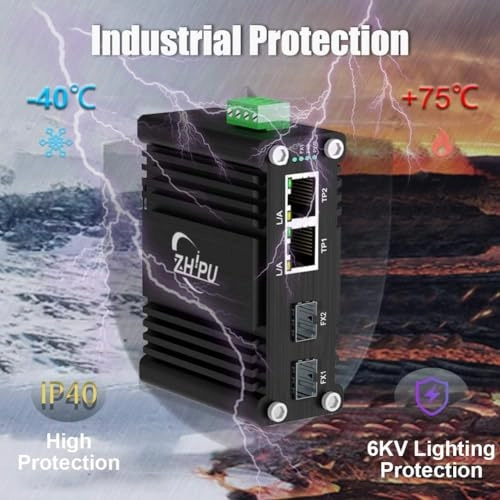

8. Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature

Specification:

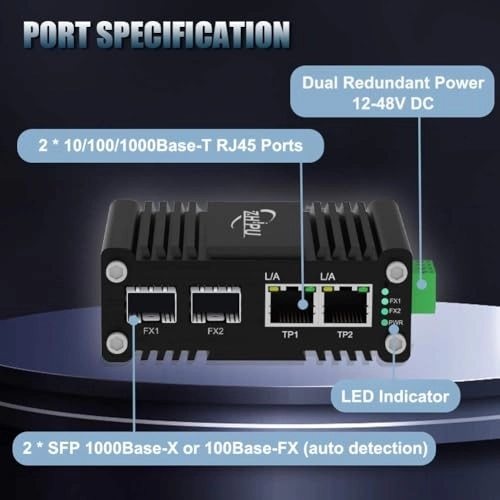

1) Connector: 2xRJ45, 2xSFP

2) Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection)

3) SFP modules: single/multi-mode fiber, 1or 2 core

4) Packet Buffer Memory: 1 Mbit

5) Packet Length: 9K bytes

6) MAC Address Table: 2K

7) Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

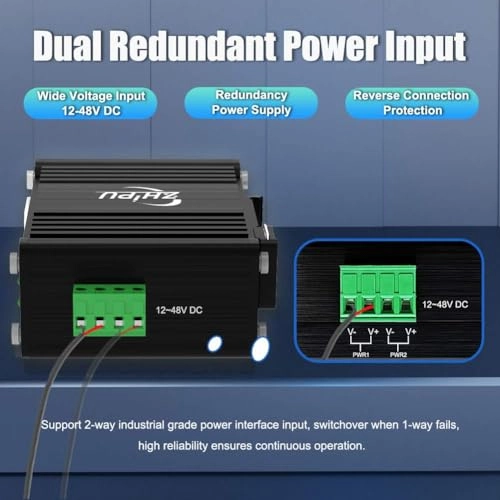

8) Input Power: 12~48VDC, 4-pin terminal block

9) Power Consumption: 5W Max

10) Power PIN Assignment: 4,5(+);7,8(-) (Alternative B Mode)

11) Certification: CE,FCC

12) Mounting Options: DIN-Rail

13) Operating Temperature: -40°C to 75°C (-40°F to 167°F)

14) Storage Temperature: -40°C to 85°C (-40°F to 185°F)

15) Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch

16) Weight: 0.25kg

Packages:

1* 2-port Non-PoE Ethernet switch

1* 4-pin terminal block

1* User Manual
