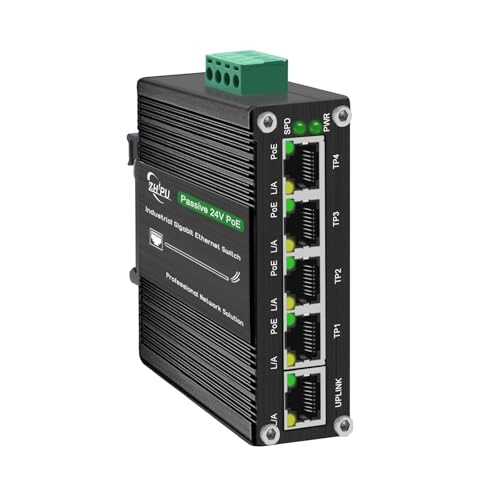

Features:

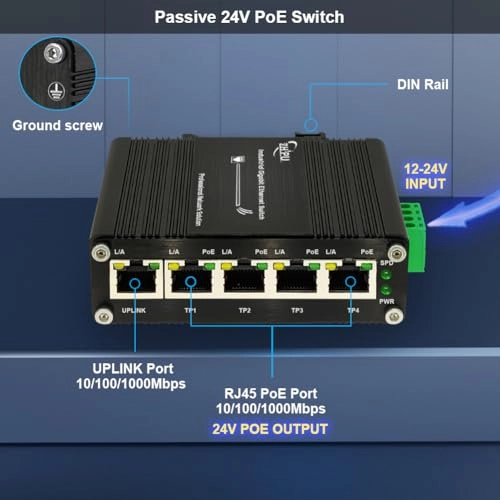

1. 5 x 10/100/1000BASE-T ports
2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with PoE Injector (Port-1 to Port-4)

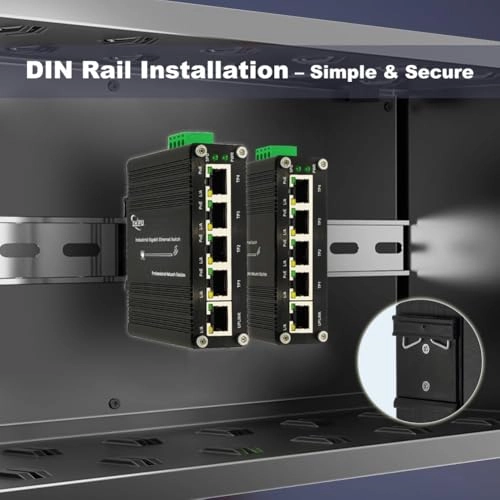

3. 12~24VDC range power input, 24V PoE output
4. Supports DIN-Rail and Wall-mount installation
5. Industry standard design, dustproof and close design IP40, rugged high-strength metal case
6. -40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:
Packet Buffer: 1Mbits
Packet Length: 9K
MAC Address Table: 4K
Forward & Filtering Rate: 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)

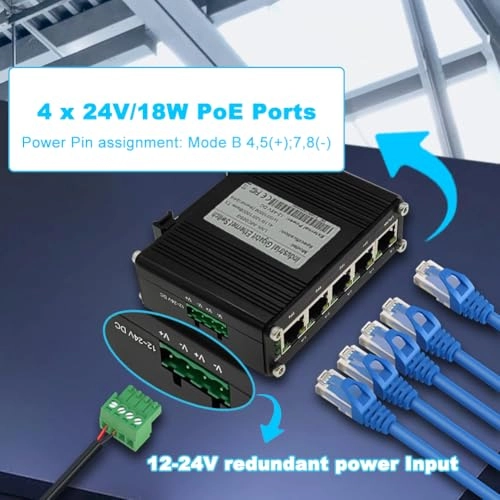

Power Pin Assignment: 4/5(+), 7/8(-)
Input Power: 12~24VDC (Terminal Block)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Power Consumption: 78W Max. (PoE in use) & <5W (Non-PoE)
Material: Aluminum Case
ltem Dimensions LxWxH : 3.74x 2.76 x 1.15 inches

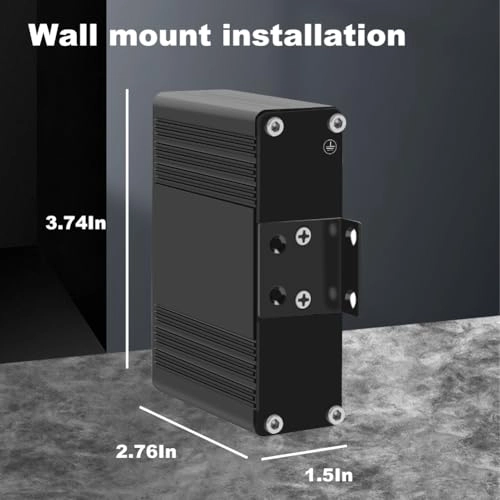

Mounting Type: DIN-Rail and Wall-mount
