Yuejin 1 SFP+3 RJ45 | PoE30W 4-ports

Overview:

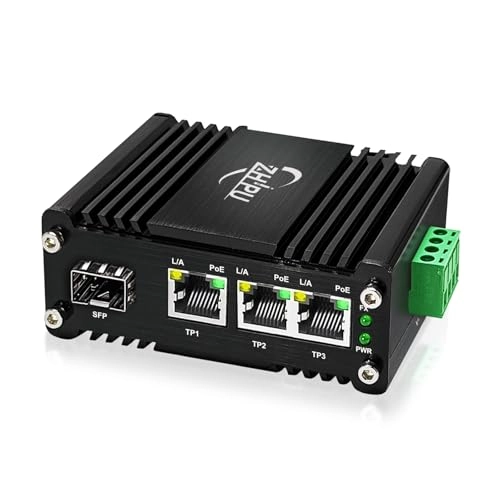

The Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range(-40°F to 176°F), it could match a variety of harsh environment.

Features:

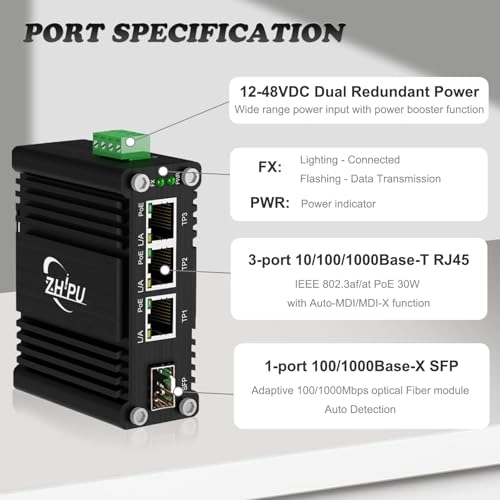

1. 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

2. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

3. 12~48VDC wide range power input with power booster function

4. Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

5. Supports Full/Half-duplex, Auto-negotiation

6. IEEE 802.3az Energy Efficient Ethernet (EEE)

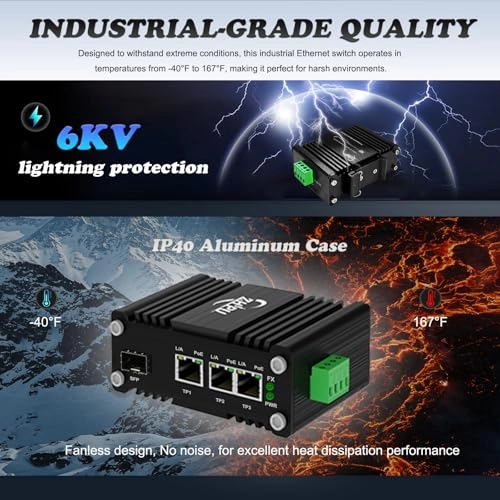

7. Industry standard design, dust-proof and close design IP40 Aluminum Case

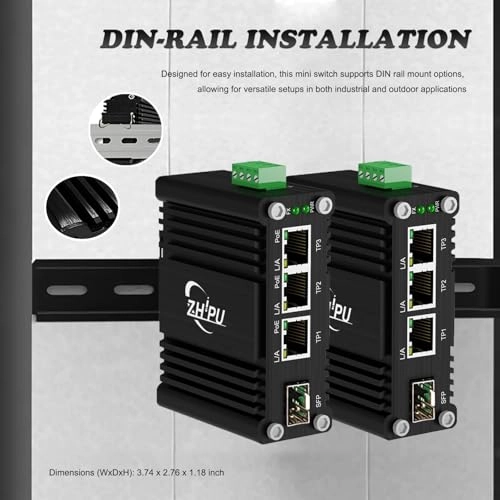

8. Supports DIN-Rail installation

9. Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature

Specification:

1) Connector: 3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)

2) Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)

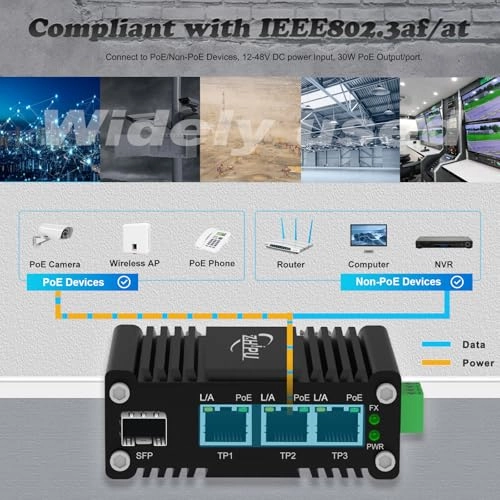

3) PoE Standard: IEEE802.3af/at

4) Packet Buffer: 4 Mbit

5) Packet Length: 9K bytes

6) MAC Address Table: 2K

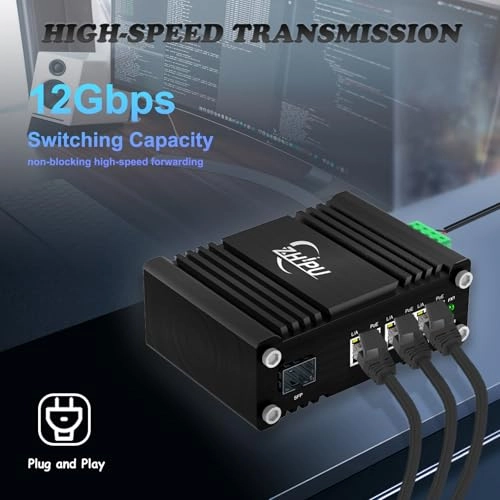

7) Switch Fabric: 12Gbps/non-blocking

8) Processing Type: Store-and-Forward

9) Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

10) Input Power: 12~48VDC, 4-pin terminal block

11) Power Consumption: <95W (Non-PoE<6W)

12) Power PIN Assignment: 4,5(+);7,8(-)

13) Certification: CE, FCC, RoHS

14) Mounting Options: DIN-Rail

15) Casing: Aluminum Case

16) Operating Temperature: -40°C to 75°C (-40°F to 176°F)

17) Storage Temperature: -40°C to 85°C (-40°F to 185°F)

18) Dimensions (WxDxH): 3.74 x 2.76 x 1.18 inch

19) Weight: 0.3kg

Packages:

1* 3-port PoE Ethernet switch

1* 4-pin terminal block

1* User Manual
