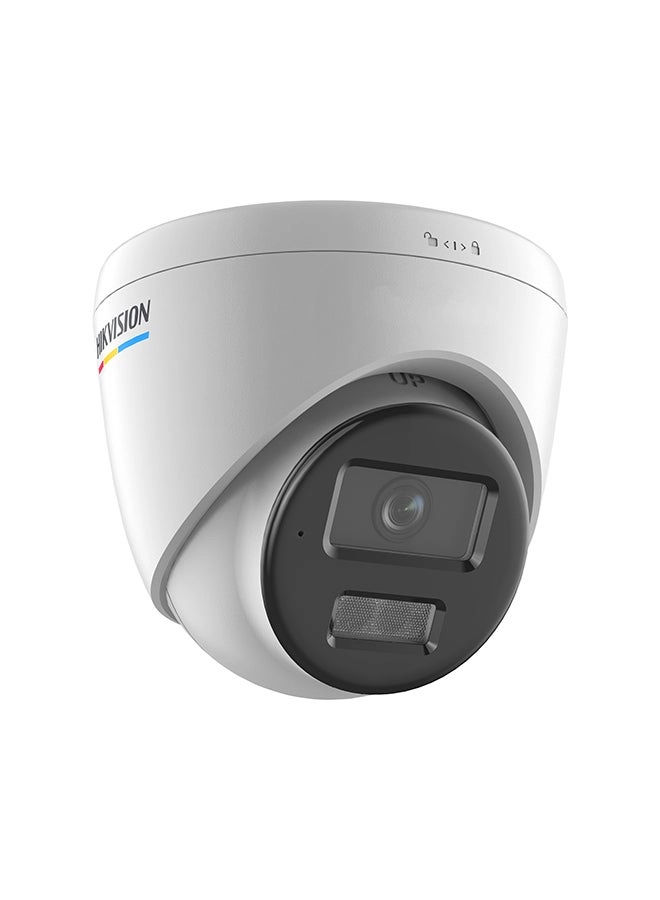

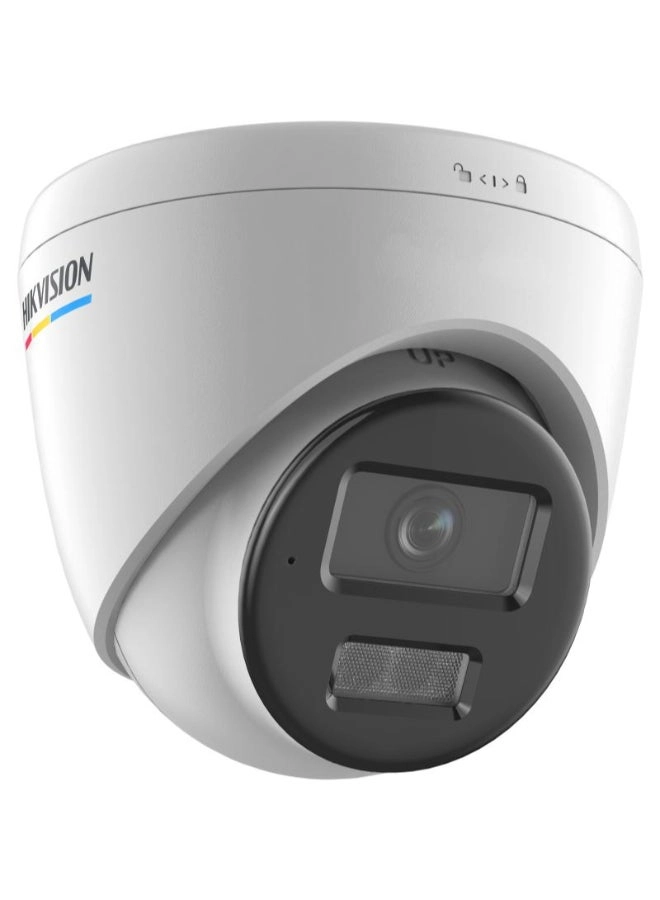

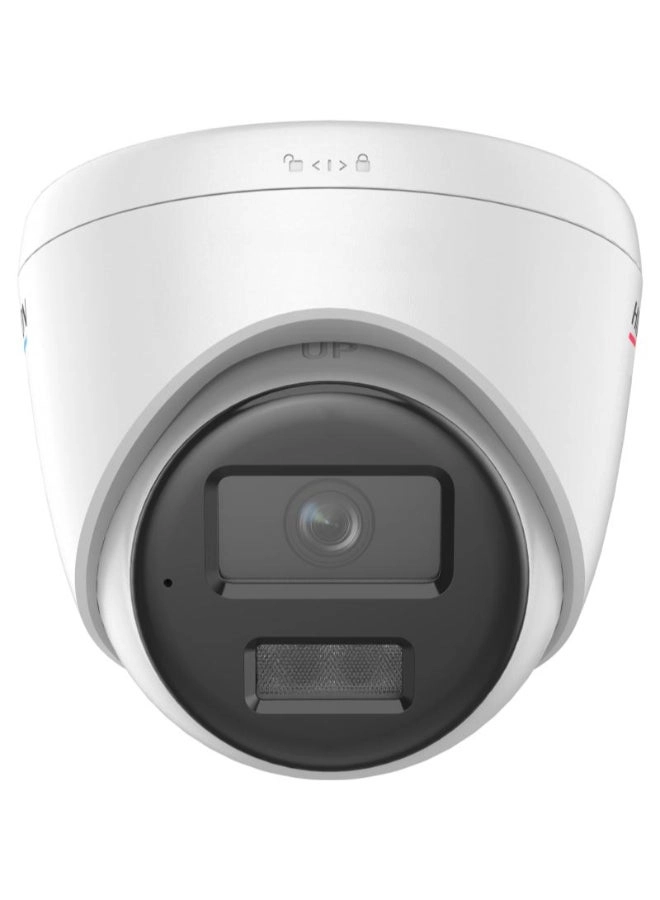

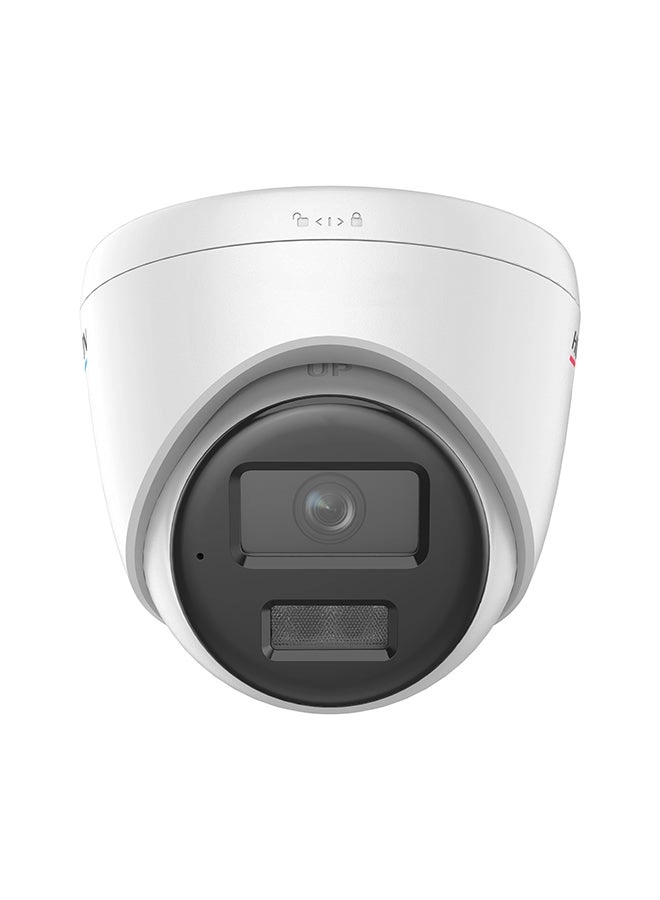

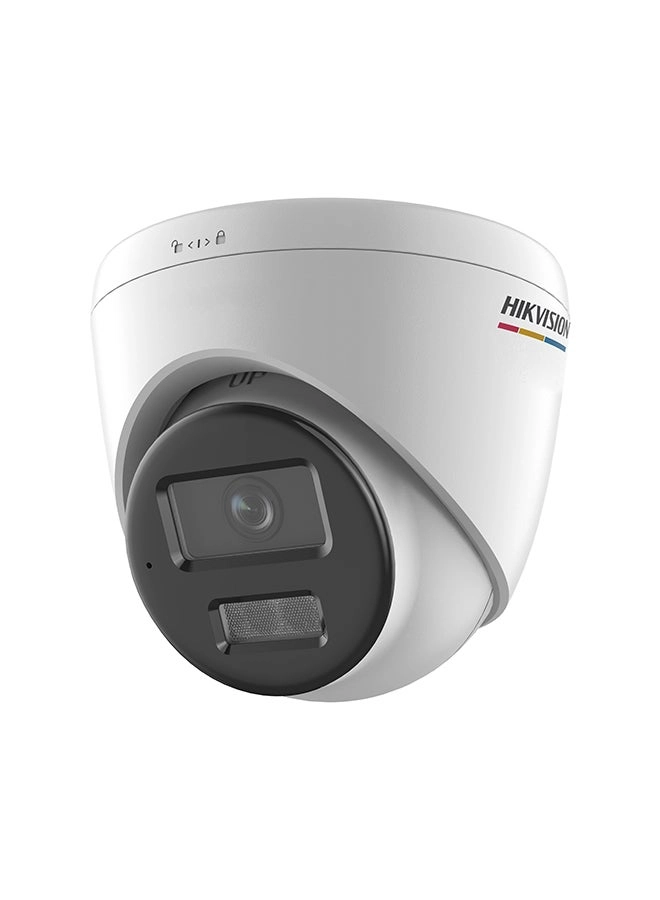

Hikvision DS-2CD1347G2H-LIU

Name: Hikvision DS-2CD1347G2H-LIU
Brand: Hikvision
SKU: 357232

Best offer

AED

289⁰⁰

Key Features

Detect distance: 64m
Observe distance: 23.1m
Recognize distance: 12m
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 54.4°°
Lens viewing angle, diagonal: 143°°
Power consumption (Power over Ethernet (PoE)): 9W
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Fixed focus: Yes
Alert notification type: E-mail
Type: IP security camera
Active tampering alarm: Yes

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Water resistant, Waterproof

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS, TLS

Languages support

Multi, Polish

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Fixed focus

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Output impedance

100 Ω

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520, 640 x 360, 640 x 480 (VGA)

Detect distance

64 m

Packaging data

Package weight

1920 g

Package height

155 mm

Package depth

156 mm

Package width

386 mm

Weight & dimensions

Weight

1210 g

Height

91.20 mm

Width

93.30 mm

Diameter

74.40 mm

Length

286.70 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

12.50 W

DC output current

0.88 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

9 W

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Bullet

Built-in light

✓

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP, SRTP, SSL/TLS, TCP/IP, UDP, UPnP, WebSocket, WebSockets

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Remote viewing

✓

Compliance certificates

BIS, CB, CE, Electromagnetic Compatibility (EMC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE

Audio

Built-in speaker(s)

✓

Lens system

Lens mount interface

M12

Maximum aperture number

Iris

✓

Number of lenses

Fixed focal length

4 mm

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

23.10 m

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Smart IR

✓

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Network access storage (NAS)

✓

Password reset via email

✓

Pixel counter

✓

Flash log

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

115°

Human and vehicle targets classification

✓

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Face detection

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

143°

Lens viewing angle, vertical

54.4°

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Dynamic range

130 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

60 m

Infra-red wavelength

850 nm

Product Details

4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
