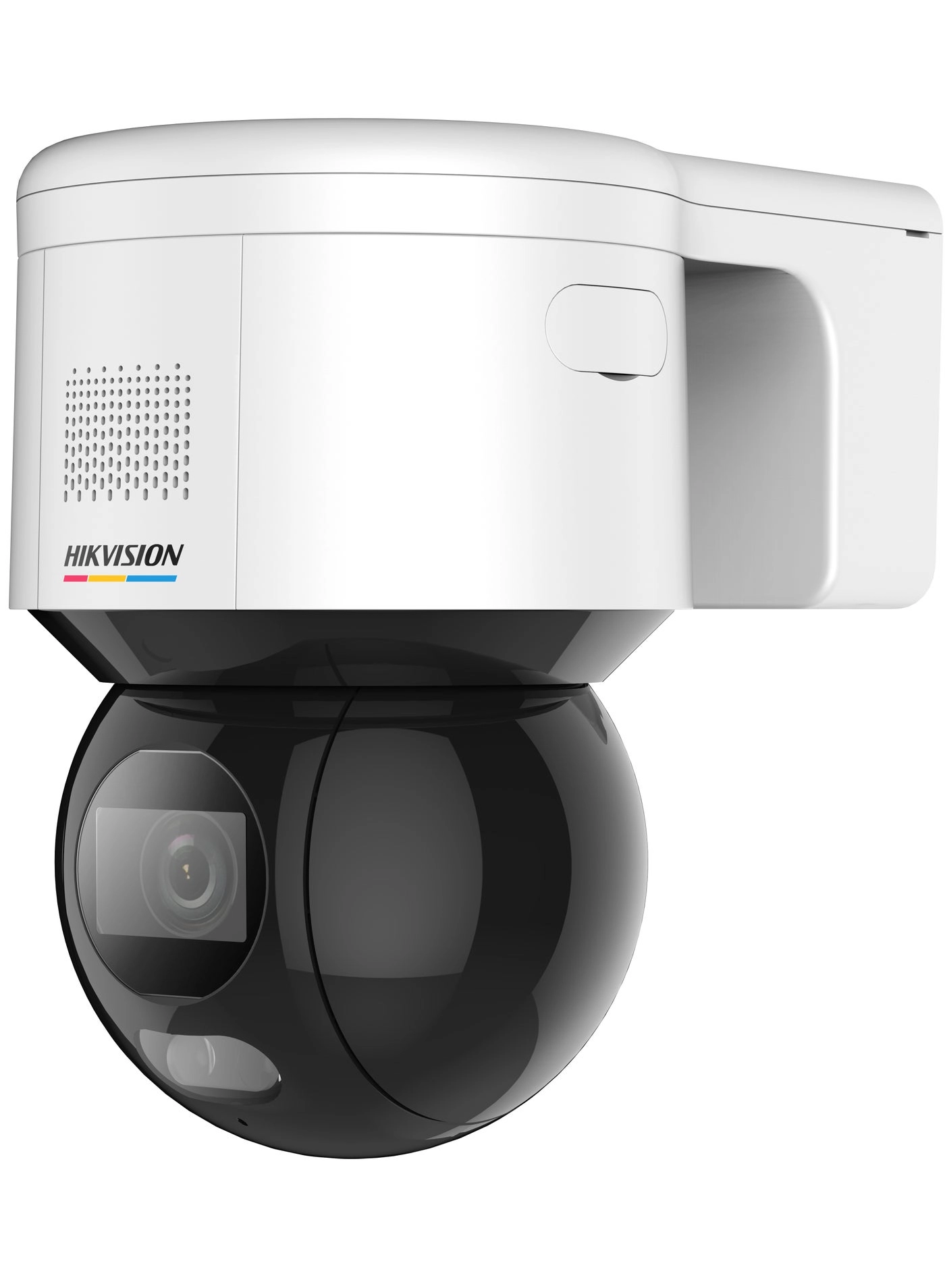

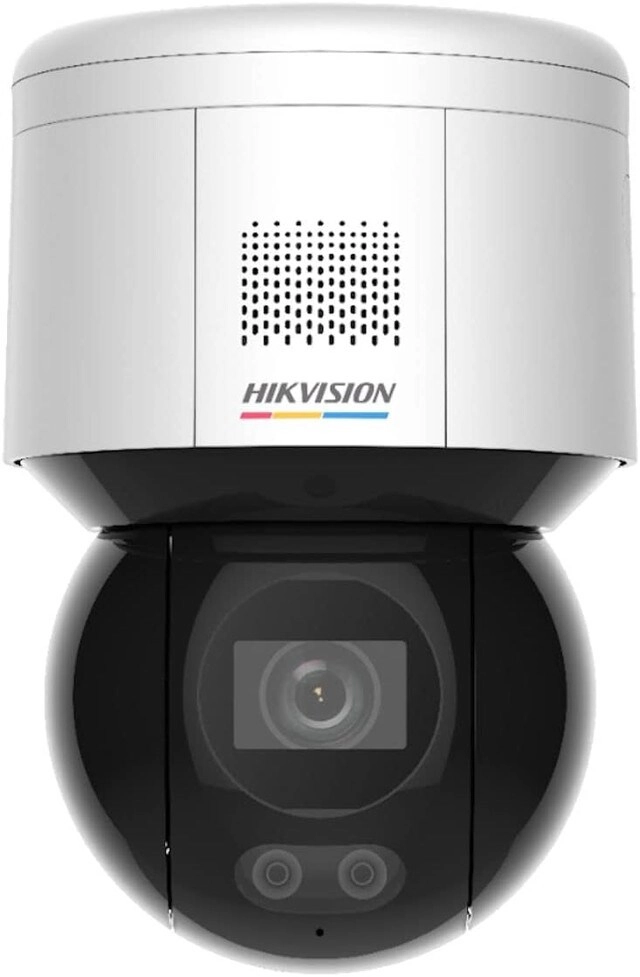

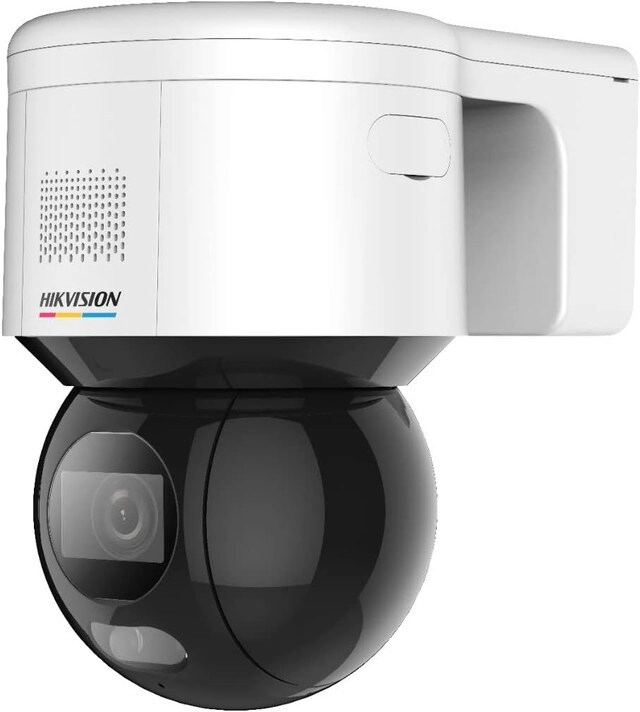

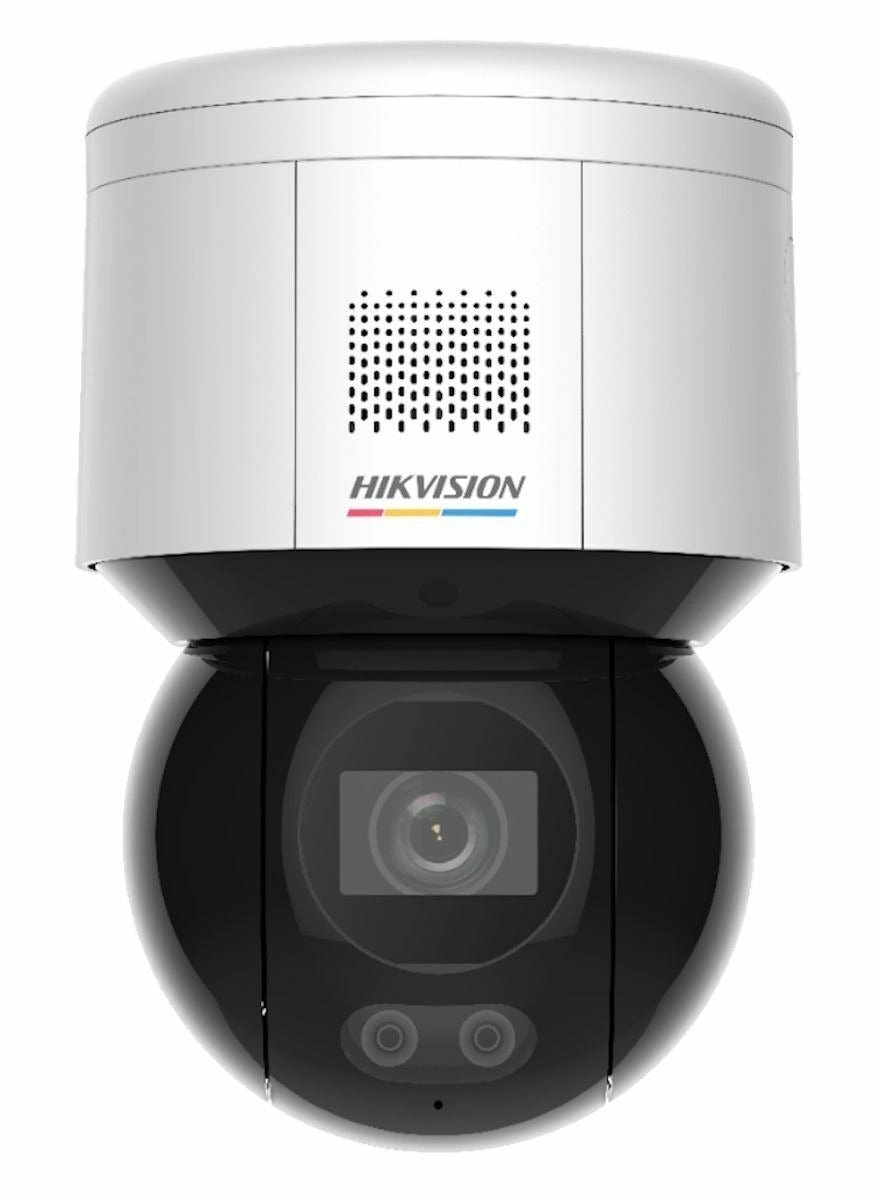

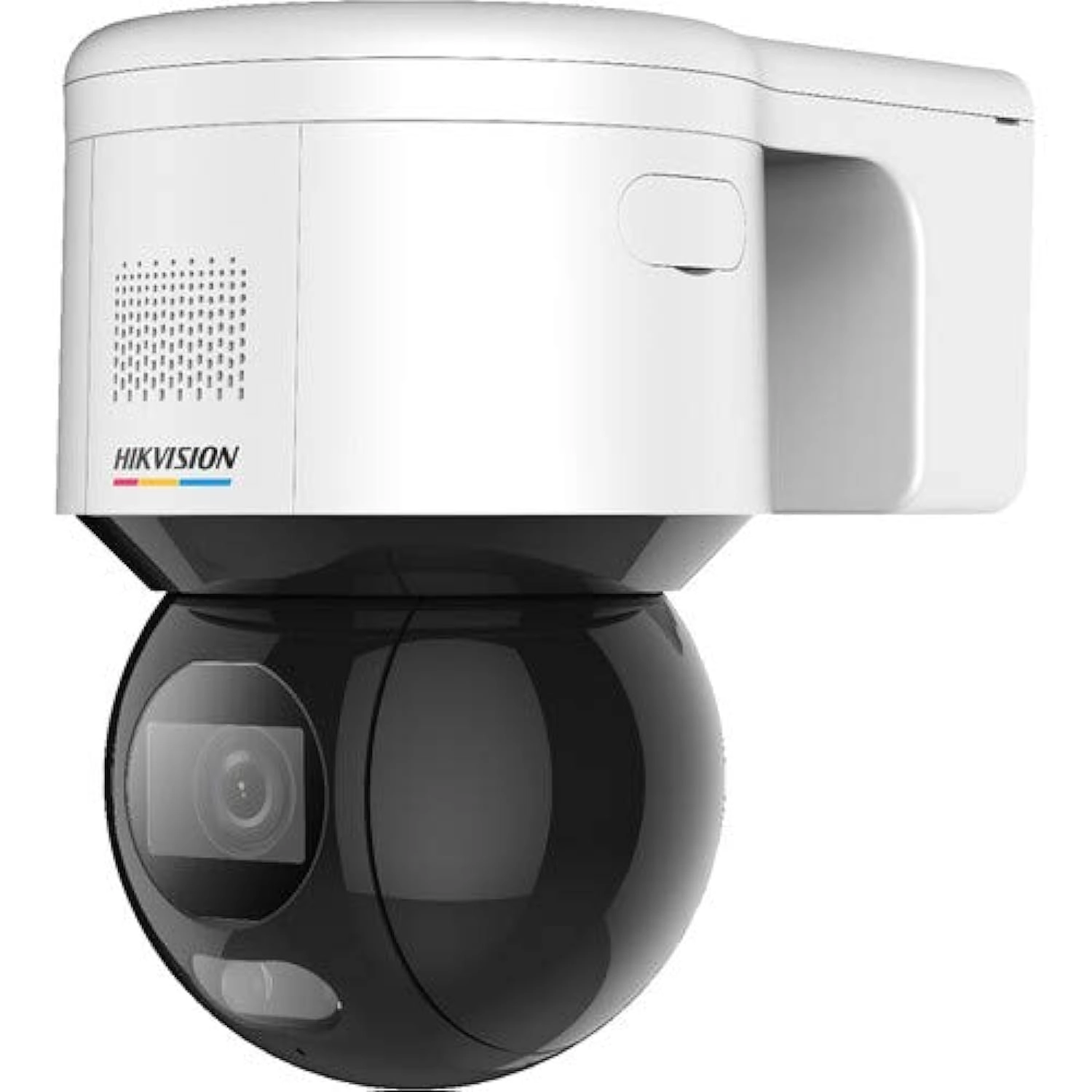

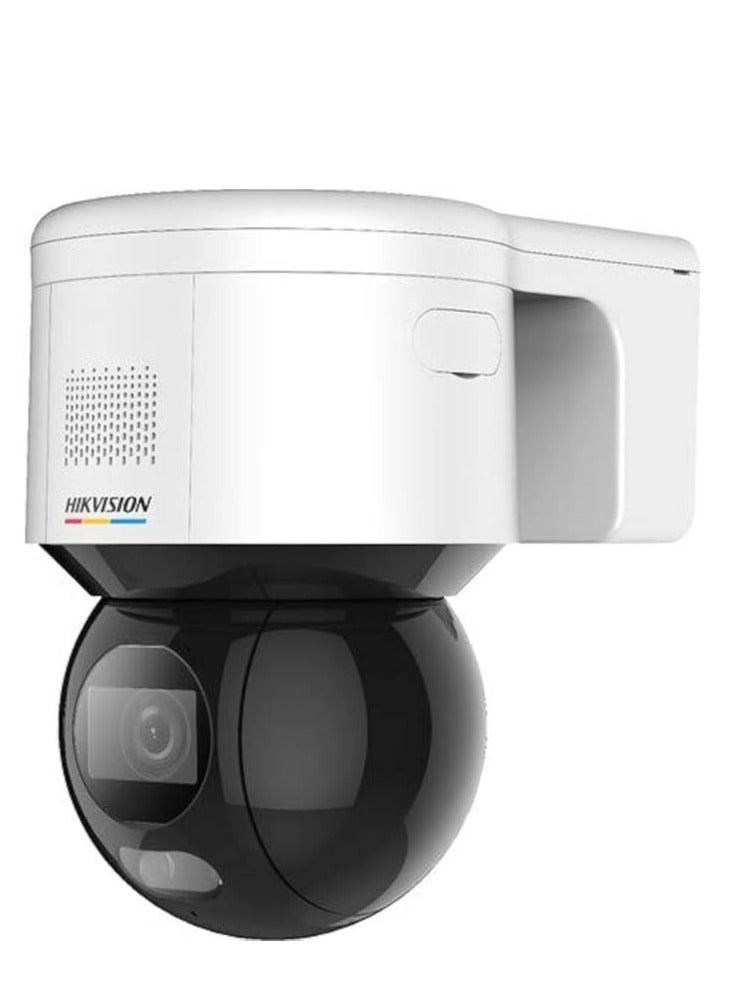

Hikvision DS-2DE3A400BW-DE

Name: Hikvision DS-2DE3A400BW-DE
Brand: Hikvision
SKU: 354856

Best offer

AED

579⁰⁰

Key Features

PTZ status display: Yes
Camera tilt control: Yes
B/W night vision distance: 6m
Zoom speed: 2 ss
Proportional zoom: Yes
Detect distance: 180m
Observe distance: 71.4m
Preset points: Yes
Preset freezing function: Yes
Recognize distance: 36m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 46.5°°
Lens viewing angle, diagonal: 115.1 - 36.3°°
Identify distance: 18m

Specifications

Features

Web browser

✓

Antennas quantity

Voice codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Number of sensors

Built-in microphone

✓

Remotely operated

✓

Audio formats supported

G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

256 GB

Password protection

✓

Video motion detection

✓

Security algorithms

128-bit WEP, 64-bit WEP, EAP-LEAP, EAP-MD5, EAP-TLS, WPA, WPA2, WPS

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Fog proof

✓

Frequency band

2.4 - 2.4835 GHz

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576

Detect distance

180 m

Packaging data

Package height

224 mm

Package depth

256 mm

Package width

169 mm

Weight & dimensions

Weight

1120 g

Height

182 mm

Depth

120 mm

Width

179.30 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power

Power consumption (max)

14 W

DC output current

3.33 A

Power source type

PoE

DC output voltage

Performance

PTZ modes

Preset point, Preset sequence

Pan speed

60 °/sec

Tilt speed

50 °/sec

Camera pan control

✓

Preset freezing function

✓

Preset points

✓

PTZ status display

✓

Other features

Browser supported

Chrome 57.0+, Firefox 52.0+, IE10-11, Safari 12+

Noise reduction

✓

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP66

Housing material

Aluminium, Polycarbonate (PC)

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall, Wall

Form factor

Dome

Computer system

Antenna type

Internal

Network

Client interoperability

Hik-Connect, HikCentral, iVMS-4200

Wi-Fi

✓

Bluetooth

✗

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at

Supported network protocols

802.1x, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/IPv6, NTP, PPPoE, QoS, Qos, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP, Websocket, Websockets

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Channel bandwidth

40 MHz

Number of simultaneous live view channels

20 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

RS-485 ports

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Audio

Built-in speaker(s)

✓

Audio detection

✓

Lens system

Digital zoom

16 x

Optical zoom

4 x

Maximum aperture number

Number of lenses

Fixed focal length

4 mm

Identify distance

18 m

Noise reduction technology

3D noise reduction

Recognize distance

36 m

Observe distance

71.40 m

Proportional zoom

✓

Zoom speed

2 s

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

3D positioning

✓

Supported video modes

1080p, 1440p, 240p, 480p, 576p, 720p

Security

IP address filtering

✓

Network access storage (NAS)

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Focusing

Focus

Motorized/Manual

Closest focusing distance

0.01 m

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1 - 1/30000 s

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Zoom capability

✓

PTZ control

✓

Focal length range

2.8 - 12 mm

Bit rate

32 - 16384 Kbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

88.7°

Progressive scan

✓

White balance

Indoor

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Crossing line, Face detection, Intrusion, Region entrance detection, Region exiting detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

115.1 - 36.3°

Lens viewing angle, vertical

46.5°

Camera tilt control

✓

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 350 °

Pan preset speed

60 °/sec

Tilt preset speed

50 °/sec

Image sensor

Maximum resolution

2560 x 1440 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

30 m

B/W night vision distance

6 m

Sound module

Preset programs quantity

300

Product Details

Hikvision DS-2DE3A400BW-DE/W(F1)(S5) 4MP Network PTZ Camera can be widely used in multiple indoor and outdoor scenes, such as malls, stores, parks, factories, scenic areas, entrances and exits. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
