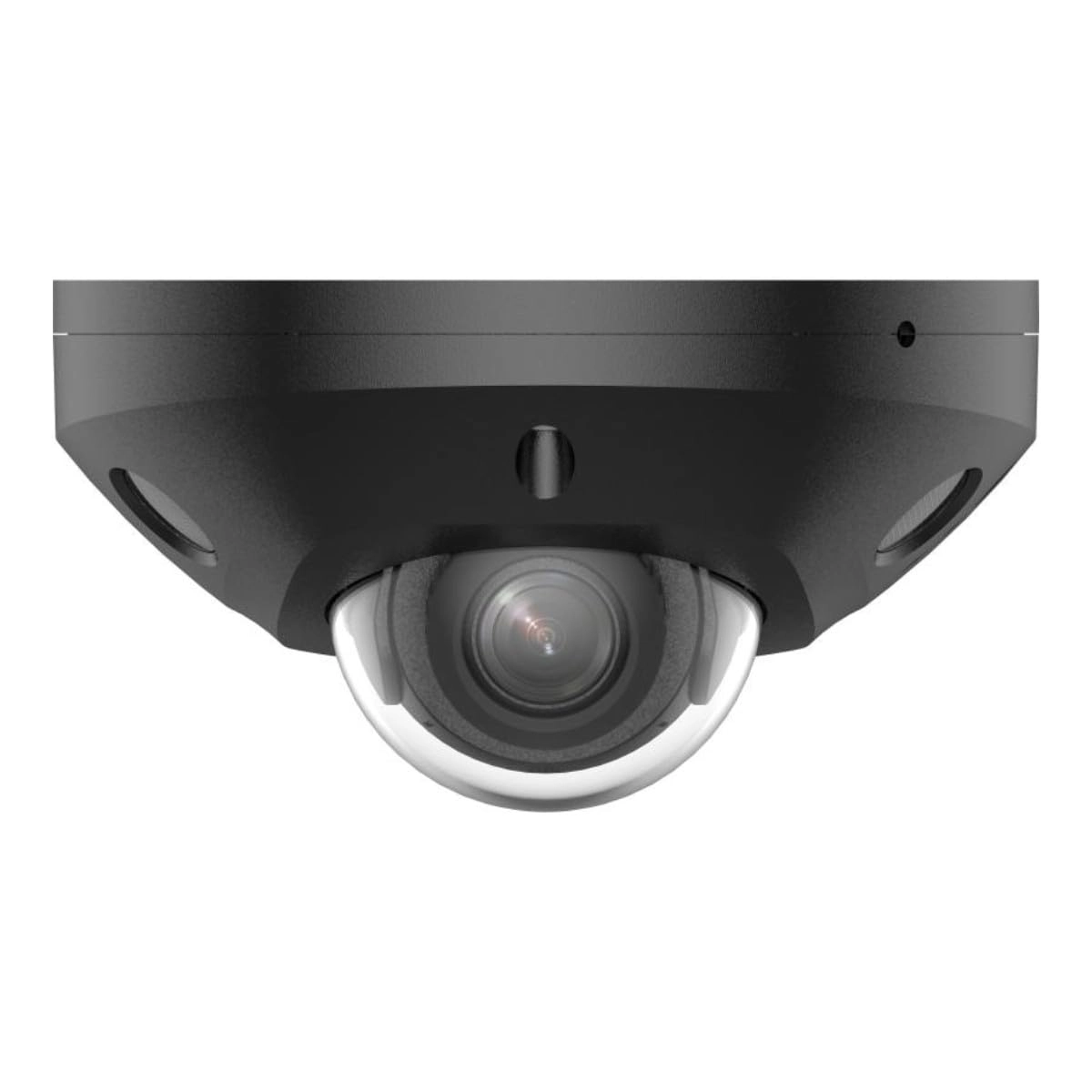

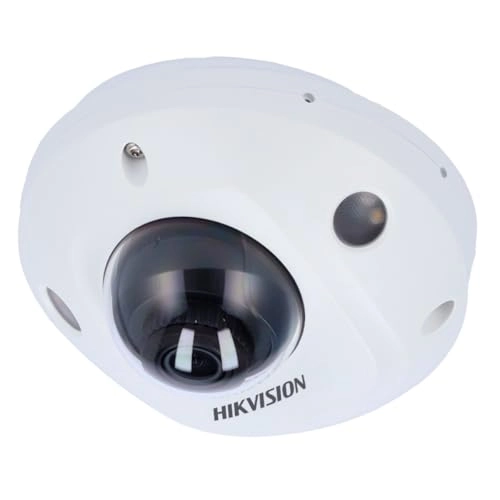

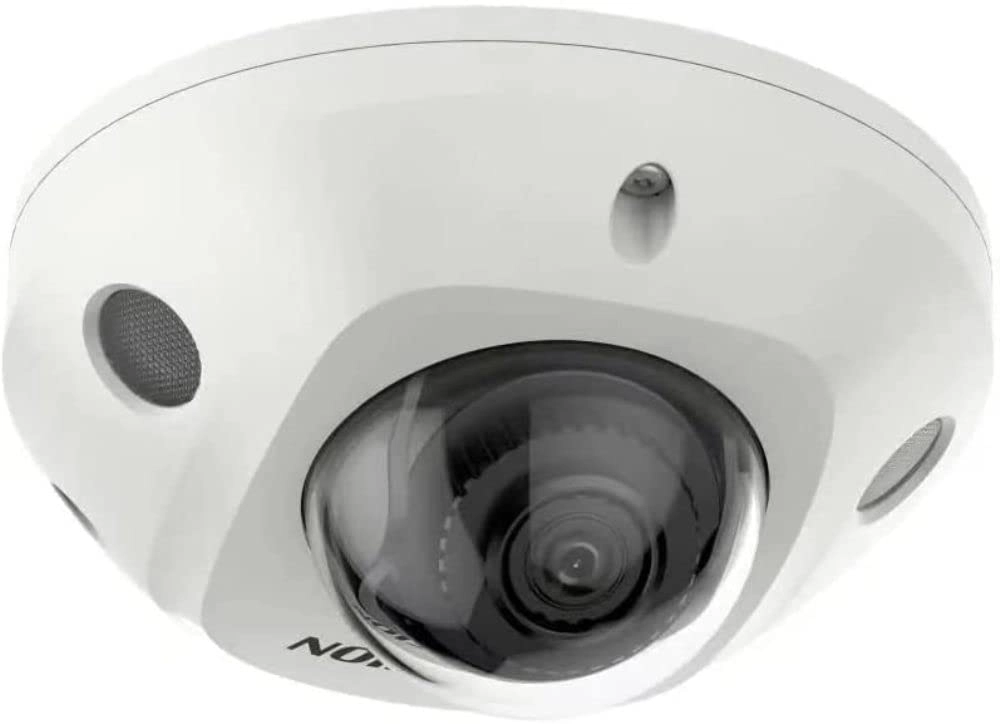

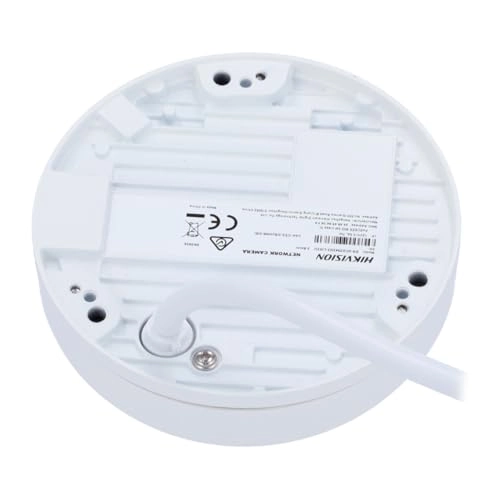

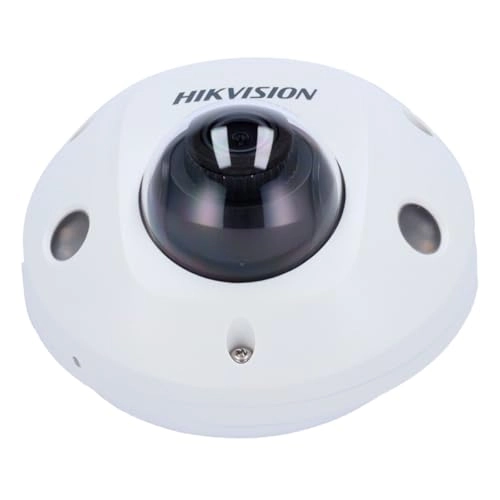

Hikvision DS-2CD2543G2-LIS2U

Best offer

AED

359⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 63m
Observe distance: 25m
Recognize distance: 12m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 57°°
Lens viewing angle, diagonal: 123.8°°
Power consumption (Power over Ethernet (PoE)): 7W
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes

Offers (1)

1 offer

From

AED

359

Hikvision 4 MP Acusense Smart Hybrid Light Fixed Mini Dome Network Camera, Built-In Arrayed-Dual Microphone, 120 dB True WDR Technology, Built-In Memory Card Slot Supports up to 512 GB, H.265+, IP67, IK08 | DS-2CD2543G2-LIS2U

AED

359⁰⁰

Price History

Loading price history...

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC, MP3

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

256 GB

Password protection

✓

Video motion detection

✓

Security algorithms

TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired, Wired & Wireless

Product colour

White

Video streaming

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 360, 640 x 480 (VGA)

Detect distance

63 m

Packaging data

Package weight

615 g

Package height

108 mm

Package depth

134 mm

Package width

150 mm

Weight & dimensions

Weight

380 g

Height

57.40 mm

Diameter

110 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

7.20 W

DC output current

0.45 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7 W

Performance

Camera pan control

✓

Other features

I/O ports

line in, line out

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK08

Housing material

Aluminium, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Dome

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af

Supported network protocols

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

Anti-flicker

✓

Lens system

Lens mount interface

M12

Maximum aperture number

1.60

Iris

✓

Number of lenses

Fixed focal length

2.80 mm

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

25 m

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Password reset via email

✓

Pixel counter

✓

Flash log

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Face detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

123.8°

Lens viewing angle, vertical

57°

Camera tilt control

✓

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm
