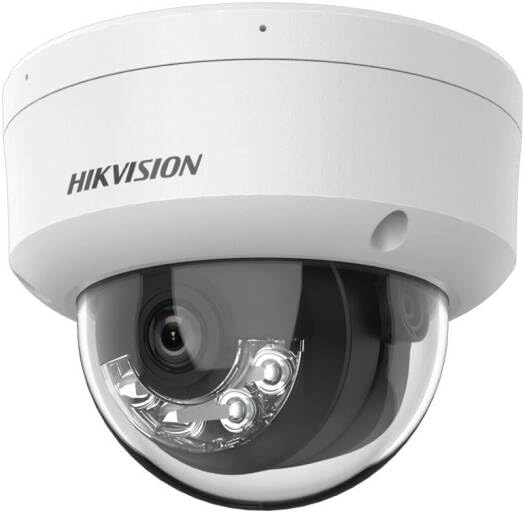

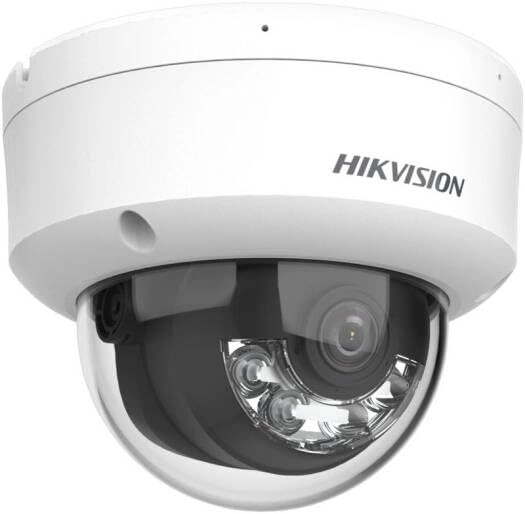

Hikvision DS-2CD1143G2-LIU

Name: Hikvision DS-2CD1143G2-LIU
Brand: Hikvision
SKU: 357377

Best offer

AED

166⁰⁰

AED

180⁰⁰

-7%

Key Features

Detect distance: 53, 63m
Observe distance: 21, 25m
Recognize distance: 10, 12m
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 57°°
Lens viewing angle, diagonal: 112°, 123°°
Power consumption (Power over Ethernet (PoE)): 6.5, 8.5W
Identify distance: 5, 6m
Infrared (IR) cut-off filter: Yes
User access level: Administrator, Operator, User
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520, 640 x 360, 640 x 480 (VGA)

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711 A-law, G.711 μ-law, G.722, G.726, MP2L2

Card reader integrated

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

TLS

Languages support

Multi

Number of languages

2, 33

Connectivity technology

Wired

Product colour

Black, White

Video streaming

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520, 640 x 360, 640 x 480 (VGA)

Detect distance

53m, 63m

Packaging data

Package weight

250g, 830g

Package height

75mm, 141mm

Package depth

75mm, 150mm

Package width

150mm, 163mm

Weight & dimensions

Weight

175g, 600g

Height

57.90mm, 97.60mm

Depth

138.80 mm

Width

60.90 mm

Diameter

122 mm

Management features

Behavior analysis

Line crossing detection

Power

Power consumption (max)

5W, 7.20W

DC output current

0.40A, 0.60A

Power source type

DC, PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

6.50W, 8.50W

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

355°, 360°

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor/Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Bullet, Dome

Built-in light

✓

Packaging content

Mounting kit

✓

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, WebSocket, WebSockets

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, CE-EMC: EN 55032:2015+A1:2020, CE-LVD: EN 62368-1: 2014/A11: 2017, EN 50130-4:2011+A1:2014, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, IC: ICES-003: Issue 7, IK10: IEC 62262:2002, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, RCM: AS/NZS CISPR 32: 2015, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013, WEEE: 2012/19/EU

Compliance certificates

BIS, CB, CE, REACH, RoHS, UL, WEEE

Lens system

Maximum aperture number

1.60, 2

Number of lenses

Fixed focal length

2.80 mm

Identify distance

5m, 6m

Noise reduction technology

3D noise reduction

Recognize distance

10m, 12m

Observe distance

21m, 25m

Video

Video compression formats

H.264, H.265

Video formats supported

H.264, H.265

Frame rate

25fps, 30fps

Image quality adjustment

Brightness, Contrast, Sharpness

Video recording

✓

Privacy masking

✓

Supported video modes

1080p, 1440p, 360p, 480p, 720p

Security

IP address filtering

✓

Audit log

✓

Heartbeat

✓

Password reset via email

✓

Pixel counter

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

4, 8

Camera shutter speed

1/100000 - 1/3 s, 1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

White balance

Auto, Manual

Wide Dynamic Range (WDR)

✓

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

112°, 123°

Lens viewing angle, vertical

57°

Amplifier

Sample rates

[object Object],[object Object]

Pan-tilt unit

Tilt angle range

[object Object],[object Object]

Pan range

[object Object],[object Object]

Image sensor

Maximum resolution

2560 x 1440, 1920 x 1080

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

30 m, 40 m

Infra-red wavelength

850 nm

Product Details

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios. Pro Series (All) Get the smart features and imaging performance you need at a great value
