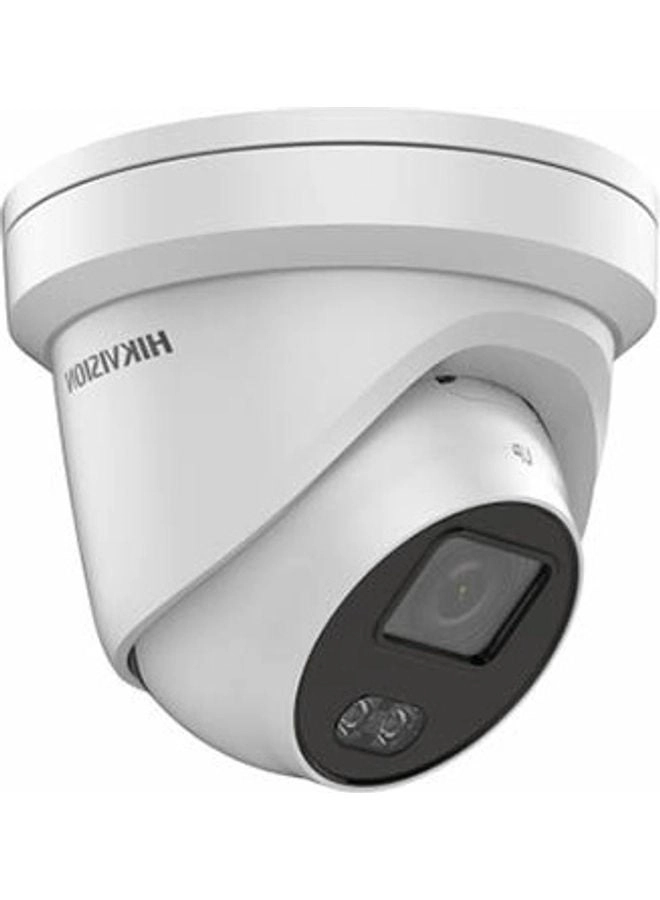

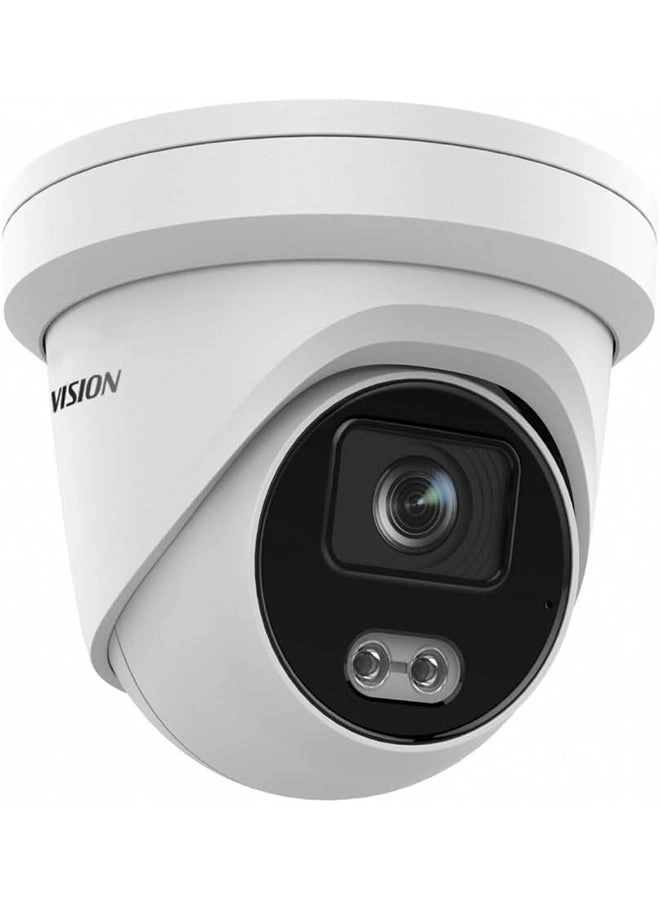

Hikvision DS-2CD2347G2-L

Name: Hikvision DS-2CD2347G2-L
Brand: Hikvision
SKU: 737626

Best offer

AED

444⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 81°°
Lens viewing angle, diagonal: 113°°
Power consumption (Power over Ethernet (PoE)): 7.6W
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Alert notification type: E-mail
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC, G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Motion sensor: Yes

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Water resistant

Voice codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Number of sensors

Built-in microphone

✓

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

256 GB

Password protection

✓

Video motion detection

✓

Security algorithms

HTTPS, SNMP, TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC, G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3

Motion sensor

✓

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 320 x 240, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

13 m

Packaging data

Package weight

1140 g

Package height

150 mm

Package depth

170 mm

Package width

170 mm

Weight & dimensions

Weight

820 g

Height

125.20 mm

Diameter

138 mm

Length

125.20 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

6.60 W

DC output current

0.88 A

Power source type

DC output voltage

Power consumption (Power over Ethernet (PoE))

7.60 W

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Dome

Packaging content

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP™, Websocket, Websockets

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

2016), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, CB: IEC 62368-1: 2014+A11, CE-EMC (EN 55032: 2015, CE-EMC: EN 55032: 2015, CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, Class B FCC SDoC (47 CFR Part 15, EN 50130-4: 2011 +A1: 2014, EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-2:2019, EN 61000-3-3: 2013, EN 61000-3-3: 2013+A1:2019, FCC: 47 CFR Part 15, IC VoC (ICES-003: Issue 6, IC: ICES-003: Issue 7 UL: UL 62368-1, IEC 62368-1:2014), KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU), RCM (AS/NZS CISPR 32: 2015), RCM: AS/NZS CISPR 32: 2015, Reach (Regulation (EC) No 1907/2006), Reach: Regulation (EC) No 1907/2006, Subpart B, Subpart B), WEEE (2012/19/EU), WEEE: 2012/19/EU

Anti-flicker

✓

Audio

Built-in speaker(s)

✓

Lens system

Maximum aperture number

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

38 m

Observe distance (wide)

21 m

Identify distance (wide)

3.50 m

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, DNR, Mirror, Saturation, Sharpness

Privacy masking

✓

Supported video modes

1080p, 1520p, 240p, 360p, 480p, 720p

Security

IP address filtering

✓

Audit log

✓

Heartbeat

✓

Pixel counter

✓

Flash log

✓

HTTPS encryption

✓

Focusing

Closest focusing distance

2.50 m

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

109 °

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

94°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Human detection, Vehicle detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

113°

Lens viewing angle, vertical

81°

Camera tilt control

✓

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Product Details

With a perfect balance of performance and value, Hikvision Pro Series network cameras aim to provide just the right components, including intelligent features that are affordable and easy to use.

Files

Product Brochure

mmo_87163784_1604593702_3382_9972.pdf

PDF• 1.3 MB

User manual

mmo_87163784_1604593704_042_9962.pdf

PDF• 4.8 MB

Quick Start Guide

mmo_88248787_1611241689_1574_33399.pdf

PDF• 21.6 MB
