• CAMERA
Image Sensor 1/2.8" Progressive Scan CMOS

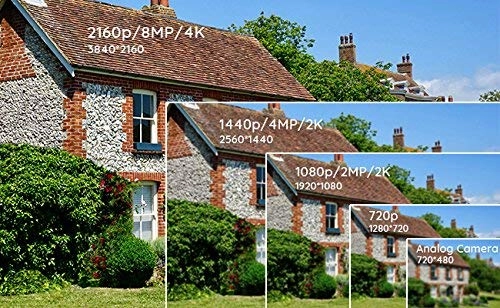

• Max. Resolution3840 × 2160
• Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
• Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°
4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
• Lens Mount M12
• Iris Type Fixed
• Aperture F1.6
• Depth of Field
2.8 mm: 1.7 m to ∞
4 mm: 2.6 m to ∞
6 mm: 5.8 m to ∞
DORI
• DORI
2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m
Illuminator
• Supplement Light Type IR, White Light
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength850 nm
Video
• Main Stream
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Bit Rate Control CBR, VBR
• Region of Interest (ROI)1 fixed region for main stream and sub-stream
• Target Cropping Yes
Audio
• Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering-2U: Yes
Network
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PP PoE, SNMP, WebSocket, Web Sockets
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
• Client iVMS-4200, Hik-Connect, Hik-Central
• Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
• Image
• Image Parameters Switch Yes
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC,3D DNR
• Privacy Mask8 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/ micro SDHC/ micro SDXC card, up to 512 GB
• Reset Key Yes
• Audio
Built-in Microphone:
-2U: Dual Array Microphone
• Event
• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event
Unattended baggage detection, object removal detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Deep Learning Function
• Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
• Power
12 VDC ± 25%, 0.5 A, max. 6 W, reverse polarity protection, Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material Metal
• DimensionØ74.4 mm × 176.3 mm (Ø2.93" × 6.94")
• Package Dimension234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61")
• Weight Approx. 515 g (1.1 lb.)
• With Package Weight Approx. 760 g (1.7 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Approval
• EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
• Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
• ProtectionIP67: IEC 60529-2013
