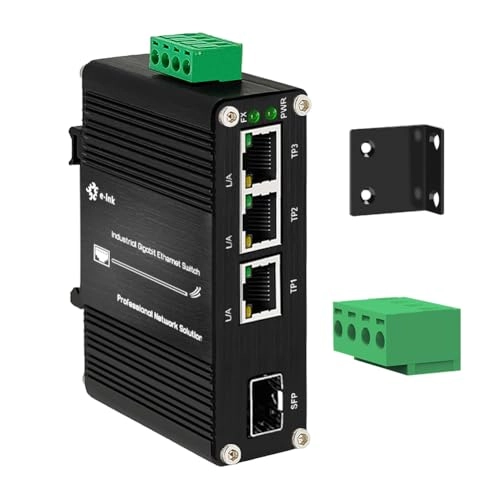

Throncom LNK-IMC103G-SFP 3-ports

Overview:

This is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Specification:

Interface: 3-Port 10/100/1000T + 1-Port 100/1000X SFP

Standards:IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward Filter Rate: 14880pps (10Mbps), 148800pps (100Mbps), 148800pps (100Mbps)

Packet Buffer Memory: 4 Mbit

Switch Fabric: 12Gbps

Max Packet Length: 9K Bytes

Address Table Size: 2K MAC Addresses

Input Power: 12~48VDC, 2-pin terminal block

Power Consumption: 5W Max

Key Features:

3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

Supports Full/Half-duplex, Auto-negotiation

IEEE 802.3az Energy Efficient Ethernet (EEE)

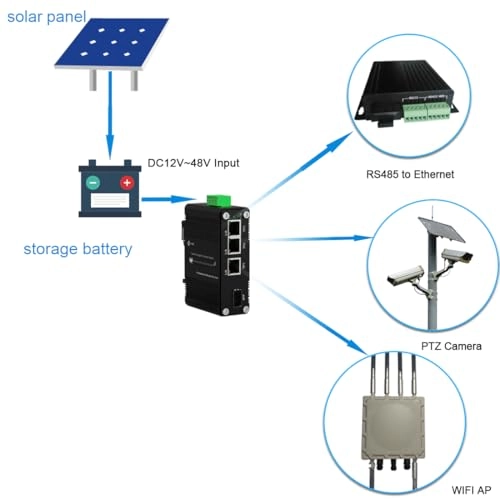

12~48VDC Terminal Block Power Input

IP40 Aluminum Case

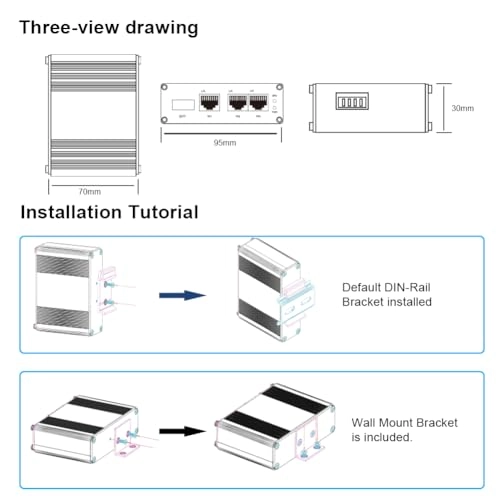

Supports DIN-Rail & Wall-mount installation

What You Get:

1*4-Port Gigabit Industrial Ethernet Switch

1*User Manual

1*Wall Mount Kit
