Throncom 10 RJ45 Switch 10-Ports

Overview:

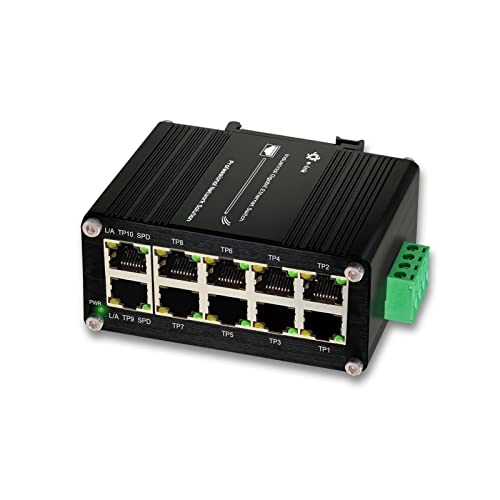

This 10 port 10/100/1000M Industrial Ethernt Switch support 10* 10/100/1000Base-T RJ45 with Auto MDI/MDI-X, and all 10 RJ45 Ports can be used as Uplink, support DIN-Rail installation, dual power supply (DC12-48V); working temperature -40℃~ +75℃. It has passed the industrial environment certification. The reliable industrial design can ensure that your automation system runs without interruption and stability.

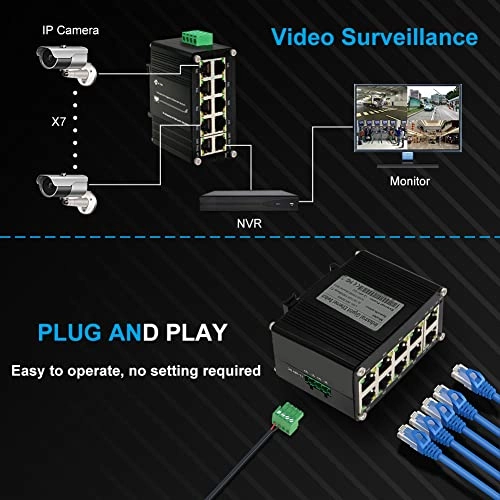

This series of industrial Switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.

Specification:

Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE)

Packet Buffer: 2Mbits

Packet Length: 9216bytes

MAC Address Table: 4K

Switch Fabric: 20Gbps/non-blocking

Input Power: 12~48VDC

Power Consumption: <10W

Casing: Aluminum Case

Key Features:

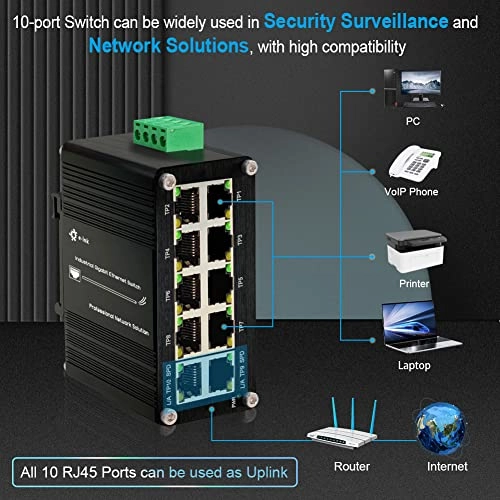

► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

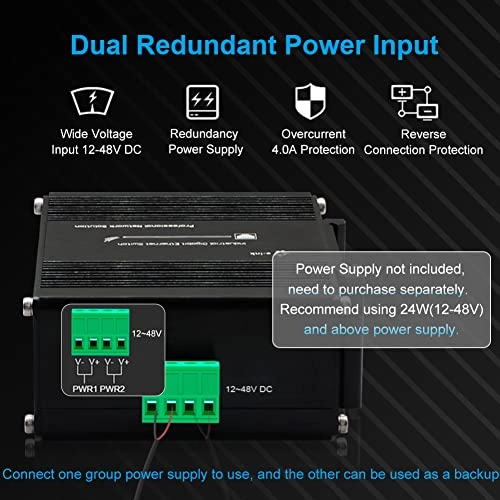

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

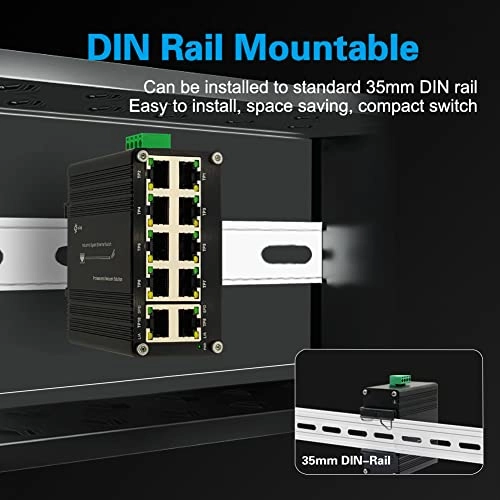

► Supports DIN-Rail installation

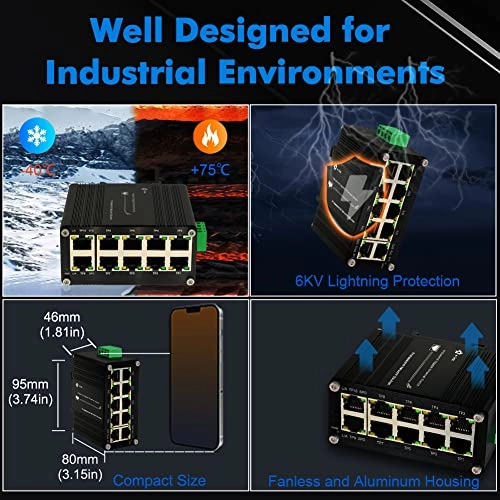

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Please Attention:

This Din Rail Ethernet Switch don’t contain Power Supply, You need to purchase separately. Use 12~48V power supply.
