Throncom Ethernet Switch 5-ports

Overview:

This is a Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit

Ethernet Switch with 12~48V DC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.

Specification:

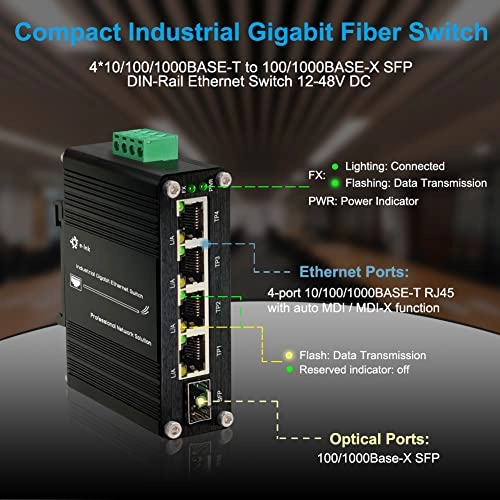

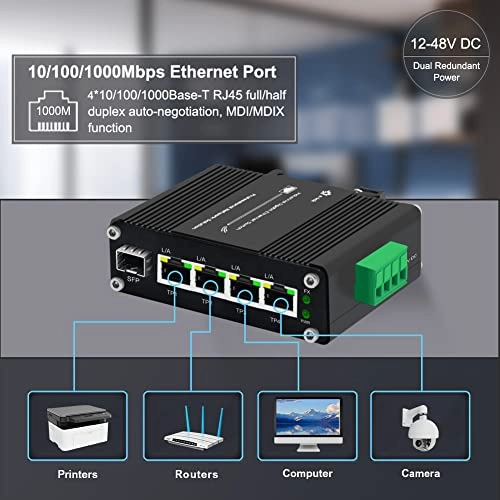

• Interface : 4 x RJ45 10/100/1000BASET RJ45 auto-MDI/MDI-X ports + 1 x SFP 1000Base-X or 100Base-FX (auto detection)
• Standards:IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab Gigabit Ethernet,IEEE 802.3x Full-Duplex Flow Control,IEEE 802.3az Energy Efficient Ethernet (EEE)
• Forward Filter Rate: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps)
• Packet Buffer Memory: 1Mbits
• Switch Fabric: 10Gbps/non-blocking
• Max Packet Length: 9K Bytes
• Address Table Size: 4K MAC Addresses

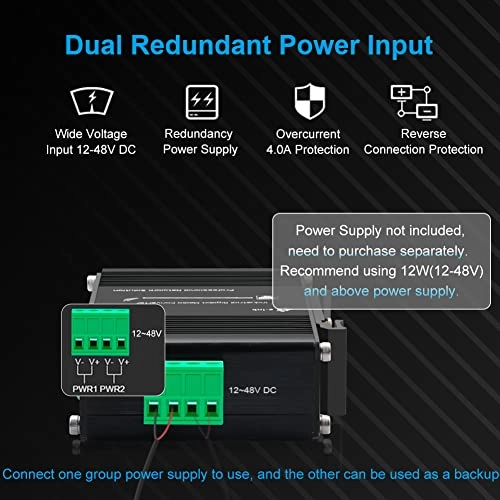

• Input Power: 12~48VDC (Terminal Block)
• Power Consumption:<6W

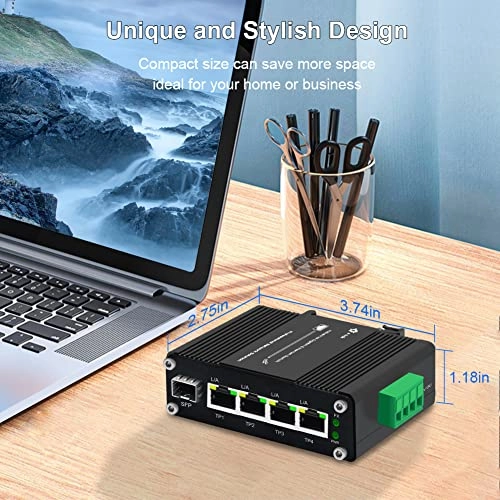

• Dimensions (WxDxH): 95 x 70x 29mm
• Weight: 250g
• Casing: Aluminum Case
• Mounting Options: DIN-Rail / Wall-mount

Key Features:

4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports12~48VDC wide range power inputSupports 802.3x Flow controlComplies with IEEE802.3az Energy Efficient Ethernet (EEE)Supports DIN-Rail and Wall-mount installationIndustry standard design, dustproof and close design IP40, rugged high-strength metal case-40°C to 80°C (-40°F to 176°F) operating temperature.
