Throncom 4 RJ45+1 SFP PoE Switch 5-ports

Overview:

This s is a Mini Industrial 4Port 10/100/1000T 802.3at PoE + 1Port 100/1000X SFP

Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE

switch is designed to match the critical industrial standards. With reliable and simple operation against vibration

and shock, and wide operation temperature range, it could match a variety of harsh environment.

Specification:

Interface : 4 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 4) + 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Standards:IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab Gigabit Ethernet,IEEE 802.3x Full-Duplex Flow Control,IEEE 802.3az Energy Efficient Ethernet (EEE),IEEE 802.3at Power over Ethernet Plus PSE,IEEE 802.3af Power over Ethernet Plus

Forward Filter Rate: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps)

Packet Buffer Memory: 1Mbits

Switch Fabric: 10Gbps/non-blocking

Max Packet Length: 9K Bytes

Address Table Size: 4K MAC Addresses

PoE Standard:IEEE802.3af/at

Power Pin Assignment: 4/5(+), 7/8(-)

PoE Budget: Up to 120W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE

budget (12VDC)

Input Power: 12~48VDC (Terminal Block)

Power Consumption:<125W

Dimensions (WxDxH): 95 x 70x 29mm

Weight: 250g

Casing: Aluminum Case

Mounting Options: DIN-Rail / Wall-mount

Key Features:

100/1000BASE-X SFP slots for SFP type auto detection

4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

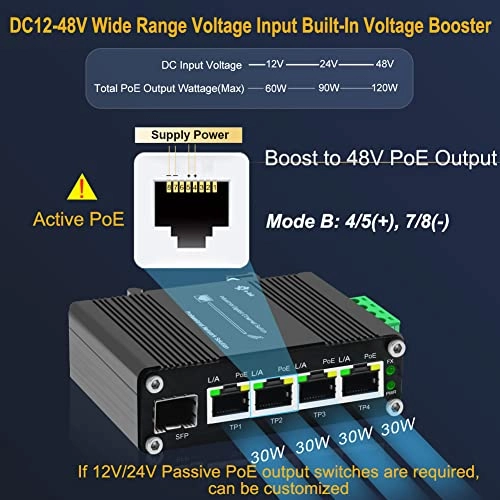

12~48VDC wide range power input with power booster function

Supports 802.3x Flow control

Supports DIN-Rail and Wall-mount installation

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
