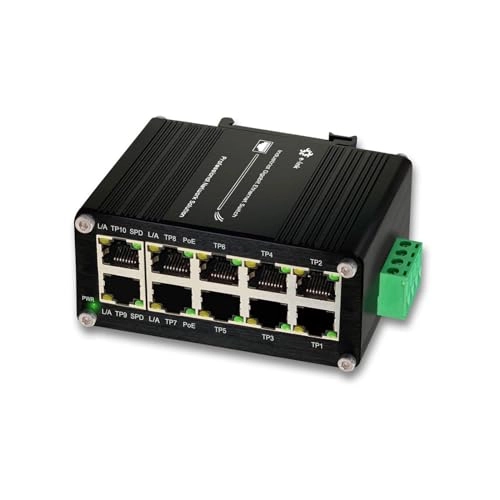

Throncom LNK-IMC010GP 10-Ports

Overview:

Unmanaged Industrial 8-Port 10/100/1000T 802.3at PoE+ 2-Port 10/100/1000T Compact Ethernet Switch is a hardened mini industrial-grade Gigabit Ethernet Switch with 48~57VDC wide range power input and wide operating temperature -40-75℃, IP40-rated rugged but compact-size case. The 10 ports switch is a good choice for an economical solution for industrial Ethernet connections.

Features:

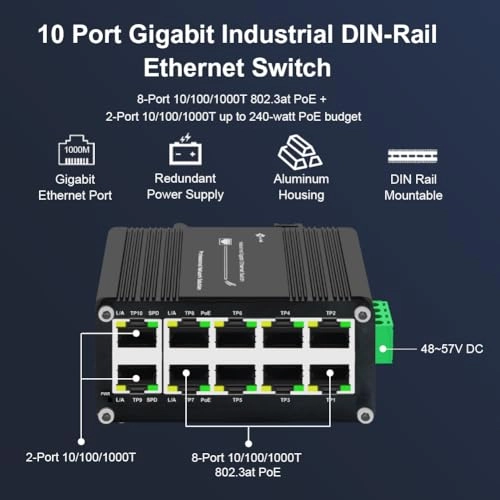

1. 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports with auto-MDI/MDI-X function

2. 8-Port of IEEE 802.3at PoE+, up to 240-watt PoE budget

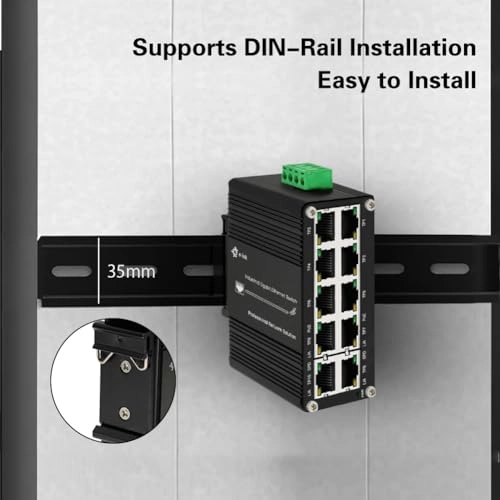

3. 48~57V DC redundant power with reverse polarity protection; Supports DIN-Rail installation

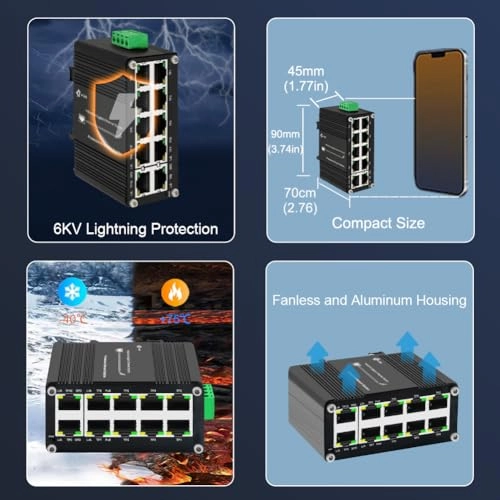

4. Industry standard design, dustproof and close design IP40, rugged high-strength metal case

5. Supports 802.3x Flow control; Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

6. Ultra Small Size & Plug and Play

Note:

If you have any questions or find the switch don’t work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it.

Package:

LNK-IMC010GP PoE Ethernet Switch x 1

Quick Start Guide x 1

DIN-Rail mount bracket x 1
