FanyiTek EJ080NA-05A - 8" 800X600 + VS-TY50-V1 - VGA 2AV

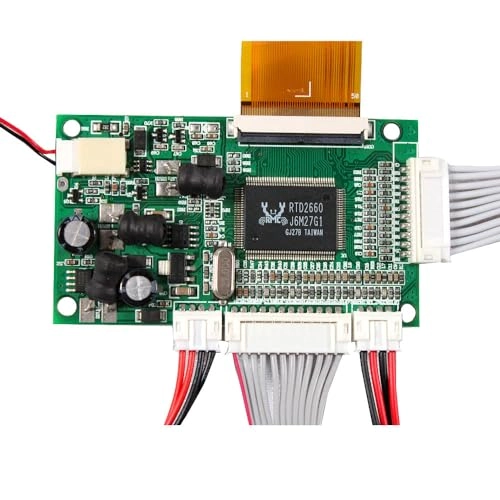

LCD Controller Board:

Input Power Adapter:12Vdc 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:77mm x 45mm x 12mm

8" EJ080NA-05A 800X600 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 800(RGB)×600

Outline Size 183 × 141×5.9 (H×V×D)mm

Display Area 162 × 121.5 (H×V) mm

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

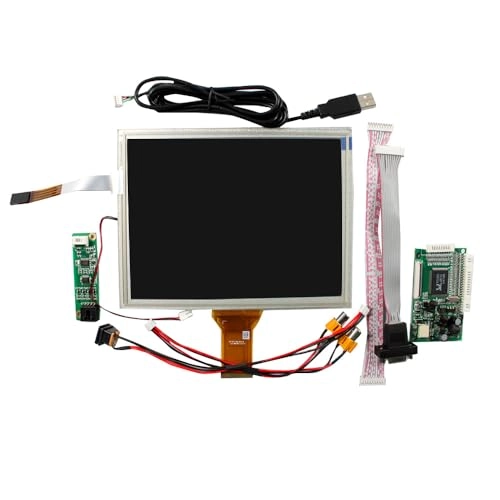

Packing list :

1× VGA+2AV LCD Controller Board VS-TY50-V1

1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel

1× USB Controller Card

1× USB Touch Cable

1x DC Converter cable

1x AV Cconverter cable

1× Keyboard With
