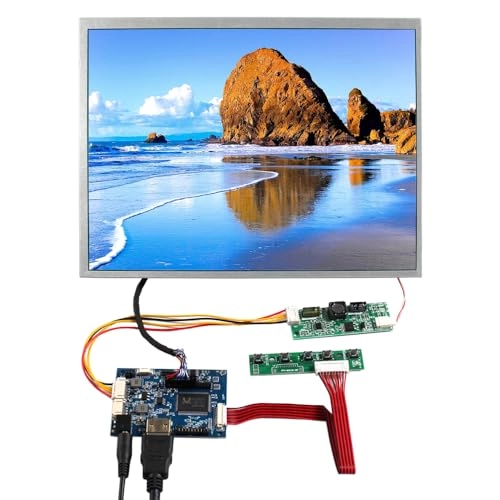

VSDISPLAY VS121T-002A - K003083 12.1" 800x600 + VS-TY2660H-V661 - HD-MI Audio LCD Controller Board

LCD Controller Board:

HD-MI LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.(Please notice that there is no power supply in the package,pls prepare by yourself)

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI

Audio Input: HD-MI

Audio Output: Speaker (4Pin PH1.0 connector)

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

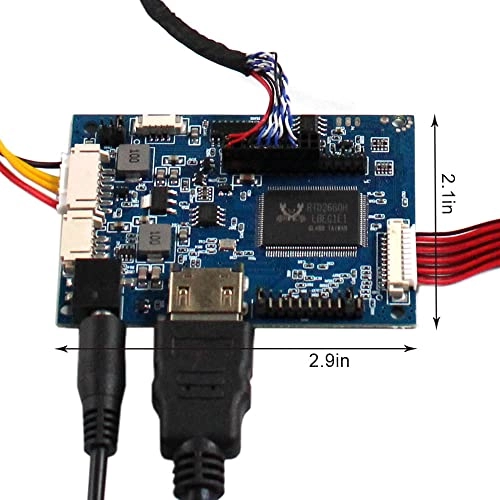

Board Size: 74mm x 53mm x 12mm

12.1" VS121T-002A 800x600 IPS LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 800(RGB)×600

Outline Size 262×202×10mm (H×V×D)

Display Area 245.76× 184.32mm (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal Interface Parallel LVDS (1 ch,6/8-bit),20 pins,

Backlight WLED

Input Voltage 3.3V (Typ.)

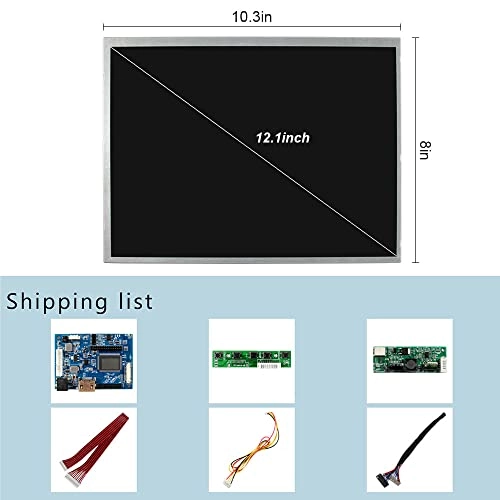

Packing list:

1× HD-MI Audio LCD Controller Board VS-TY2660H-V661

1× 12.1inch VS121T-002A 800x600 IPS LCD Screen

1× LVDS Cable

1× Keyboard With Cable
