VSDISPLAY VS121TC01-B1 - 12.1 Inches 800 x 600

Name: VSDISPLAY VS121TC01-B1 - 12.1 Inches 800 x 600
Brand: VSDISPLAY
SKU: 895268

Best offer

AED

633⁰⁰

Key Features

Resolution: 800 x 600pixels
Aspect ratio: 4:3
HDMI ports quantity: 1
ASIN: B07R6LCKXT
Weight: 500g
Native aspect ratio: 4:3
Display diagonal: 12.1"
Display resolution: 800 x 600pixels

Specifications

Features

Display diagonal

12.10 "

Resolution

800 x 600 pixels

Aspect ratio

4:3

Weight & dimensions

Weight

500 g

Display

Display resolution

800 x 600 pixels

Native aspect ratio

4:3

Ports & interfaces

HDMI ports quantity

Logistics data

ASIN

B07R6LCKXT

Product Details

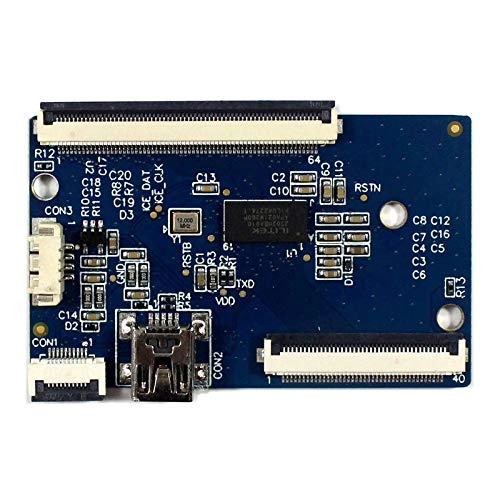

LCD Controller Board: VGA LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 107mm x 52mm x 18mm 12.1" VS121T-001A 1024X768 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 1024RGB)×768 Outline Size 261× 198×5 (H×V×D) Display Area 246 × 184.5 (H×V) Brightness 350 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× VGA LCD Controller Board 1× 12.1inch VS121T-001A 1024x768 LCD Screen 1× LVDS Cable 1× Inverter Board 1× Keyboard With Cable Note:the controller board has updated,the board received will be the new version
