VS-TY2660H-V827 + VS070T-006A - 7 Inches 1024x600 + Keyboard With Cable

FanyiTek VS-TY2660H-V827 + VS070T-006A - 7 Inches 1024x600 + Keyboard With Cable

Unavailable

Key Features

Resolution: 1024 x 600pixels
Weight: 381g
Batteries included: No
Display diagonal: 7"
Display resolution: 1024 x 600pixels

Specifications

Features

Display diagonal

7 "

Resolution

1024 x 600 pixels

Weight & dimensions

Weight

381 g

Display

Display resolution

1024 x 600 pixels

Packaging content

Batteries included

✗

Product Details

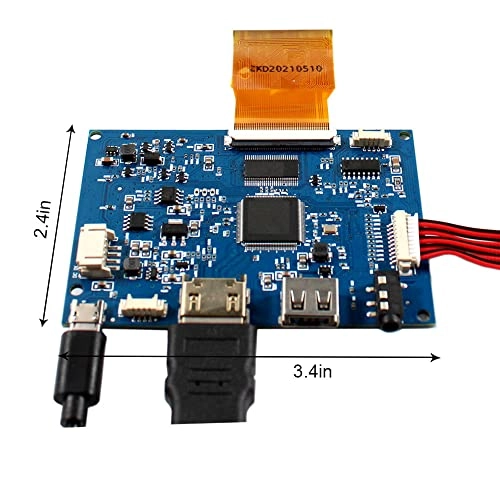

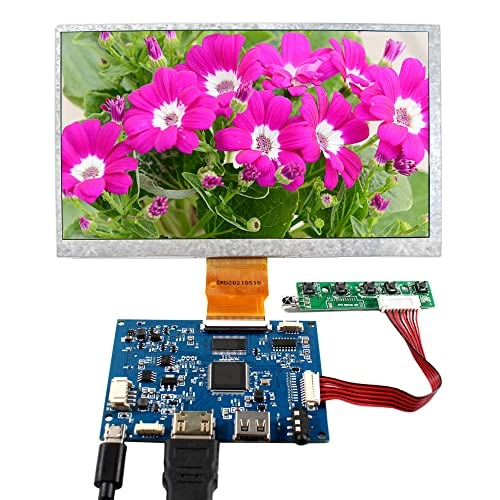

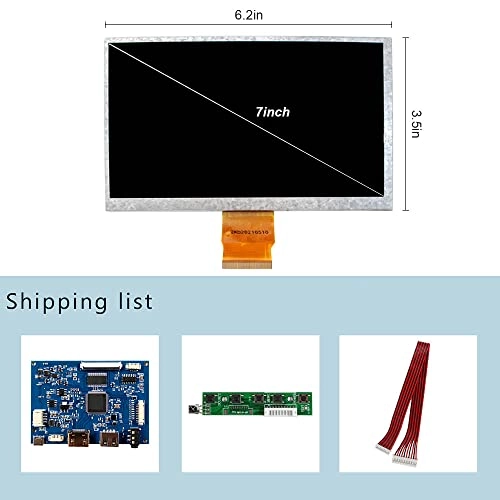

LCD Controller Board: HD-MI USB LCD Board Work for 6.5inch~10.1inch TTL LCD Screen Input Power Adapter: 5dc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HD-MI 1.4 USB USB Port: Support Play Video, USB Output Voltage 5Vdc max 500mA Audio：Speaker 8ohm 2W or 4ohm 2W OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 87.2mm x 61.7mm x 8mm 7" VS070T-006A 1024X600 LCD Screen: Display Mode IPS, Normally White, Transmissive Resolution 1024xRGB)×600 Outline Size 156.7×89.1×5mm (H×V×D) Display Area 154 ×85 (H×V) Brightness 700 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 85/85/85/85(Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× HD-MI USB LCD Controller Board VS-TY2660H-V827 1× 7inch VS070T-006A 700nit high brightness LCD Screen 1× Keyboard With Cable PS: Please make sure use 5Vdc power adapter. More than 5Vdc will damage the board.
