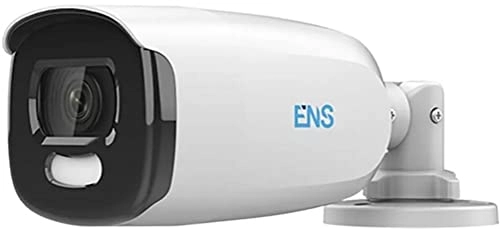

ENS SCC75B4/28-U 5 MP Full Time Color Security Camera, 5MP CMOS Image Sensor, 2560x1944 Resolution, 2.8mm Fixed Lens, Smart Light, Up to 40m White Light Distance, 130dB True WDR, IP67
Key Features
- 5 MP, 2560x1944 resolution
- 24-hour color image
- 130 dB true WDR, 3D DNR
- 2.8 mm fixed focal lens
- Smart Light, up to 40m white light distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
Specifications
- Image Sensor: 5MP CMOS
- Signal System: PAL/NTSC
- Resolution: 2560 (H) x 1944 (V)
- Min. Illumination: 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
- Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
- Shutter Time: PAL: 1/25s to 1/50,000s; 1/30s to 1/50,000s
- Slow Shutter: Max. 16 times
- Lens: 2.8mm fixed
- Horizontal Field of View: 99.7°
- Lens Mount: M16
- Strobe Light Alarm: Yes
- Day & Night: Color
- WDR (Wide Dynamic Range): 130dB
- Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT
- AGC: Yes
- Day/Night Mode: Color
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: WDR/BLC/HLC/Global/HLS/Anti-banding
- Privacy Mask: 4 programmable
- Motion Detection: 4 programmable motion areas
- Noise Reduction: 3D DNR
- Language: English
- Function: Brightness, Mirror, Sharpness, Smart Light
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Operating Condituons -40°C to 60°C, humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
- Power Consumption: Max. 4.9W
- Material: Metal
- Dimensions: 3.25" x 304" x 8.68"
- Weight: Approx. 1.25 lb.
