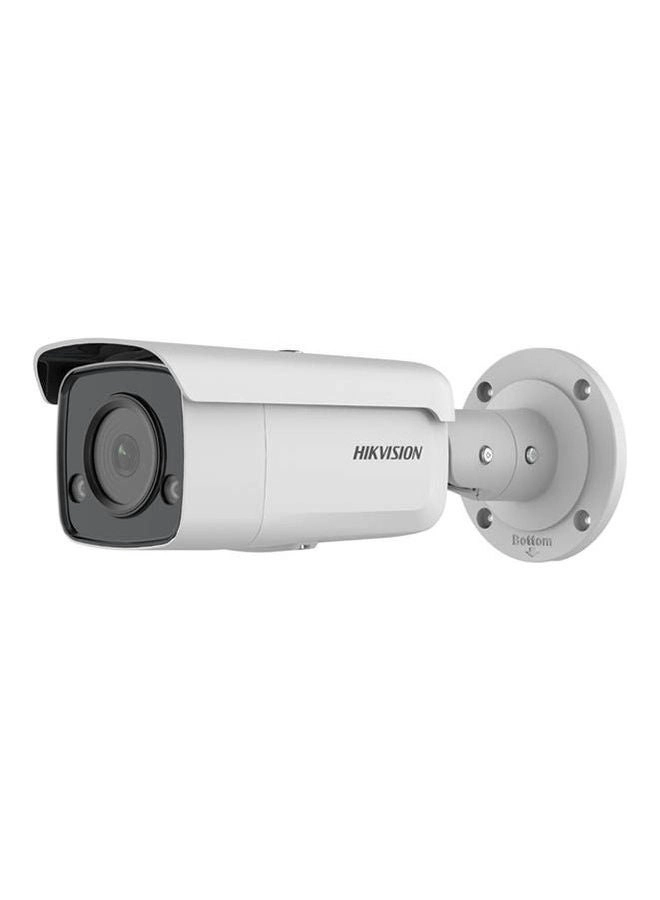

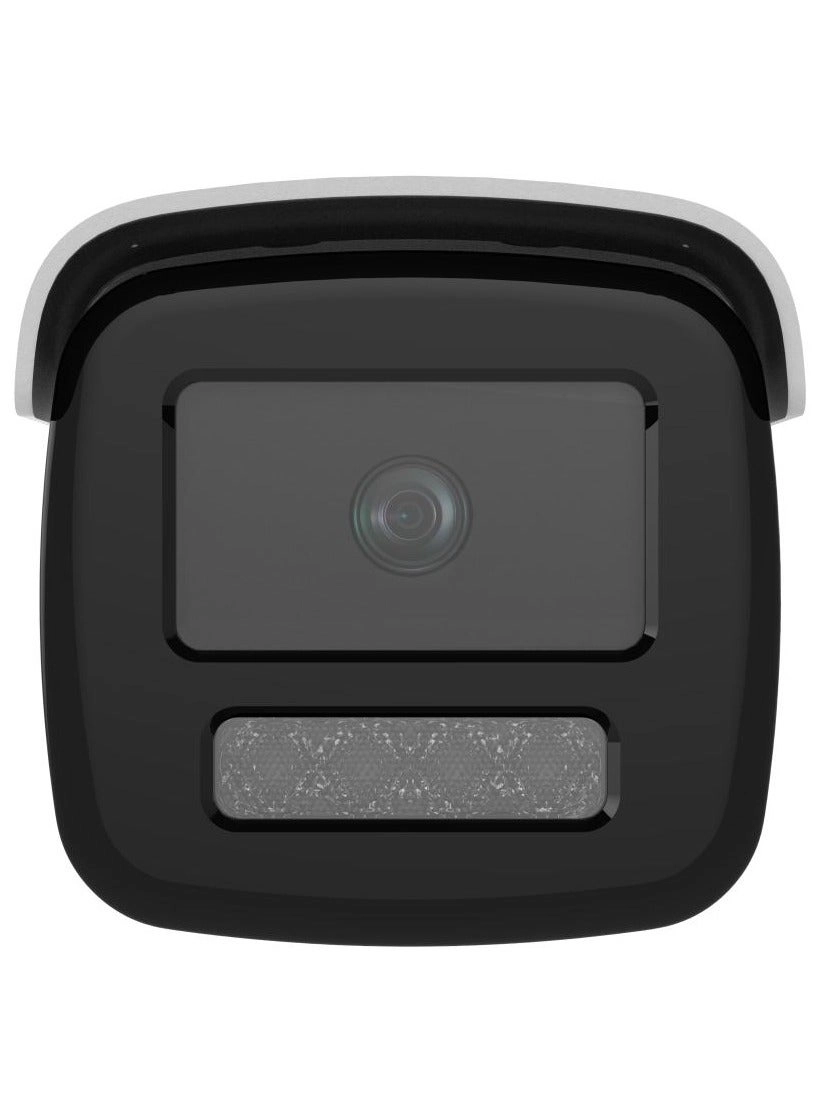

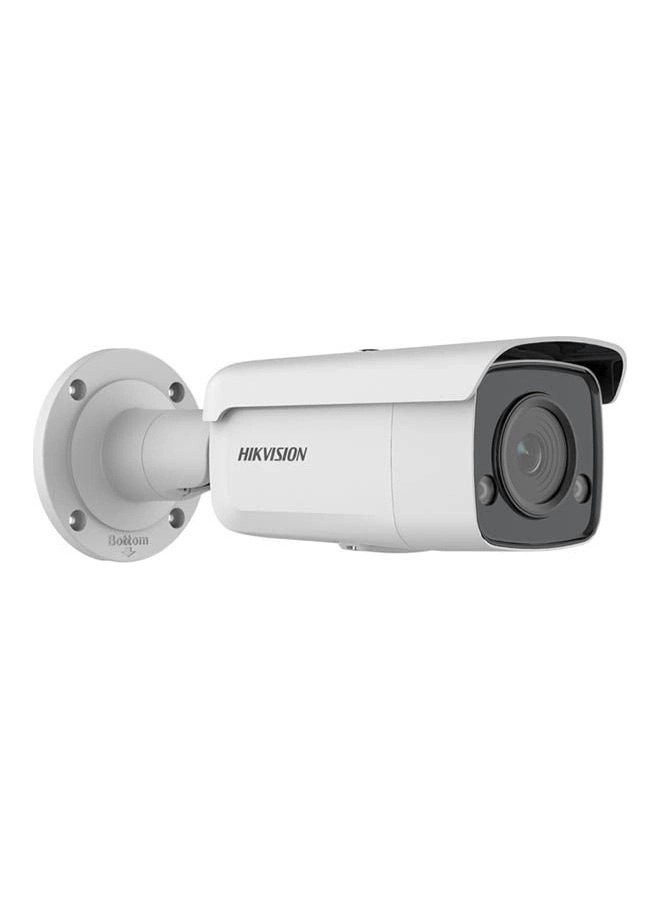

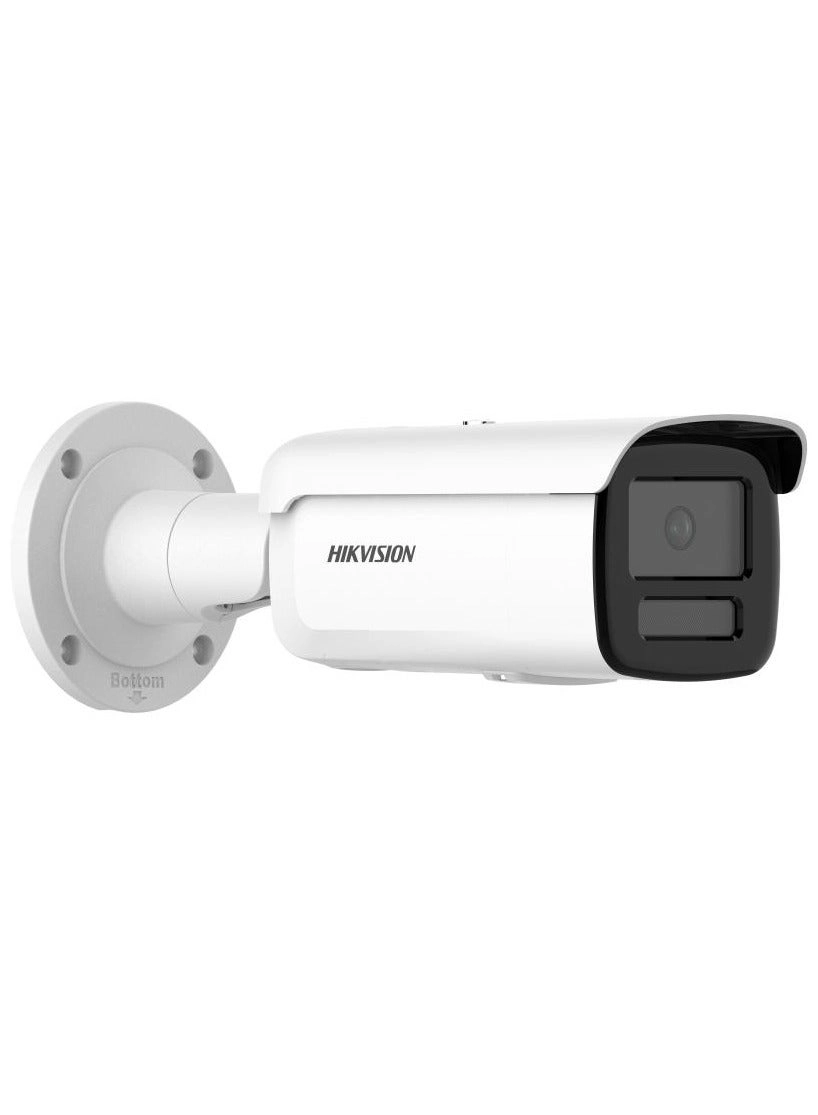

Hikvision DS-2CD2T47G2-L

Name: Hikvision DS-2CD2T47G2-L
Brand: Hikvision
SKU: 356178

Best offer

AED

665⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 61m
Observe distance: 24m
Recognize distance: 12m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 54.4°°
Lens viewing angle, diagonal: 126.7°°
Power consumption (Power over Ethernet (PoE)): 9W
Identify distance: 6m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Fixed focus: Yes
Type: IP security camera

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Water resistant, Waterproof

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS, TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Fixed focus

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Motion sensor

✓

Sample rate

48 kHz

Output impedance

100 Ω

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

22.10 m

Detect distance

61 m

Packaging data

Package weight

1920 g

Package height

155 mm

Package depth

156 mm

Package width

386 mm

Weight & dimensions

Weight

1210 g

Height

91.20 mm

Depth

97.90 mm

Width

93.30 mm

Diameter

105 mm

Length

286.70 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

8 W

DC output current

0.88 A

Power source type

DC output voltage

Power consumption (Power over Ethernet (PoE))

9 W

Performance

Camera pan control

✓

Other features

I/O ports

1x line in, 1x line out

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Metal

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall, Wall

Form factor

Bullet

Built-in light

✓

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x

Supported network protocols

802.1X, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP, SRTP, SSL/TLS, TCP/IP, UDP, UPnP, WebSocket, WebSockets, Websocket, Websockets

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

CB: IEC 62368-1: 2014+A11, CE-EMC: EN 55032: 2015, CE-LVD: EN 62368-1: 2014/A11: 2017, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, EN 50130-4: 2011 +A1: 2014, EN 50130-4: 2011 +A1: 2014, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, FCC: 47 CFR Part 15, IC: ICES-003: Issue 7, IC: ICES-003: Issue 7 UL: UL 62368-1, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, RCM: AS/NZS CISPR 32: 2015, Reach: Regulation (EC) No 1907/2006, Subpart B, WEEE: 2012/19/EU

Anti-flicker

✓

Compliance certificates

BIS, CB, CE, Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, RoHS, UL

Audio

Audio system

2-way

Built-in speaker(s)

✓

Lens system

Lens mount interface

M12

Maximum aperture number

Iris

✓

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

110.40 m

Observe distance (wide)

43.80 m

Identify distance (wide)

11 m

Identify distance

6 m

Noise reduction technology

3D noise reduction

Recognize distance

12 m

Observe distance

24 m

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, DNR, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Network access storage (NAS)

✓

Password reset via email

✓

Pixel counter

✓

Flash log

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.8 - 12 mm

Bit rate

32 Kbps - 8 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Human and vehicle targets classification

✓

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Scene change

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

126.7°

Lens viewing angle, vertical

54.4°

Camera tilt control

✓

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Dynamic range

130 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

60 m

Infra-red wavelength

850 nm

Product Details

4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

Hikvision AcuSense technology

Integrated with automatic triggering, Hikvision AcuSense Technology takes alarm accuracy and search efficiency to a whole new level.

Deep Learning Algorithm

The Magic Behind It All As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Human and Vehicle Intrusion

Spotlights the Events that Matter The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Accurate Alarm for Human and Vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Visual and Auditory Warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.
