Camera Image Sensor: 1/2.8" Progressive Scan CMOS
Max Resolution: 3840 × 2160
Min Illumination:
- Color: 0.005 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
Angle Adjustment:
- Pan: 0° to 355°
- Tilt: 0° to 75°
- Rotate: 0° to 355°
Lens Type: Fixed focal lens (2.8 mm and 4 mm options)
Focal Length & FOV:
- 2.8 mm → Horizontal: 108°, Vertical: 59°, Diagonal: 127°
- 4 mm → Horizontal: 88°, Vertical: 44°, Diagonal: 105°
- Lens Mount: M12
- Aperture: Fixed F1.6
- Depth of Field:
- 2.8 mm → 1.7 m to ∞
- 4 mm → 2.6 m to ∞
DORI (Detection, Observation, Recognition, Identification):
- 2.8 mm → D: 84 m, O: 33 m, R: 16 m, I: 8 m
- 4 mm → D: 117 m, O: 46 m, R: 23 m, I: 11 m
Illuminator: IR and White Light
Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video:
- Main Stream:
- 50 Hz → 20 fps (3840 × 2160), 25 fps (3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720)
- 60 Hz → 20 fps (3840 × 2160), 30 fps (3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720)
- Sub-Stream:
- 50 Hz → 25 fps (1280 × 720 / 640 × 480 / 640 × 360)
- 60 Hz → 30 fps (1280 × 720 / 640 × 480 / 640 × 360)
- Third Stream:
- 50 Hz → 10 fps (1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360)
- 60 Hz → 10 fps (1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360)
- Supported under certain settings
Video Compression: H.265 / H.264 / H.264+ / H.265+

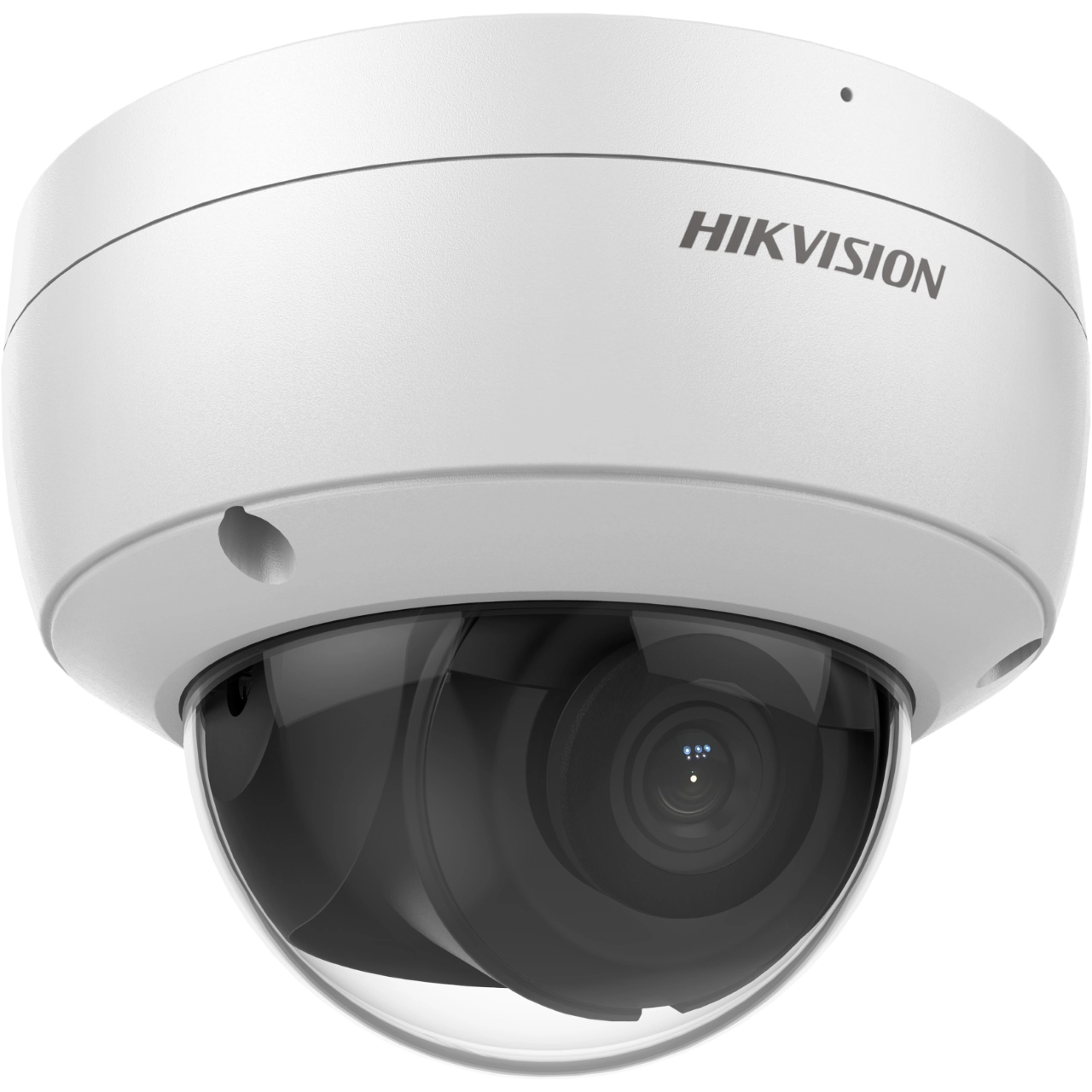

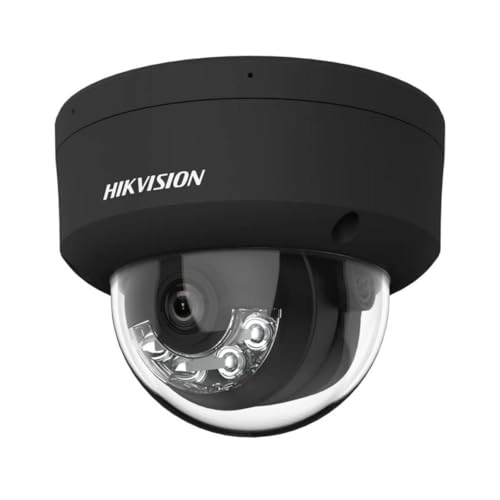

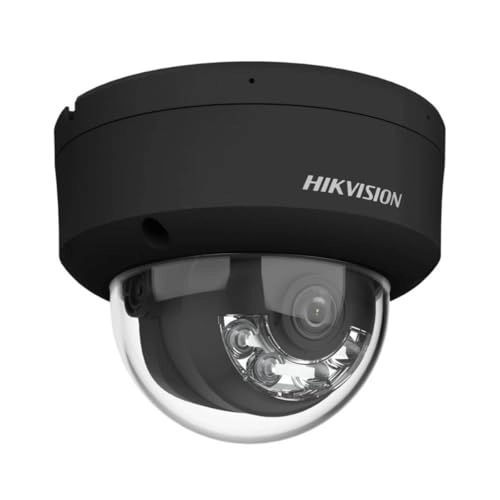

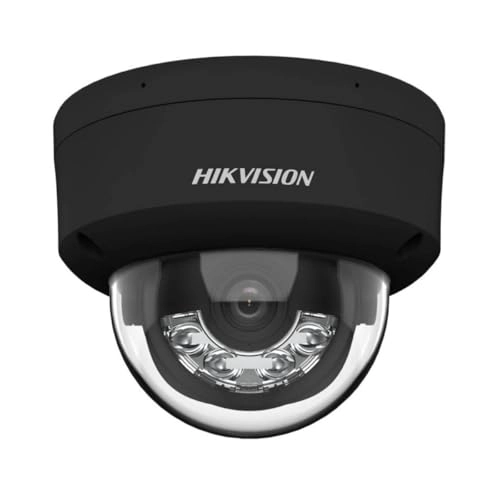

Model: Hikvision 8 MP AcuSense Smart Hybrid Light Fixed Dome Network Camera
Mbps: Supported
H.264 Type: Baseline / Main / High Profile
H.265 Type: Main Profile
SVC (Scalable Video Coding): H.264 and H.265 encoding
Bit Rate Control: CBR, VBR
ROI: 1 fixed region for main and sub-stream
Target Cropping: Yes
Audio (-2U):
- Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Bit Rate:
- 64 Kbps (G.711ulaw / G.711alaw)
- 16 Kbps (G.722.1)
- 16 Kbps (G.726)
- 32 to 160 Kbps (MP2L2)
- 8 to 320 Kbps (MP3)
- 16 to 64 Kbps (AAC-LC)
- Sampling Rate: 8 kHz / 16 kHz
