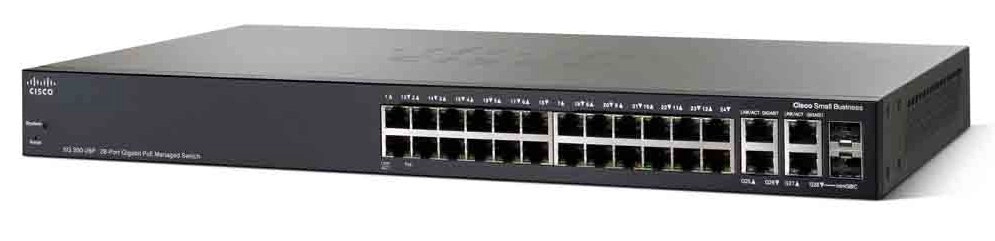

Cisco SG350-28MP - 28-ports
Best offer
AED
6 50079
Key Features
- Switch layer: L2/L3, L3
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Throughput: 41.67Mpps
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
- Uplink ports quantity: 4
- Number of queues: 8
- Number of static routes: 512
- Number of IP interfaces: 128
- Static route: Yes
- Number of multicast groups filtered: 1000
- Gigabit Ethernet (copper) ports quantity: 24
- Port mirroring: Yes
- Jumbo frames: 9216
- Queue scheduling algorithms: WRR+SP
Specifications
Features
Country of origin
China
Mean time between failures (MTBF)
213373 h
Internal memory
256 MB
Processor frequency
800 MHz
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, SNMP, SSH-2, SSL/TLS
Rack mounting
✓
Noise level
47.90 dB
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Product colour
Black
Packet buffer memory
12 MB
Queue scheduling algorithms
WRR+SP
Telnet
✓
Access Control List (ACL)
✓
Access Control List (ACL) rules
512
Switching capacity
56 Gbit/s
MAC address table
16384 entries
Authentication type
IEEE 802.1x, RADIUS
Jumbo frames support
✓
Forwarding rate
41.66 Mpps
Multicast support
✓
Static route
✓
Switch layer
L2/L3, L3
Packaging data
Package weight
3990 g
Package height
108 mm
Package depth
545.10 mm
Package width
388.10 mm
Weight & dimensions
Weight
3370 g
Height
44 mm
Depth
440 mm
Width
257 mm
Management features
Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Number of multicast groups filtered
1000
Power
Power plug type
Type C
Power consumption (typical)
42.10 W
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Power consumption (max)
19.90 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
382 W
Power saving mode (EEE)
✓
Number of power supply units
1
Wireless LAN features
IGMP snooping
✓
Design
Reset button
✓
LED indicators
Yes
Form factor
1U
Computer system
Built-in processor
✓
Packaging content
Packaging content
Rubber feet
Quick start guide
✓
Cables included
AC
Power supply included
✓
Mounting bracket(s) included
✓
Rack mount kit
✓
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
2, 3, HTTP/HTTPS, IPv4/IPv6, MIB, RMON, SNMP v1, SNMP v1/2c/3
VLAN support
✓
Number of VLANs
4096
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
10G support
✗
Link aggregation
✓
Jumbo frames
9216
Port mirroring
✓
Ports & interfaces
Power over Ethernet (PoE) ports quantity
24
Fiber optic connector
SFP
SFP module slots quantity
2
Cable types supported
Cat5, Cat6, Cat7
USB 2.0 ports quantity
1
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
24
Uplink ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
214.20 BTU/h
Technical details
Certification
CE, CE mark, CSA (CSA 22.2), FCC 15 (CFR 47), FCC Part 15 (CFR 47) Class A, UL (UL 60950)
Switch type
Managed
Memory
Flash memory
32 MB
Protocols
IPv4 & IPv6 features
IPv6 First Hop Security (FHS)
GARP VLAN Registration Protocol (GVRP)
✓
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)
✓
Data transmission
Number of IP interfaces
128
Number of static routes
512
Number of queues
8
Throughput
41.67 Mpps
Security
MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Loop protection
✓
BPDU filtering/protection
✓
DoS attack prevention
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication, Web-based authentication
Root protection
✓
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping
Logistics data
Harmonized System (HS) code
85176990
Product Details
0 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 350 Series provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
The Cisco 350 Series is a broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 48 ports of Fast Ethernet and 10 to 28 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 350 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
Business Applications
Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 350 Series offers a solution to meet your needs. Possible deployment scenarios include:
- Secure desktop connectivity: Cisco 350 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
- Secure wireless connectivity: With its advanced security features, Power over Ethernet, Auto Smartports, QoS, VLAN, and access control features, the Cisco 350 Series Switches are the perfect foundation to add business-grade wireless to a business network.
- Unified communications: As a managed network solution, the Cisco 350 Series provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. Cisco 350 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution.
- Highly secure guest connectivity. Cisco 350 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.
Features and Benefits
Cisco 350 Series switches provide the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits.
Easy Deployment and Use
Cisco 350 Series switches are designed to be easy to use and manage by commercial customers or the partners that serve them. They feature:
- Simple-to-use graphical interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
- The switches also support Textview, a full command-line interface (CLI) option for partners that prefer it.
- Using Auto Smartports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, quality of service (QoS), and availability on that port.
- Cisco Discovery Protocol discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
- Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
- The Cisco FindIT utility, which works through a simple toolbar on the user’s web browser, discovers Cisco devices in the network and displays basic information, such as serial numbers and IP addresses, to aid in configuration and deployment.
