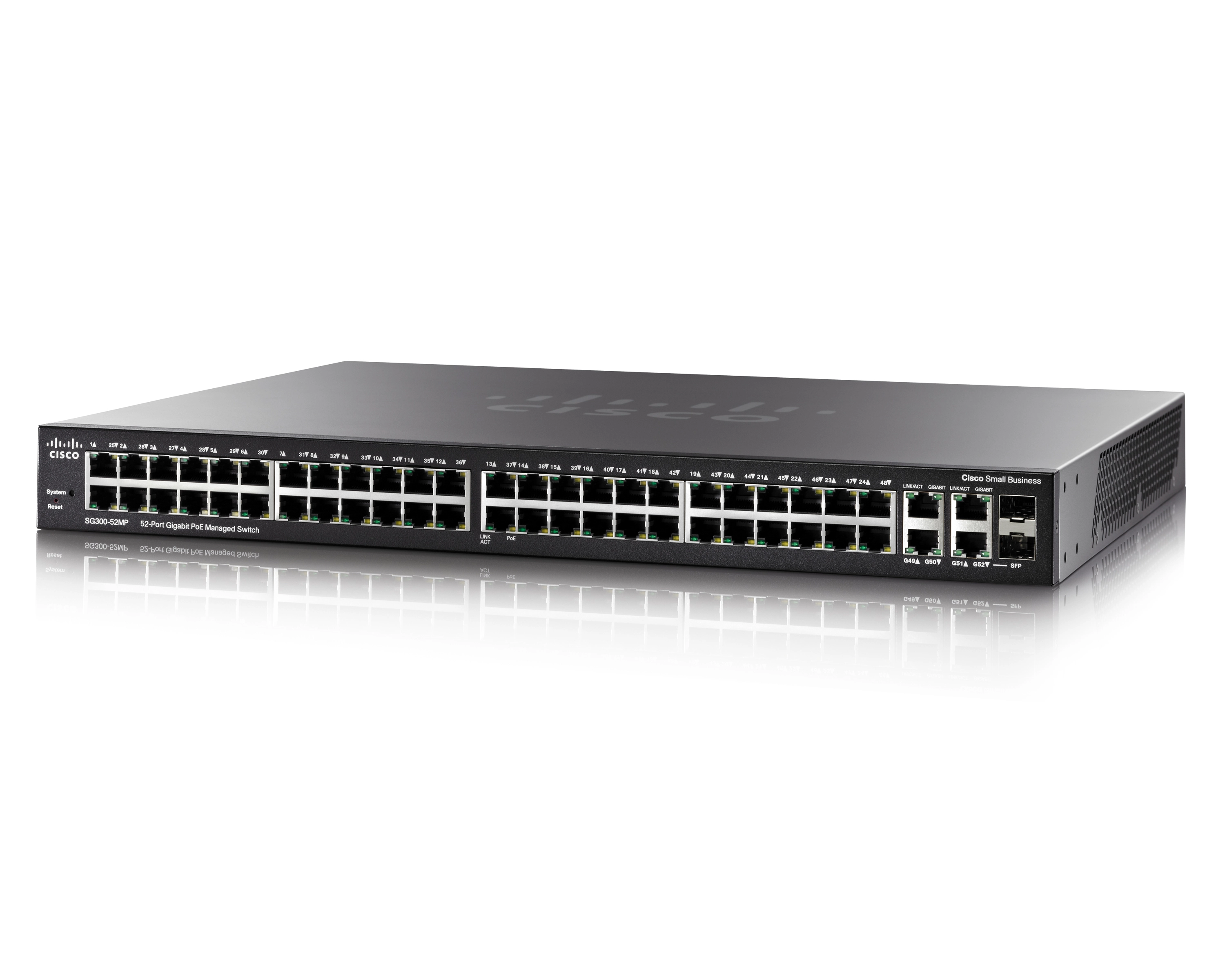

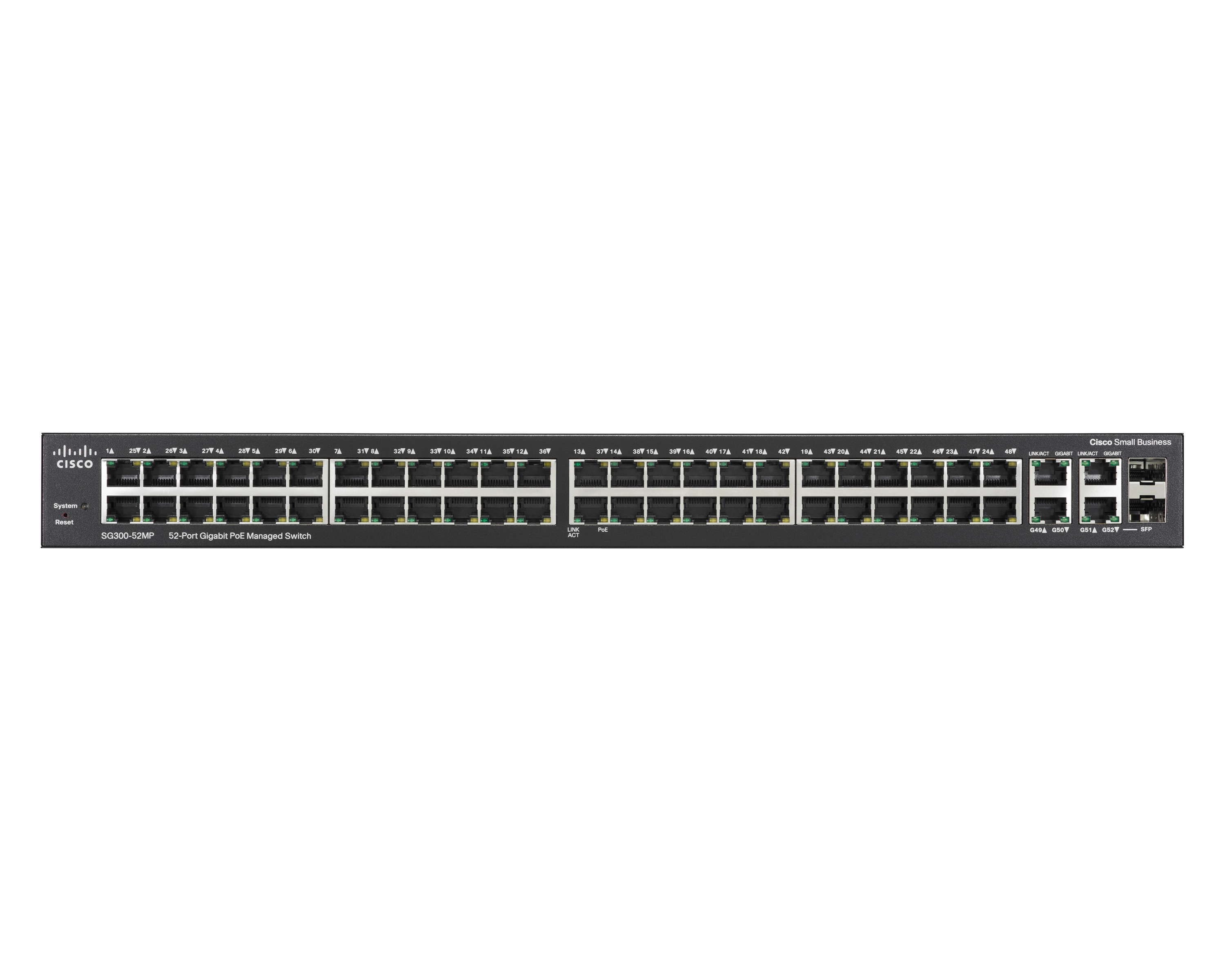

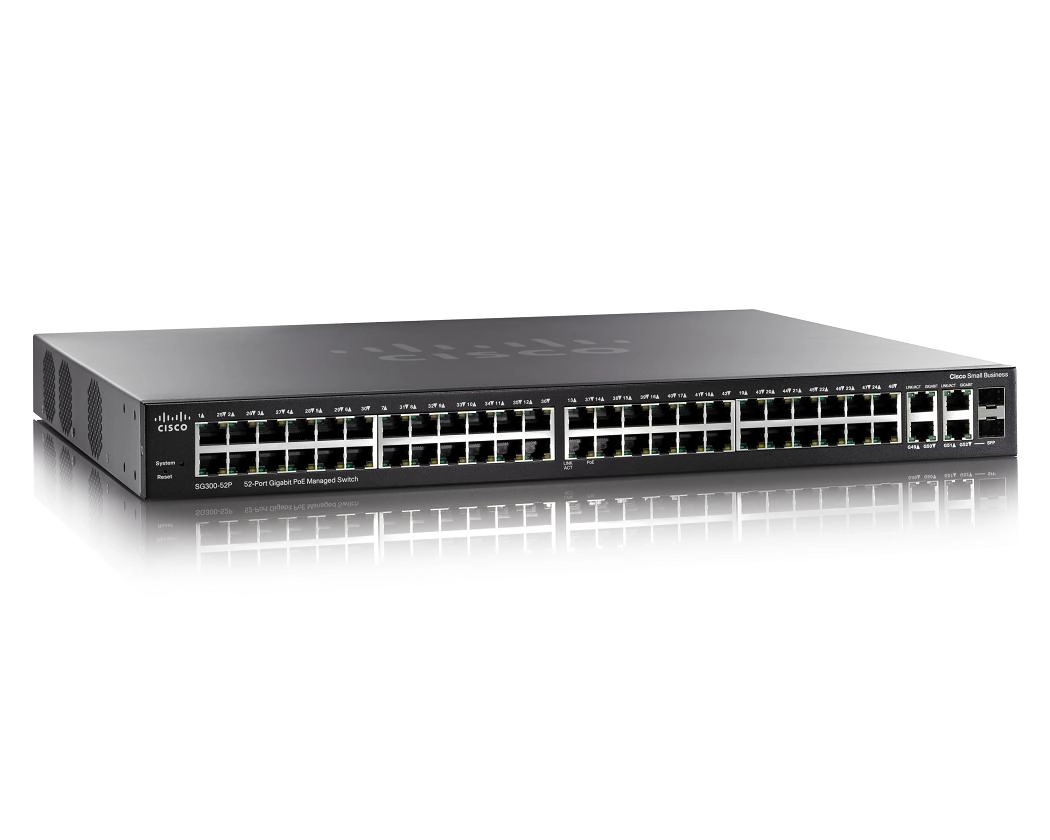

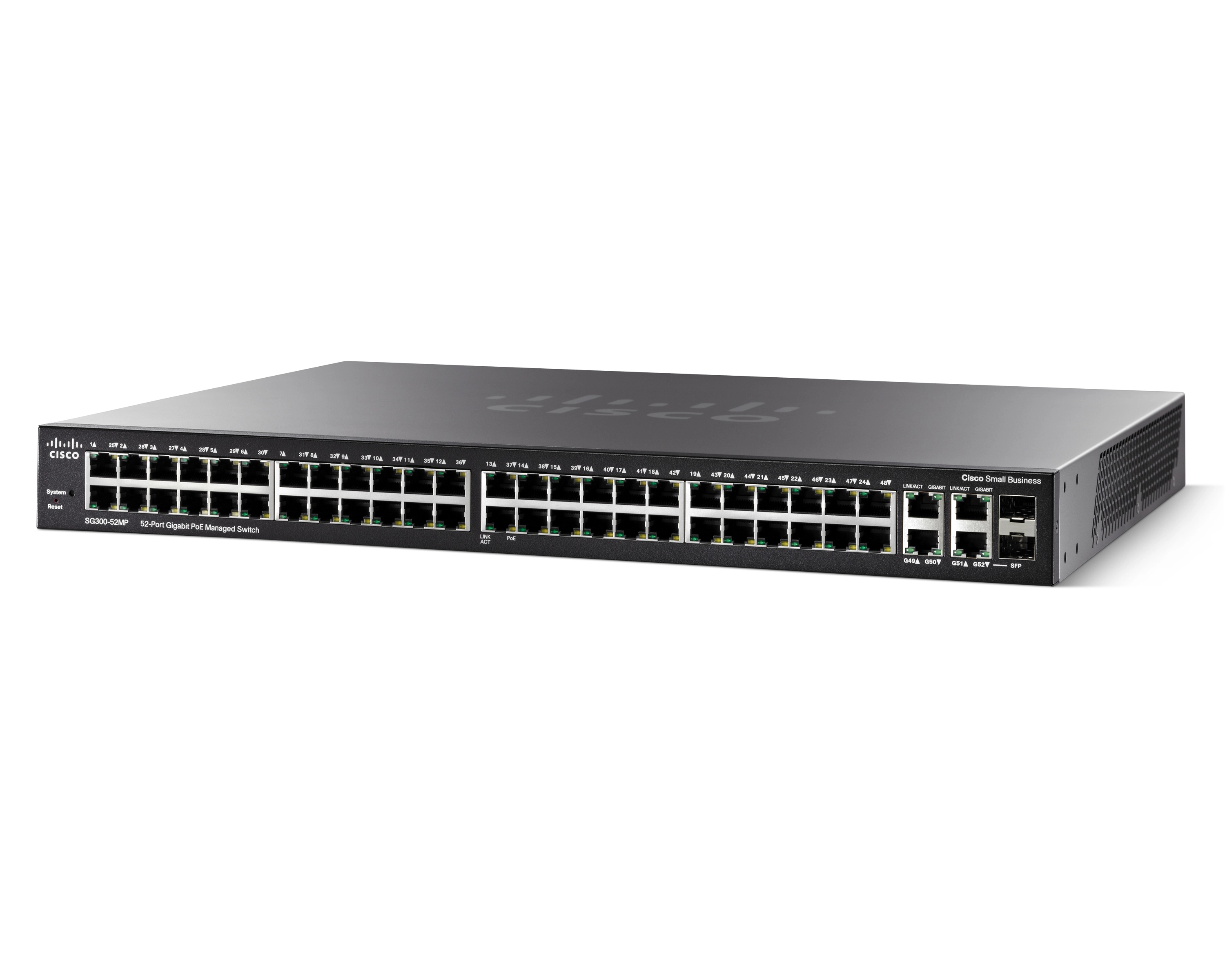

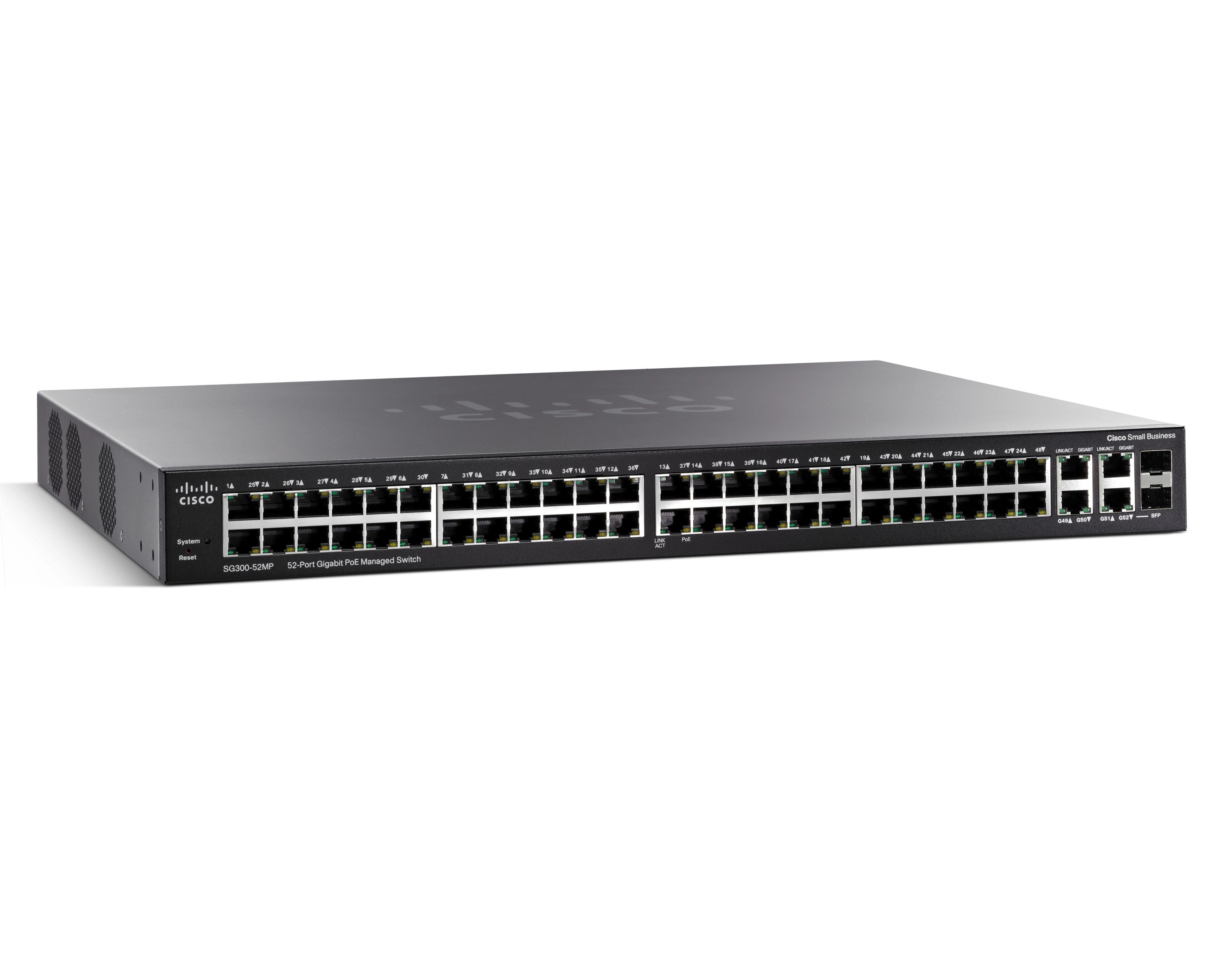

Cisco SG300-52MP - 52-Ports
Best offer
AED
5 39900
Key Features
- Switch layer: L2/L3, L3
- Basic switching RJ-45 Ethernet ports quantity: 50
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Throughput: 77.38Mpps
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
- Uplink ports quantity: 4
- Number of queues: 4
- Number of static routes: 512
- Number of IP interfaces: 128
- Static route: Yes
- Gigabit Ethernet (copper) ports quantity: 48
- Port mirroring: Yes
- Power over Ethernet plus (PoE+) ports quantity: 48
- IP routing: Yes
- Jumbo frames: 9216
Specifications
Features
Country of origin
China
Mean time between failures (MTBF)
117130 h
Compatible operating systems
Linux, Mac OS X, Microsoft Windows
Internal memory
128 MB
MIB support
Y
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, HTTPS, SNMP, SSH, SSH-2, SSL/TLS
Rack mounting
✓
Noise level
47.40 dB
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Product colour
Black
Packet buffer memory
16 MB
Queue scheduling algorithms
WRR+SP
Maximum data transfer rate
1 Gbit/s
Telnet
✓
Access Control List (ACL)
✓
Access Control List (ACL) rules
512
Switching capacity
104 Gbit/s
MAC address table
16384 entries
Authentication type
IEEE 802.1x, RADIUS
Jumbo frames support
✓
Forwarding rate
77.38 Mpps
Multicast support
✓
Static route
✓
Switch layer
L2/L3, L3
Packaging data
Package weight
7290 g
Package height
108 mm
Package depth
545.10 mm
Package width
476 mm
Weight & dimensions
Weight
5320 g
Height
44.50 mm
Depth
350 mm
Width
440 mm
Management features
Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Power
Power plug type
Type C
Power consumption (typical)
68.80 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
843.57 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
740 W
Power saving mode (EEE)
✓
Number of power supply units
1
Wireless LAN features
IGMP snooping
✓
Other features
Supported data transfer rates
10/100/1000 Mbit/s
Packet transfer speed
77380000
Design
Reset button
✓
LED indicators
Activity, Link, PoE, Power, Yes
Form factor
1U
Computer system
Built-in processor
✓
Packaging content
Packaging content
Rubber feet
User guide
✓
Quick start guide
✓
Manual
✓
Cables included
AC, Serial
Power supply included
✓
Rack mount kit
✓
Network
Switching protocols
GARP
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocols
BPDU, Bonjour, HTTP/HTTPS, IPSG, IPv4/v6, SNTP, SSH, TCP/IP, TFTP, UDP
Management protocols
2, 2c, 3, IGMP v1, LACP, SNMP 1, SNMP v1
VLAN support
✓
Number of VLANs
4096
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
10G support
✗
Link aggregation
✓
Jumbo frames
9216
Port mirroring
✓
Ports & interfaces
Power over Ethernet (PoE) ports quantity
48
Fiber optic connector
SFP
SFP module slots quantity
2
SFP/SFP+ slots quantity
2
Cable types supported
Cat5, Cat6, Cat7
Console port
RJ-45
USB 2.0 ports quantity
1
Combo SFP ports quantity
2
Power over Ethernet plus (PoE+) ports quantity
48
Gigabit Ethernet (copper) ports quantity
48
Uplink ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
50
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
2978.85 BTU/h
Technical details
Certification
CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)
Switch type
Managed
Memory
Flash memory
16 MB
Protocols
IPv4 & IPv6 features
IPv6 First Hop Security (FHS)
GARP VLAN Registration Protocol (GVRP)
✓
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)
✓
Data transmission
Number of IP interfaces
128
Number of static routes
512
Number of queues
4
Throughput
77.38 Mpps
Security
MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Loop protection
✓
BPDU filtering/protection
✓
DoS attack prevention
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Web-based authentication
Root protection
✓
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping
Ethernet LAN features
IP routing
✓
Product Details
Easy-to-Use Managed Switches that Provide the Ideal Combination of Features and Affordability
To stay ahead in a competitive marketplace, small businesses need to make every dollar count. That means getting the most value from your technology investments, but it also means making sure that employees have fast, reliable access to the business tools and information they need. Every minute an employee waits for an unresponsive application - and every minute your network is down - has an impact on your bottom line. The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity.
When your business needs advanced security and features but value is still a top consideration, you're ready for the new generation of Cisco® Small Business managed switches: the Cisco 300 Series.
Cisco 300 Series Switches
The Cisco 300 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 300 Series provides the ideal combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce.
The Cisco 300 Series is broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 300 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
Business Applications
Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 300 Series offers a solution to meet your needs. Possible deployment scenarios include:
- Secure desktop connectivity: Cisco 300 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity helps speed file transfers and data processing, improves network uptime, and keeps your employees connected and productive.
- Secure Wireless connectivity: With its advanced Security features, Power over Ethernet, Auto Smartports, QoS, VLAN and Access Control features, the Cisco 300 Series Switches are the perfect foundation to add Business Grade wireless to an SMB network.
- Unified communications: As a managed network solution, the Cisco 300 Series provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco 300 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete small business solution.
- Highly secure guest connectivity. Cisco 300 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests' network sessions private from each other.
Files
Product Brochure
mmo_17682055_1487087102_4646_3505.pdf
PDF• 1.4 MB
Cisco 300 Series Managed Switches Administration Guide Release 1.4.0
mmo_17682055_1487087639_0528_14083.pdf
PDF• 5.5 MB
Cisco 300 Series Managed Switches Quick Start Guide (English)
mmo_17682055_1487087663_9452_4063.pdf
PDF• 691.7 KB
Open Source Used in Cisco 300 Series Switches Release 1.4.2.x
mmo_17682055_1487087703_4263_29957.pdf
PDF• 787.7 KB
User manual
mmo_44556408_1546957080_2157_17197.pdf
PDF• 9.8 MB
