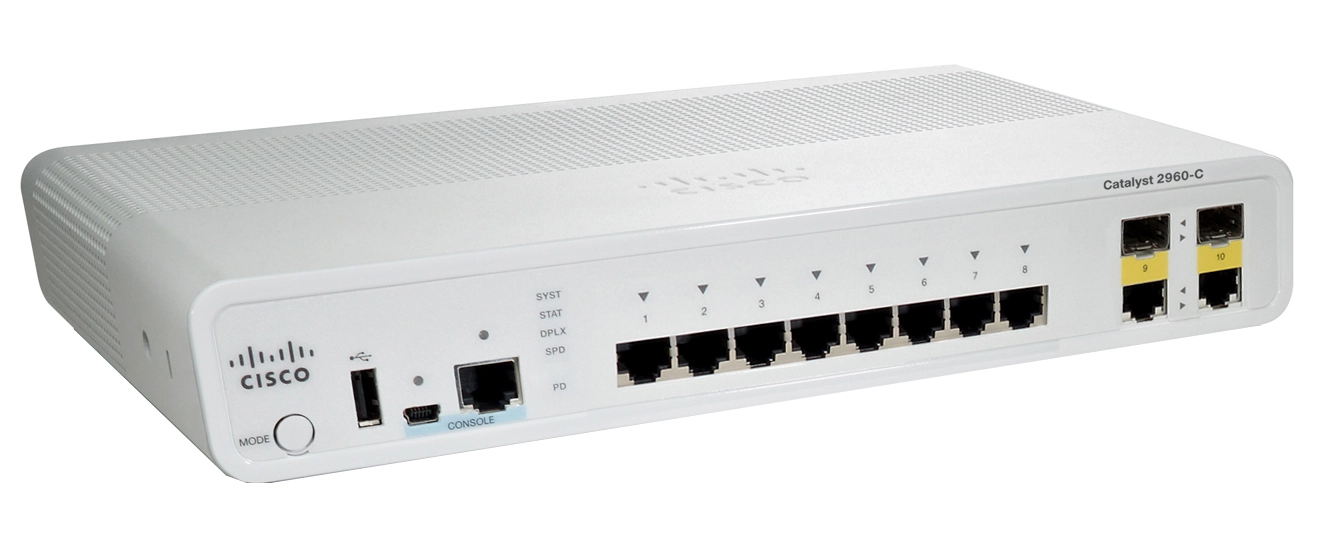

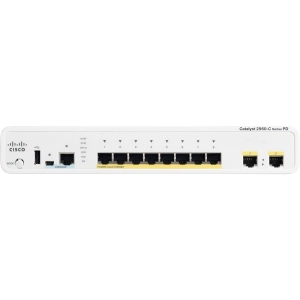

Cisco WS-C2960C-8TC-L 8-Ports

Best offer
AED
3 28532

Key Features

  • Switch layer: L2, L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Throughput: 3.8Mpps
  • DHCP features: DHCP client, DHCP server, DHCP snooping
  • Gigabit Ethernet (copper) ports quantity: 2
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • IP routing: Yes
  • Routing entries: 4000
  • Jumbo frames: 9198
  • Power LED: Yes
  • SFP+ module slots quantity: 2
  • Maximum data transfer rate: 13.2Gbit/s
  • Access Control List (ACL): Yes
  • Traffic classification: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
542482 h
Safety
CE
Electromagnetic compatibility
47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, CNS13438 Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, ICES003 Class A, KN22 Class A, VCCI Class A
Market segment
Business
Internal memory
128 MB
Processor frequency
800 MHz
MIB support
IF-MIB
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, SNMP, SSH
Rack mounting
✗
Stackable
✗
Operating temperature (T-T)
23 - 104 °F
Connectivity technology
Wired
Virtual LAN features
Private VLAN
Fiber type
Multi-mode
Product colour
White
Power LED
✓
SFP+ module slots quantity
2
Maximum data transfer rate
13.20 Gbit/s
Access Control List (ACL)
✓
Traffic classification
✓
Switching capacity
20 Gbit/s
Full duplex
✓
MAC address table
8000 entries
Wavelength
1610 nm
Bandwidth
10 Gbit/s
Authentication type
IEEE 802.1x
Jumbo frames support
✓
Forwarding rate
17.90 Mpps
Multicast support
✓
Routing entries
4000
Switch layer
L2, L2/L3

Packaging data

Package weight
3830 g
Package height
160.30 mm
Package depth
349.20 mm
Package width
327.70 mm

Weight & dimensions

Weight
1860 g
Height
44.40 mm
Depth
213 mm
Width
269 mm

Management features

Web-based management
✓
System event log
✓
ARP inspection
✓

Power

Power connector
DC-in jack
Power plug type
Type C
Power consumption (typical)
11 W
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.15 - 0.3 A
Power over Ethernet (PoE)
✗
Input frequency
50/60 Hz
Input voltage
100 - 240 V
Total Power over Ethernet (PoE) budget
124 W

Wireless LAN features

IGMP snooping
✓

Other features

Dimensions (WxDxH)
269 x 213 x 44.40 mm
Supported data transfer rates
10/100/1000 Mbps
Networking features
Gigabit Ethernet

Design

LED indicators
Activity, LAN, Link, PoE, Power, Speed, System, Yes
Form factor
1U

Computer system

Built-in processor
✓

Packaging content

Packaging content
1 printed document
Power supply included
✓

Network

Data link protocols
FTP, IP, TCP, TFTP, UDP
Switching protocols
IPv6
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocols
ARP, BOOTP, DHCP, FTP, ICMP, IP, IPv6, NTP, OSPF, OSPFv2, TCP, TFTP, Telnet, UDP
Management protocols
HTTP, IGMP, IPv4, IPv6 MLD v1/v2, LLDP, NTP, RADIUS, RIP, RMON, SNMP, SNMP v3, SNMPv1/v2c/v3, SNMPv3, TACACS+, Telnet
VLAN support
✓
Number of VLANs
255
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Rate limiting
✓
Flow control support
✓
Fiber ethernet cabling technology
1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX, 100BASE-BX, 100BASE-FX, 100BASE-LX
Copper ethernet cabling technology
1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
10G support
✗
Link aggregation
✓
Jumbo frames
9198

Ports & interfaces

Power over Ethernet (PoE) ports quantity
8
Fiber optic connector
LC
SFP module slots quantity
2
Console port
RJ-45, RS-232
USB 2.0 ports quantity
2
Combo SFP ports quantity
2
Power over Ethernet plus (PoE+) ports quantity
8
Gigabit Ethernet (copper) ports quantity
2
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
8

Operational conditions

Operating altitude (imperial)
0 - 3048 m
Operating relative humidity (H-H)
5 - 95 %
Non-operating altitude
0 - 4000 m
Operating altitude
0 - 3048 m
Storage relative humidity (H-H)
5 - 95 %
Heat dissipation
60 BTU/h

Technical details

Certification
ANATEL, AS/NZS, AS/NZS A, CCC, CE, CE marking, CFR 47, CFR 47 A, CISPR22:2004, CLEI, EN, EN 55022, EN 55022 (CISPR22), EN 55024, EN 55024 (CISPR24), EN55022, FCC, FCC 15, GOST, KCC, KCC A, KN24/KN22, ROHS, RoHs 6, V-3/2007.04, VCCI, VCCI A
Switch type
Managed

Memory

Flash memory
64 MB

Data transmission

Throughput
3.80 Mpps

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
BPDU filtering/protection
✓
Authentication
MAC-based authentication, Web-based authentication
DHCP features
DHCP client, DHCP server, DHCP snooping

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DRAM

Product Details

Catalyst 2960-C Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging. Cisco Catalyst 2960-C Series Compact Switche highlights: - Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet; - Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints; - Power over Ethernet (PoE) pass-through enables the compact switch to draw power from the wiring closet and pass it to end devices; - Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging; - Easy to deploy, manage and extend the network loop free; - Enhanced limited lifetime hardware warranty.

Files

Product Brochure

mmo_26094407_1470142439_8428_26621.pdf

PDF• 810.9 KB

User manual

mmo_33369028_1487085877_8267_4061.pdf

PDF• 2.6 MB
