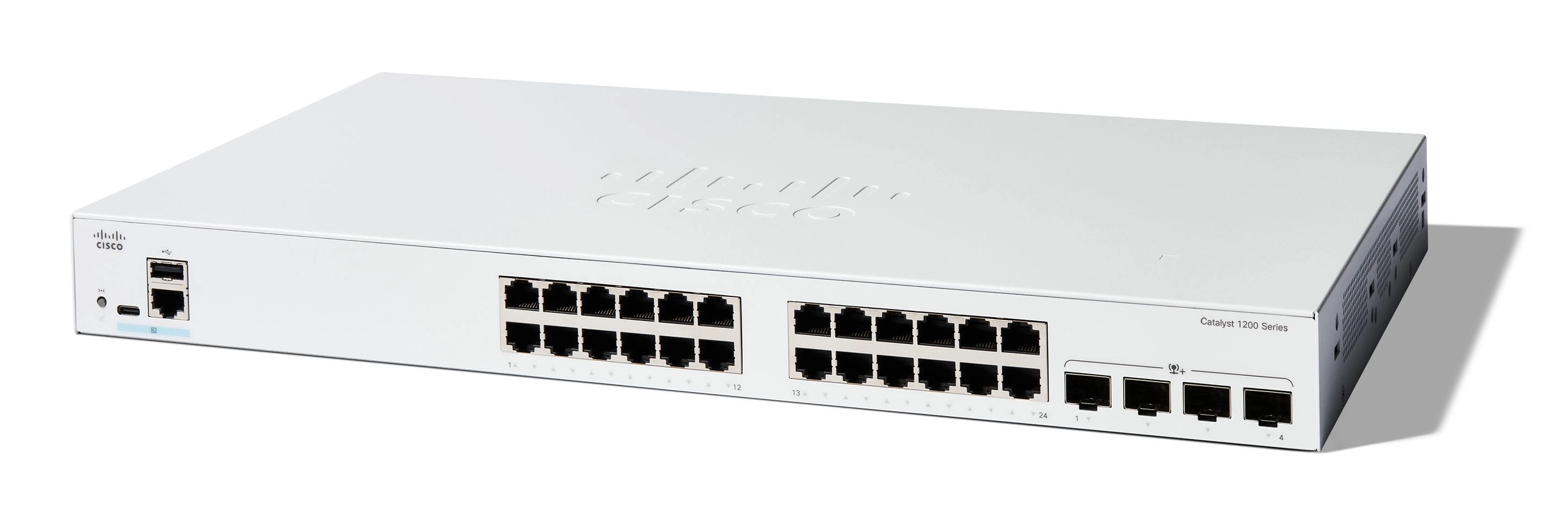

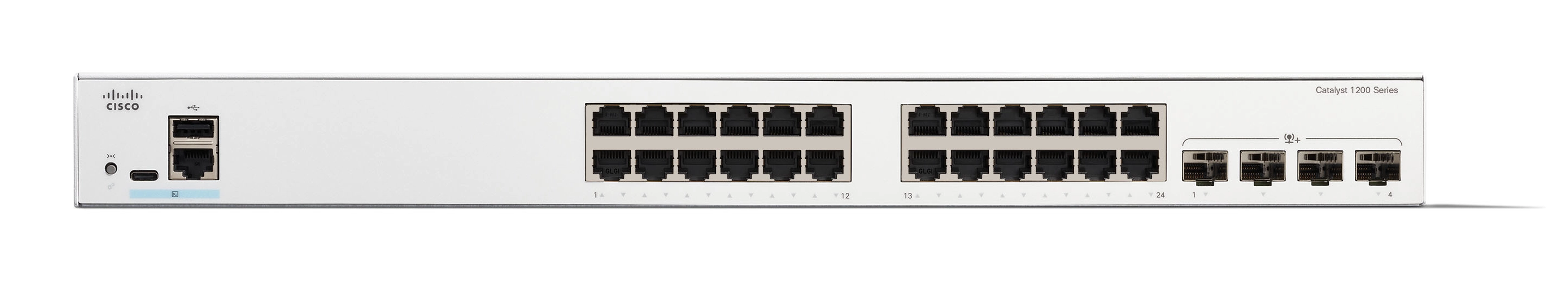

Cisco C1200-24T-4X 24-ports

Name: Cisco C1200-24T-4X 24-ports
Brand: Cisco
SKU: 347726
Availability: InStock

Best offer

AED

1 400²²

Key Features

Switch layer: L2, L2/L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP client
Number of queues: 8
Number of static routes: 32
Static route: Yes
Port mirroring: Yes
Jumbo frames: 9000
IGMP entries: 255
Queue scheduling algorithms: Weighted Round Robin (WRR)
Switching capacity: 56Gbit/s
MAC address table: 8000entries
Access Control List (ACL): Yes
Access Control List (ACL) rules: 512

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

698220 h

Internal memory

1024 MB

Processor frequency

1400 MHz

MIB support

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, HTTPS, SSH, SSL/TLS

Rack mounting

✓

Product colour

White

Packet buffer memory

1.50 MB

Queue scheduling algorithms

Weighted Round Robin (WRR)

Switching capacity

56 Gbit/s

MAC address table

8000 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Authentication type

RADIUS

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

41.66 Mpps

Multicast support

✓

Static route

✓

Switch layer

L2, L2/L3

Packaging data

Package weight

7120 g

Package height

108 mm

Package depth

575.10 mm

Package width

419.10 mm

Weight & dimensions

Weight

3530 g

Height

43.90 mm

Depth

444.50 mm

Width

240 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power consumption (typical)

10.65 W

AC input frequency

50/60 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

195 W

Power over Ethernet (PoE) type supported

PoE+

Power source

Wireless LAN features

IGMP snooping

✓

Design

Housing material

Metal

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

USB Type C cable and mounting hardware

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

VLAN support

✓

Number of VLANs

255

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

10G support

✗

Link aggregation

✓

Flow control support

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

SFP module slots quantity

Console port

RJ-45/USB Type-A, RJ-45/USB Type-C

Installed SFP+ modules quantity

Installed SFP modules quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Technical details

Certification

CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 62368)

Switch type

Managed

Memory

Flash memory

512 MB

Protocols

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of static routes

Number of queues

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

DoS attack prevention

✓

Authentication

Guest VLAN

IGMP entries

255

DHCP features

DHCP client

Solid state drive

Memory type

DDR4-SDRAM

Product Details

The Cisco Catalyst 1300-24T-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Files

User manual

mmo_113749475_1713439633_0504_16228.pdf

PDF• 4.8 MB

Videos

Unboxing Video

MP4• 27.3 MB

Cisco Unboxing

MP4• 27.4 MB

Reviews
