UZAMIRLEX 6L2-V - AC DC Voltmeter Ammeter

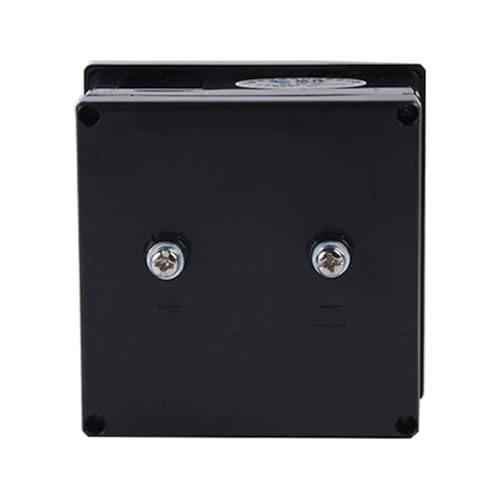

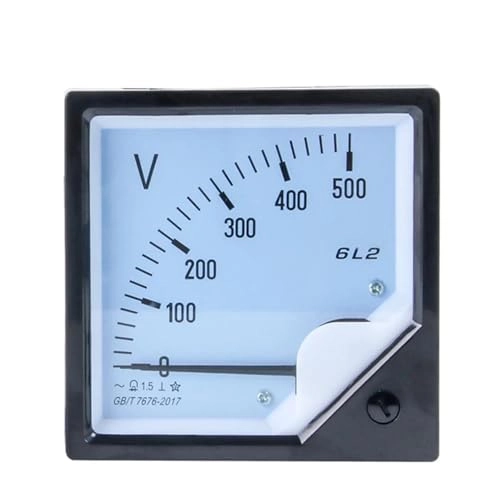

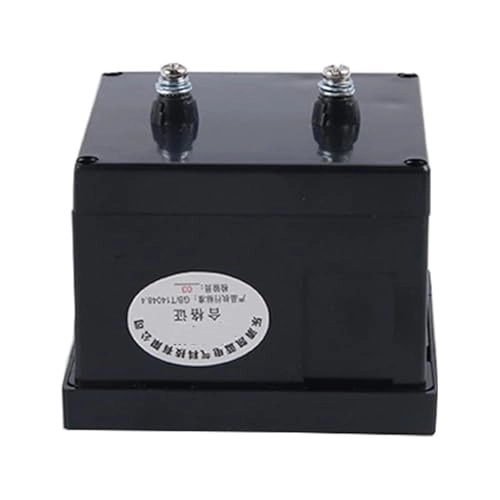

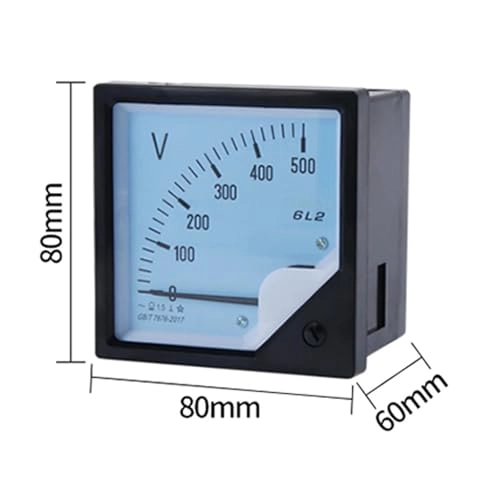

Ammeters Product details: 1. Model: 6L2-V 2. Colour: black and white. 3. Accuracy: 1.54 Dimensions (W x H x D): 80 x 80 x 75 mm. 5. Package: 1 * Analog Voltage & Current Meter (with Mounting Nut) 6. Measurement range: as selected. If the meter you need exceeds 750V, you need to use the same constant voltage value. First: Use This instrument is a switched magnetoelectric instrument, used for measuring alternating current/current or voltage. The ambient temperature is between -20°C and +55°C, and the relative humidity does not exceed 96% (25°C). Two. Specifications AC 0.5~50A Ammeter (Direct Access) 5A~15KA (connected by current, secondary current 5A) 5V~750V AC Voltmeter (Direct Access) Ammeter (Direct Access) (50uA~10A) 15A~15KA (using external partition constant value shunt) DC Voltmeter (Direct Access) (5V~600V) Three. The main technical features 1. The damping time is less than 4S. 2. Insulation resistance: AC2000V (50HZ), 1 minute Four Using Rules 1. Working position: vertical 2. The installation of the tool should be firmly fixed, not loose or tilted. 3. The current ratio of the external current must be in line with the calibration ratio of the instrument and the degree of accuracy must match. Notes: 1. Please allow 1-3mm error due to manual measurement. :) 2. Due to the difference between different monitors, the picture may not reflect the actual colour of the item. 3. Make sure you have selected the correct parameters and leave a message: size, voltage, pattern and so on. ========== Dimensions: 80 x 80 cm. Operating temperature: -20~50 degrees centigrade Supply voltage: AC Accuracy class: 2
