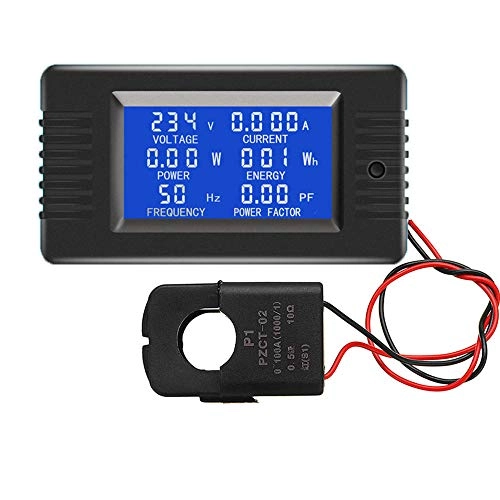

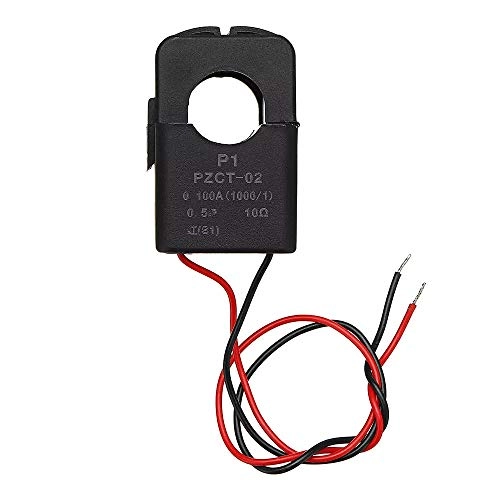

ZHONGE PZEM-022 - 100A AC Split CT

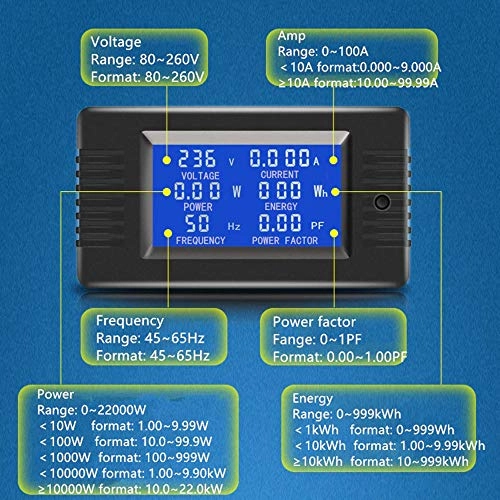

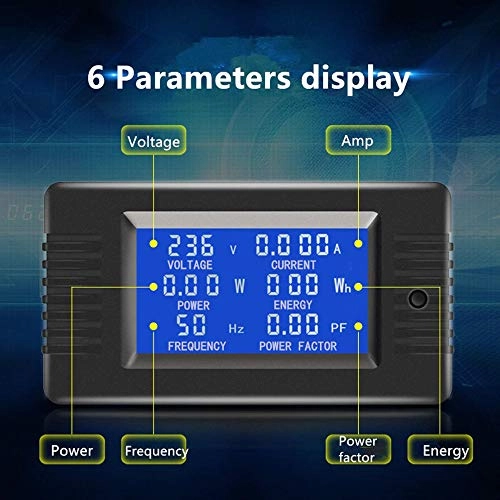

LCD screen display “SET CLr”, then release the key to enter the setting state Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above. Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~2.5kW. it can display six parameters at the same time. Specifications: Working voltage: 80 ~ 260VAC Test voltage: 80 ~ 260VAC Rated power: 100A/22000W Operating frequency: 45-65Hz Measurement accuracy: 1.0 grade Size: 9*5*2.5cm Wire length:19cm Weight: Approx.110g Display format: 1.Power Test range: 0~22000W Starting measure power: 0.2W <10W display format: 1.00~9.99W <100W display format: 10.0~99.9W <1000W display format: 100~999W <10000W display format: 1.00~9.90kW ≥10000W display format: 10.0~22.0kW 2.Energy Test range: 0~999kWh <1kWh display format: 0~999Wh <10kWh display format: 1.00~9.99kWh ≥10kWh display format: 10~999kWh 3.Voltage Test range: 80~260V Display format: 80~260V 4.Current Test range: 0~100A Starting measure current: 0.001A <10A display format:0.000~9.000A ≥10A display format:10.00~99.99A 5.Frequency Test range: 45~65Hz Display format: 45~65Hz 6.Power factor Test range: 0~1PF Display format: 0.00~1.00PF Precautions: 1. This module is suitable for indoor, please do not use outdoor. 2. Applied load should not exceed the rated power. 3. Wiring order can’t be wrong. Package Included: 1*AC Power Multimeter 1*100A Split Core Current Transformer
