Truck Cab Air A/C Conditioner - 1000W-3000W

MuChaIOAK Truck Cab Air A/C Conditioner - 1000W-3000W

Name: MuChaIOAK Truck Cab Air A/C Conditioner - 1000W-3000W
Brand: MuChaIOAK
SKU: 918836
Availability: InStock

Best offer

AED

4 115⁹³

Key Features

Compressor type: rotary_scroll
Product colour: White
Weight: 12999.95732g
Special features: Remote Controlled

Specifications

Features

Special features

Remote Controlled

Product colour

White

Compressor type

rotary_scroll

Weight & dimensions

Weight

12999.96 g

Product Details

Specifications

Applicable Models: Car (Cab Within 6㎡/64ft²)

Color: Black, White

Voltage: 24V

Rated Power: 950W

Condition: New

Material: Copper, Aluminium, ABS

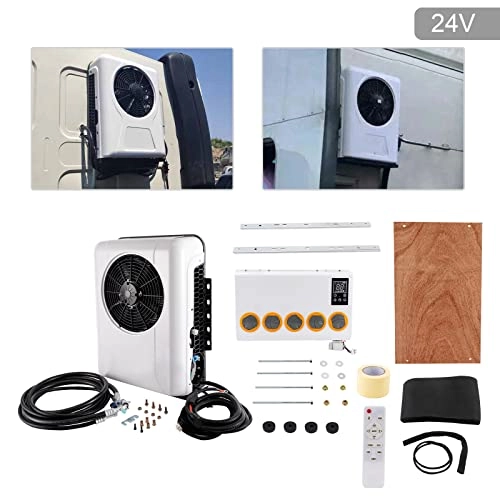

Installation Position: Inside the Cab; Outside the Cab

Refrigerating Capacity: 1000W-3000W (3400-10238BTU)

Refrigerant: R134A (400-450g/0.88-0.99lbs) (Not Included in the Package)

Oil: 90ml-120ml/0.02-0.03gal POE68

Speed Range: 1000-3000rpm

Way of Use: Direct Replacement

Number of Pieces: 2

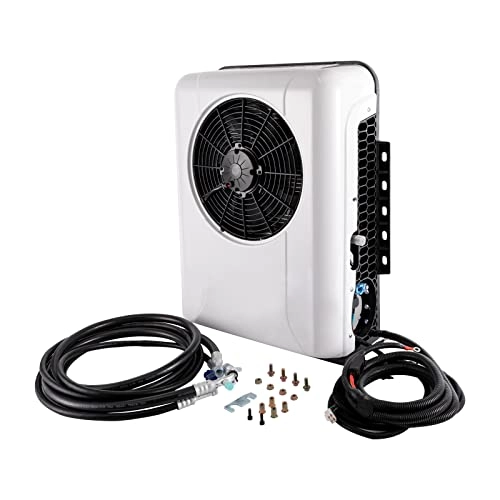

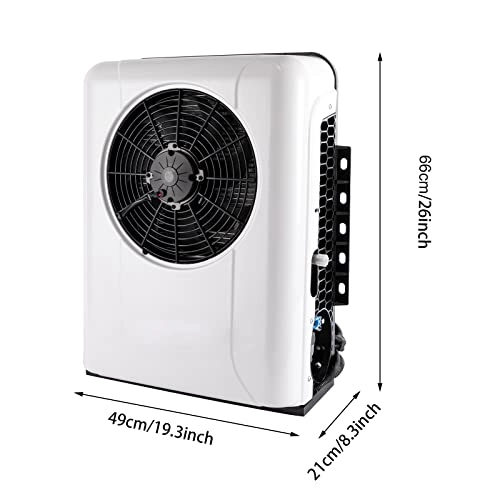

Outdoor Unit Size: 49*21*66cm/19.3*8.3*26inch

Indoor Unit Size:49*33cm/19.3*13inch

Installation

Remove the outer casing.

Select the installation position and mark the punch position. (Select 5 installation points)

Punch holes at the mark points. (Tool: an 8mm/0.3inch drill)

Use a pull riveter to fix the pull rivet nut at the marked hole.

Fixed the damping pad and sleeve at the marked points on the external machine.

Fixed the external machine.

Install the internal machine: install an expansion valve.

Fixed internal machine mounting plate.

Fixed the internal machine.

3/8inch pipe (high-pressure pipe) connected to the condenser.

Connect internal and external machine wires and power cord.

Connect internal and external pipes, and fixed the evaporation box.

Connect internal and external wires.

Install the drainage pipe.

Vacuum for 15-20 minutes.

Refill refrigerant (Pure R134a) 400-450g/0.88-0.99lbs.

The power cord is connected to the battery.

Install the outer casing.

Winding tape to fix the internal and external machine connecting pipe and the internal and external machine connecting wire.

The installation is complete.

Fits (As a Reference)

For car (Cab Within 6㎡/64ft²).

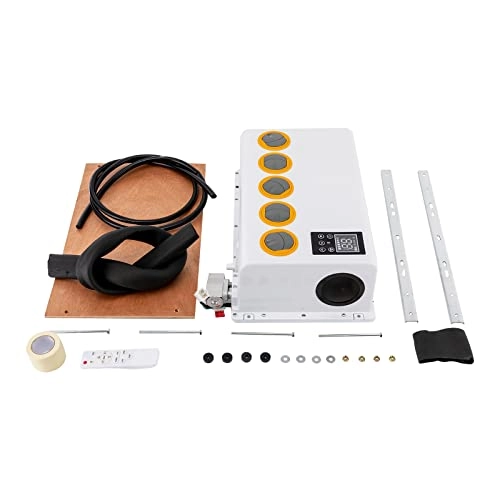

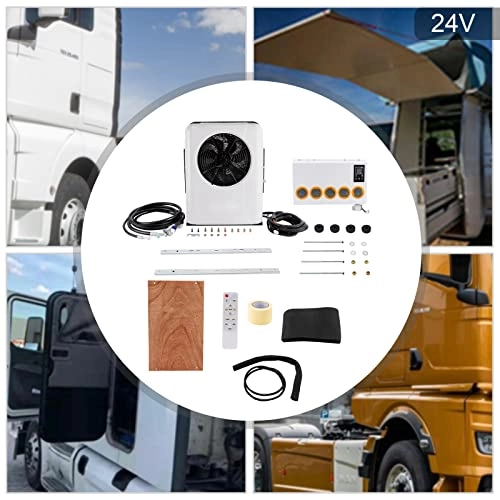

Package Included

1* Air Conditioner Kit

1* Remote Control

Other Accessories for Assembly

Notes

We strongly recommended professional installation. Please contact us if you have any questions.

Please allow the slight difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
