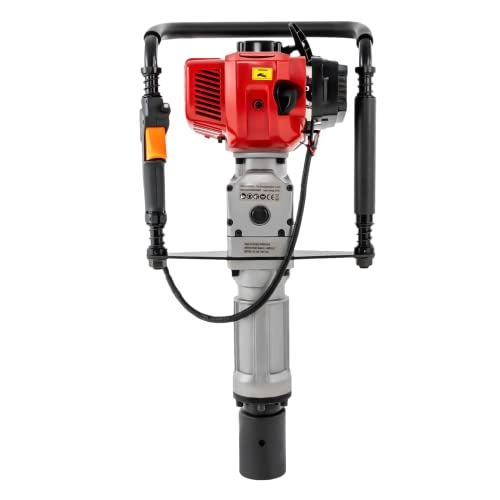

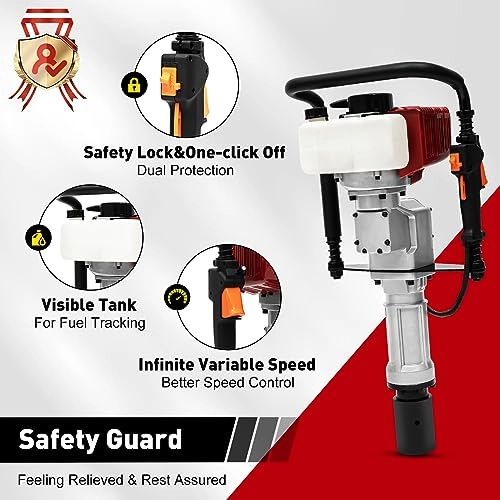

MuChaIOAK 52CC 2 Stroke Gas Powered Pile Driver

Application

This pile driver is suitable for fencing, star pickets, posts, stakes, pipe driving, gardening, agriculture, geophysical exploration, construction, etc.

Specification

Engine Type: Two-stroke, Air Cooling, Single-cylinder

Displacement: 52cc

Fuel Tank Capacity: 1L/0.26gal

Fuel Consumption Rate: ≤0.6L/h

Impact Frequency: 1300-3000BPM

Impact Energy: 20-55J

Carburetor Type: MZ15-048

Spark Plug Type: BM6A

Starter System: Hand Pull Start

Fuel Type: Mixed Oil (25 Gasoline: 1 Motor Oil)

Size: approx. 74*34*26cm/29.13*13.39*10.24in

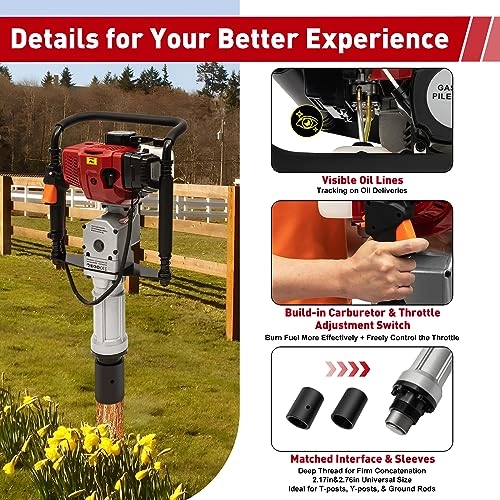

Post Driving Head Mount Size: 55-70mm/2.17-2.76in

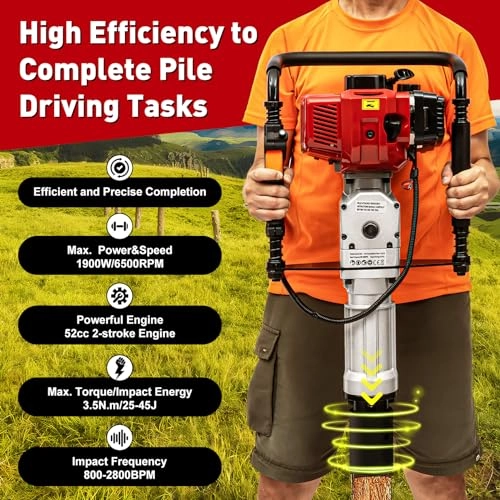

Max. Power & Speed: 1900W(2.3HP)/6500r/min

Max. Torque & Speed: 2.5N.m/5500r/min

Package Included

1 x Petrol Post Driver

2 x Post Driving Head

1 x Mixing Oil Bottle

1 x Tools Kit

Notes

If the pile driver has the problem of not hammering. Then you need to check whether you have added too much grease, clean up the excess oil in the cylinder before disassembly, and re-add about 20g of high temperature resistant grease.

If the impact frequency is too high, you can reduce the speed of the carburetor slightly if you can't hold it by hand. Otherwise, the impact frequency should be increased.

If the machine does not start easily, first check the ratio of oil: gasoline: oil = 25:1, be sure to use a good two-stroke oil. Start the rope pull out an arm's length, and pull it two or three times in a row to start. When the machine starts cold, close the damper, and then open the damper after the machine is normal.
