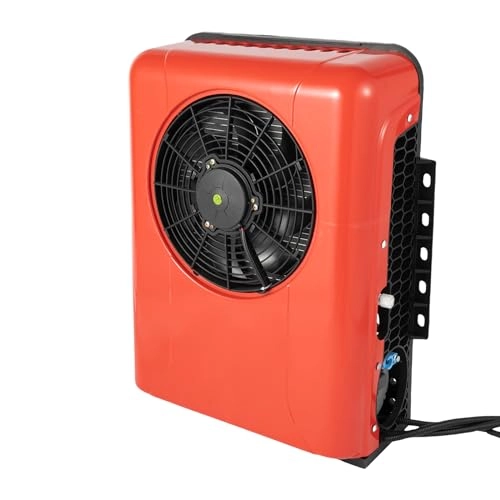

MuChaIOAK 12V - 200W

Application

It can be applied to vehicles with below 10 m³ pilothouse, such as trucks, motor homes, trailers, buses, heavy trucks, school buses, and other occasions. The wind can cover an area of about 220m³.

Specifications

Color: Red, White

Material: ABS, Aluminum

Surface Treatment: Injection Molding

Voltage: 12V

Max Current: 36A

Power: 600W

Cooling Capacity: 200W

Energy Efficiency Ratio: ≥3.1

Refrigerant Model: R134A (Max Filling Capacity: 500g)

Refrigeration Oil Model: POE68

Wind Coverage: About 220m³

Motor's Max Rotating Speed: 3000rpm

Fan's Max Rotating Speed: 2600rpm

Displacement of Whirlpool Compressor: 20cc/rpm

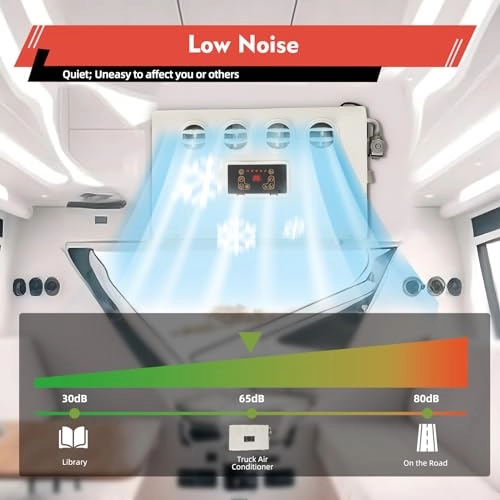

Noise: 65dB

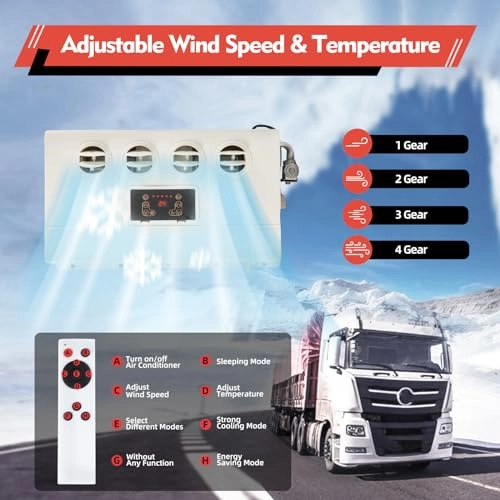

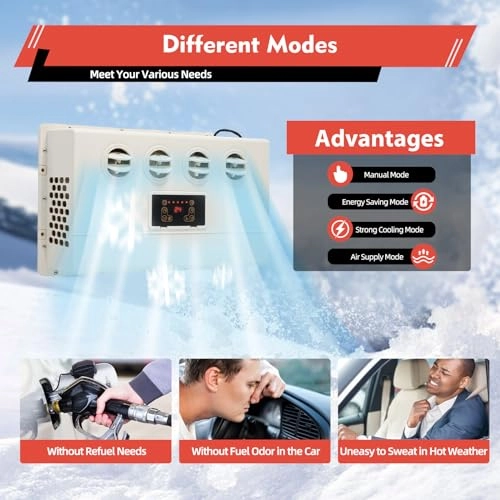

Modes: Manual Mode; Energy Saving Mode, Strong Cooling Mode, Air Supply Mode

Wind Speed: 4 Gears

Max Continuous Working Duration: About 6-8h ( Fully Charged 480AH Car Battery)

Outdoor Unit Gross Weight: 20.05kg/44.2lbs

Outdoor Unit Net Weight: 17.85kg/39.35lbs

Indoor Unit Gross Weight: 6.45kg/14.21lbs

Indoor Unit Net Weight: 4.7kg/10.36lbs

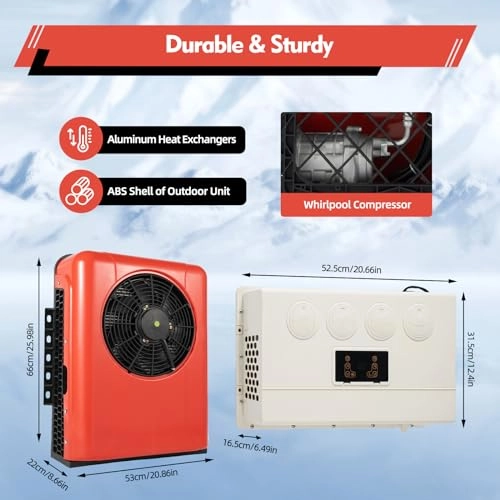

Outdoor Unit Size: 66*53*22cm/25.98*20.86*8.66inch

Outdoor Unit Package Size: 71.5*65*30.5cm/28.14*25.59*12inch

Indoor Unit Size: 52.5*31.5*16.5cm/20.66*12.4*6.49inch

Indoor Unit Package Size: 54*41.5*21.5cm/21.25*16.33*8.46inch

Package Included

1*Outdoor Unit

1*Indoor Unit

1*Remote Control

2*AAA Batteries

All Accessories for Assembly

Notes

Please note that this air-conditioner only can be used for cooling.

Professional installation is highly recommended.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
