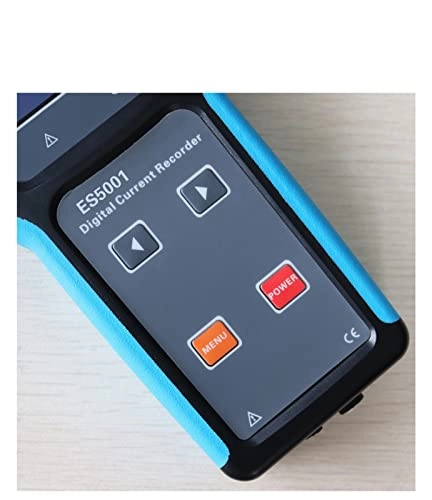

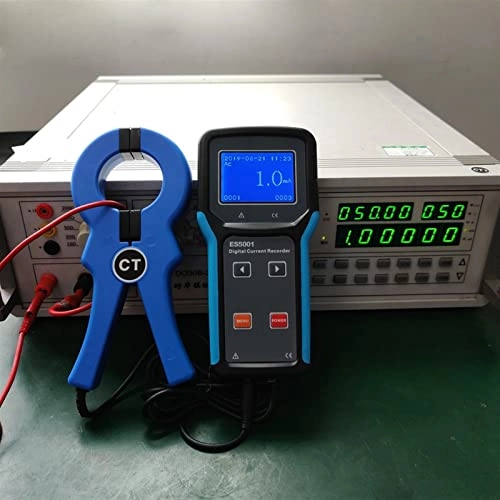

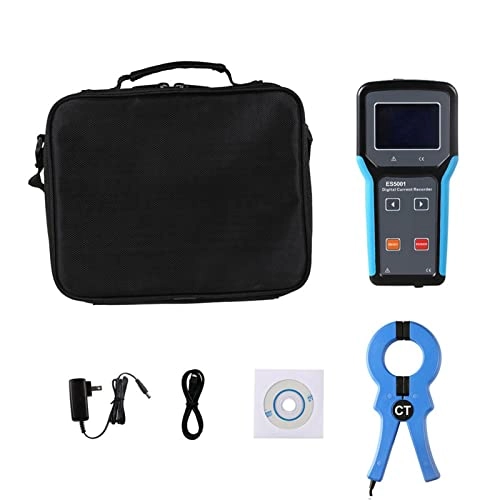

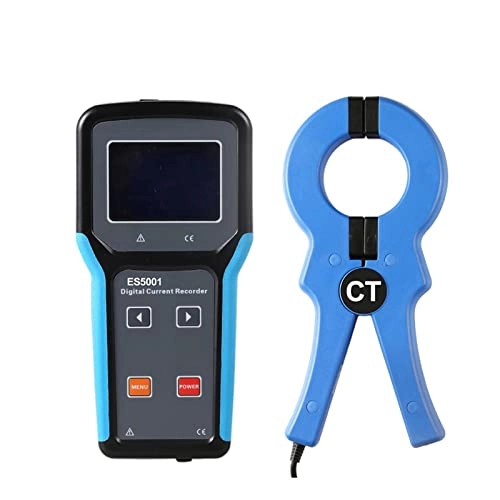

MKHFP ES5001 - 50mm

Features: 1, High Accuracy ---- Resolution 0.1MA, Accuracy 0.5% 2, Powerful recording function----4G SD card, 9999 groups data storage 3, Clock function 4, Large capacity rechargeable battery 5, Separate design readings are convenient Specification: Range: 0.0MA-1000A. Jaw size: φ50mm Resolution: 0.1MA. Accuracy: ± 0.5% FS Function: AC current measurement recording, online monitoring recording, line maintenance, fault search Power: DC6V rechargeable nickel-metal hydride battery 1.2 V × 5 Test Method: CT clamp, Average current detection Display mode: LCD: 12 8dots × 64dots Frequency: 50/60Hz. Host size: W/H/T: 10,000 mm × 204 mm × 35 mm Current clamp size: W/H/T: 10 1 mm × 214 mm × 27 mm. Weight: host: 409g (battery included) Charger: 83g Current clamp: 260 g Lcd Size: Display Area: 62mm×44mm Sampling rate: 2 times/sec. Storage way: TF card Data storage: 9999 groups (power loss or battery replacement will not lose data) Time settings: Set the recording interval in 1 to 60 minutes, 0 minutes means not automatically stored Recording time: continuous operation for 2 days in power saving mode Real time clock: have Clock setting function: have Data interface: standard protocol, USB transmission Line Voltage: Line Test Below AC600V Overflow display: overflow function on the range: display of "OL" symbol Battery voltage: When the battery voltage drops to 5.2V, the battery voltage is low and the symbol is displayed, reminding you to charge. The measured data are also accurate. Rated power: 15mA in saving mode
