MKHFP ETCR1560 - Multifunction Wireless High Voltage

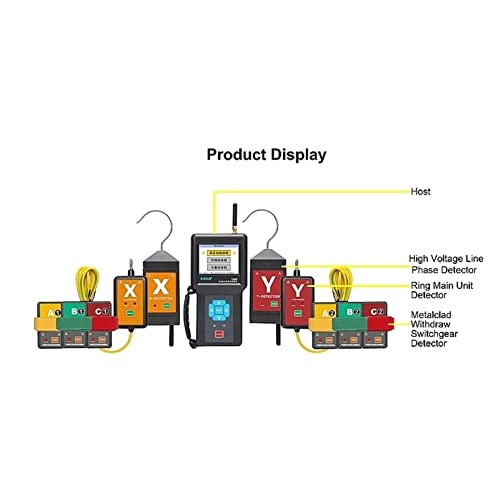

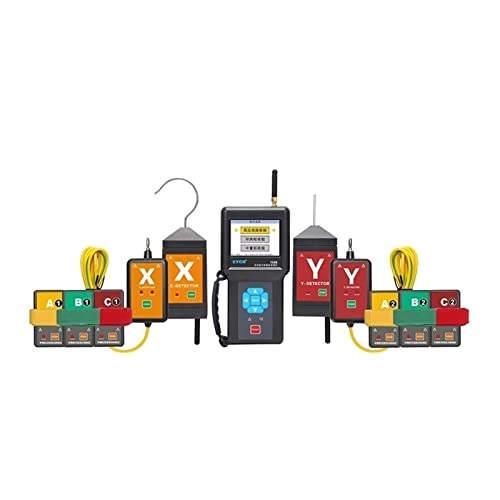

ETCR1560 RMU Multifunction Wireless High Voltage Phase Device Metalclad Removal Interrupt Grip Product Function Applied to phase detection, phase testing, phase sequence judgment and high voltage line electricity testing, metalclad extraction rigging and ring main unit and other occasions. Specification High Voltage Line Phase Detection Detector Power Supply DC4.5V, LR6X3PCS Phase detection mode 1. Contact mode phase detection: circuit line below 35kV <;line voltage35kV can detect phase in the skin of cable insulation; When the line Voltage>35kV, should adopt non-contact mode for testing Phase detecting voltage 10V-500kV Phase detection distance 200 meters Detector Size 130mm × 65mm × 45mm Detector Weight 2 pieces, total weight 400 g Insulation Bar Length Max Dia. :45 mm; Shrinkage length: shrinkage state 1000 mm; stretched state: 4500 mm Technical Specification of Ring Head Unit Detector Power Supply DC6V, button battery LR44X4PCS Phase detection mode Contact Mode Phase Detection Phase detecting voltage AC 5V-600V Phase detection distance 30 meters Detector Size 120mm × 54mm × 30mm Detector Weight 2 pieces, total weight 260 g MetalClad Remove SwitchGear Technical Specification Detector Power Supply DC6V, button battery LR44X4PCS Phase detection mode Non-contact mode phase detection Phase detecting voltage 1 0KV / 35kV Phase detection distance 20 meters Detector Size 80mm × 46mm × 26mm Detector Weight 6pcs, total weight 420g Other technical specifications Power supply
