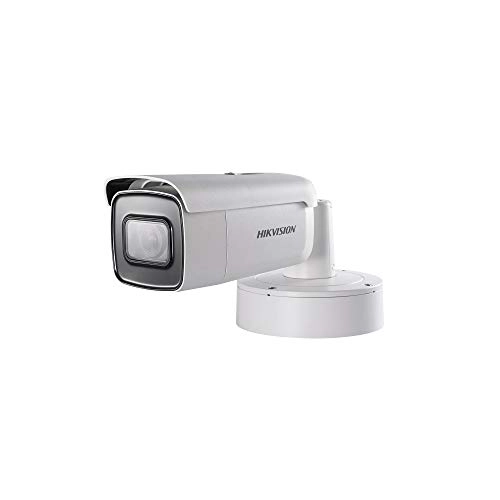

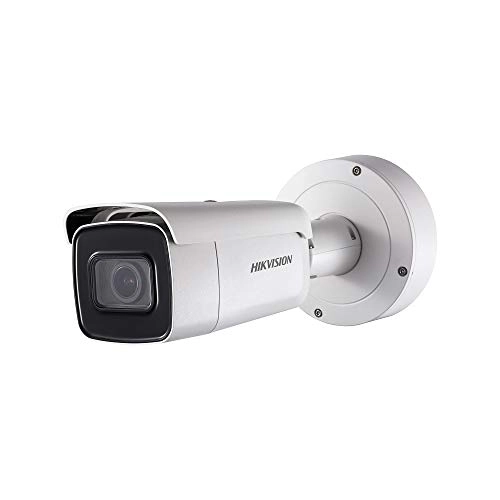

Hikvision DS-2CD2643G0-IZS

Name: Hikvision DS-2CD2643G0-IZS
Brand: Hikvision
SKU: 356990

Best offer

AED

660⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 50.6°°
Lens viewing angle, diagonal: 125°°
Power consumption (Power over Ethernet (PoE)): 18W
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Alert notification type: E-mail
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Suitable for outdoor use: Yes
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Water resistant

Voice codecs

G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Weatherproof

✓

Number of sensors

Audio formats supported

AAC, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Suitable for outdoor use

✓

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520, 320 x 240, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA)

Packaging data

Package weight

1960 g

Package height

180 mm

Package depth

190 mm

Package width

385 mm

Weight & dimensions

Weight

1740 g

Height

93 mm

Depth

97.90 mm

Width

308.50 mm

Diameter

144 mm

Length

332.70 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

14.50 W

Surge protection voltage

2 kV

Power over Ethernet (PoE)

✓

DC output current

1.20 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

18 W

Performance

Camera pan control

✓

System requirements

Minimum system requirements

CPU: 2.0 GHz or higher

Minimum processor

2 GHz

Minimum RAM

1000 MB

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Bullet

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3at

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP?

Cabling technology

10/100Base-T(X)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

BNC output ports

Terminal block port

✓

Composite video out

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

2016), B), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-EMC (EN 55032: 2015, CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-3: 2013, FCC SDoC (47 CFR 15, IC VoC (ICES-003: 6, IEC 62368-1:2014), KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), LOA (IEC/EN 60950-1), RCM (AS/NZS CISPR 32: 2015)

Remote viewing

✓

Anti-flicker

✓

Compliance certificates

REACH, RoHS

Lens system

Lens type

Varifocal

Minimum aperture number

1.20

Maximum aperture number

1.60

Number of lenses

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Heartbeat

✓

HTTPS encryption

✓

Focusing

Focus

Motorized

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Camera shutter speed

1/3 - 1/100000 s

3D NR (Noise Reduction)

✓

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

PTZ control

✓

Focal length range

2.8 - 12 mm

Bit rate

32 Kbps - 8 Mbps

Analog signal format system

PAL

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Face detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

125°

Lens viewing angle, vertical

50.6°

Camera tilt control

✓

Logistics data

Harmonized System (HS) code

85258900

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

50 m

Infra-red wavelength

850 nm

Product Details

1/3" Progressive Scan CMOS 2560 ×1440@30fps 2.8 to 12 mm varifocal lens Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR H.265+, H.265, H.264+, H.264 Three streams 120dB WDR 2 Behavior analyses, and face detection BLC/3D DNR/ROI IP67, IK10 Built-in micro SD/SDHC/SDXC card slot, up to 128 GB 3-Axis adjustment
