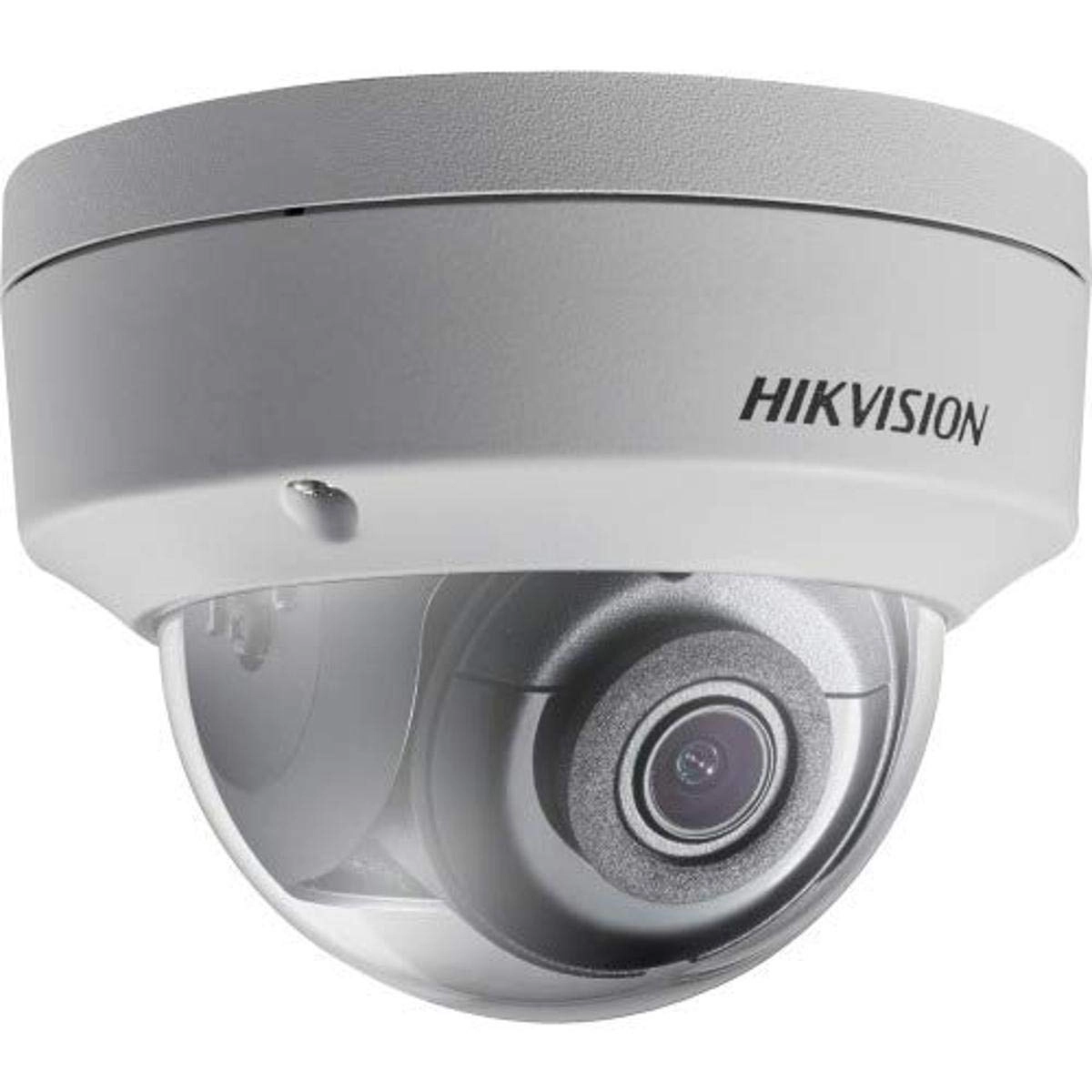

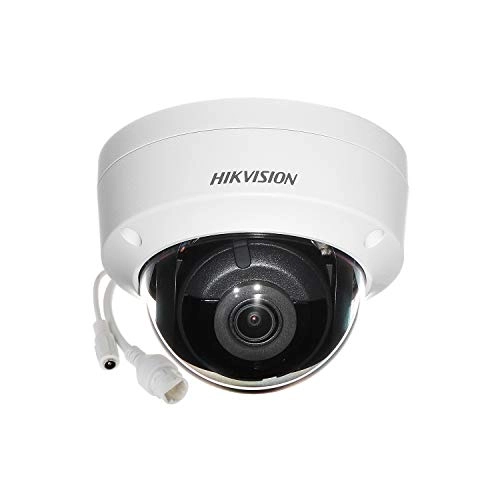

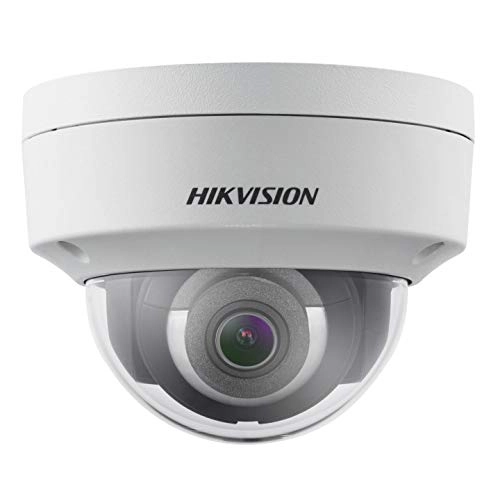

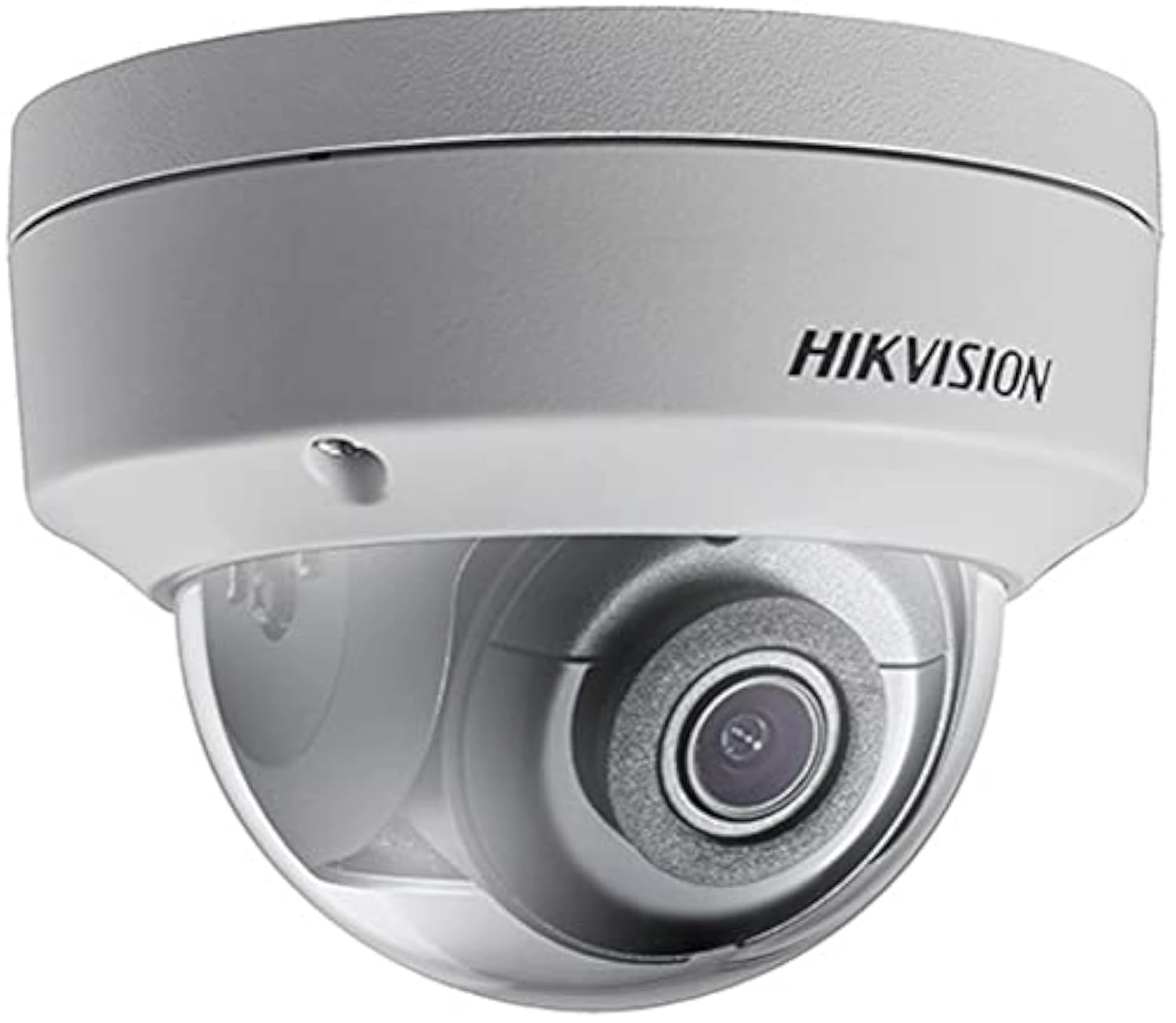

Hikvision DS-2CD2143G0-I

Name: Hikvision DS-2CD2143G0-I
Brand: Hikvision
SKU: 357188

Best offer

AED

347⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 58°°
Lens viewing angle, diagonal: 123°°
Power consumption (Power over Ethernet (PoE)): 7.5W
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Fixed focus: Yes
Alert notification type: E-mail
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Suitable for outdoor use: Yes

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant

Voice codecs

G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Languages support

Traditional Chinese, Danish, German, Dutch, Finnish, HRV, Hungarian, Italian, Japanese, Korean, LAT, Multi, Polish, Portuguese, RON, Russian, SER, Slovak, Slovenian, SPA, Swedish, Thai, Turkish, Vietnamese

Number of languages

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Fixed focus

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Suitable for outdoor use

✓

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520, 320 x 240, 342 x 240, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA)

Recognize distance (wide)

16 m

Packaging data

Package type

Box

Package weight

820 g

Package height

108 mm

Package depth

134 mm

Package width

134 mm

Weight & dimensions

Weight

610 g

Height

82.40 mm

Diameter

111 mm

Length

82.40 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

6 W

Power consumption

30 mA

Power over Ethernet (PoE)

✓

DC output current

0.50 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7.50 W

Performance

Camera pan control

✓

System requirements

Minimum system requirements

CPU: 2.0 GHz or higher

Minimum processor

2 GHz

Minimum RAM

1000 MB

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

355 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor, Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall

Form factor

Dome

Packaging content

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP, UPnP?, UPnP™

Cabling technology

10/100Base-T(X)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Interface

RJ-45

Ethernet LAN (RJ-45) ports

Microphone in

✓

Terminal block port

✓

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

2016), B), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-EMC (EN 55032: 2015, CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-3: 2013, FCC SDoC (47 CFR 15, IC VoC (ICES-003: 6, IEC 62368-1:2014), KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), LOA (IEC/EN 60950-1), RCM (AS/NZS CISPR 32: 2015)

Remote viewing

✓

Anti-flicker

✓

Lens system

Lens mount interface

M12

Minimum aperture number

1.20

Maximum aperture number

1.60

Iris

✗

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

80 m

Observe distance (wide)

31 m

Identify distance (wide)

8 m

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Heartbeat

✓

Password reset via email

✓

Pixel counter

✓

HTTPS encryption

✓

Focusing

Focus

Manual

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Field of view (FOV) angle

114 °

Camera shutter speed

1/3 - 1/100000 s

3D NR (Noise Reduction)

✓

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.8 - 8 mm

Bit rate

256 Kbps to 16 Mbps

Analog signal format system

PAL

Sensor type

CMOS

Lens viewing angle, horizontal

103°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Face detection, Intrusion

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

123°

Lens viewing angle, vertical

58°

Camera tilt control

✓

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

- 1/3" Progressive Scan CMOS - 2560 × 1440@30fps - 2.8/4/6/8 mm fixed lens - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR - H.265+, H.265, H.264+, H.264 - Three streams - 120dB WDR - 2 Behavior analyses, and face detection - BLC/3D DNR/ROI - IP67, IK10 - Built-in micro SD/SDHC/SDXC card slot, up to 128 GB - 3-Axis adjustment

Hikvision AcuSense technology

Integrated with automatic triggering, Hikvision AcuSense Technology takes alarm accuracy and search efficiency to a whole new level.

Deep Learning Algorithm

The Magic Behind It All As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Human and Vehicle Intrusion

Spotlights the Events that Matter The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Accurate Alarm for Human and Vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Visual and Auditory Warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.
