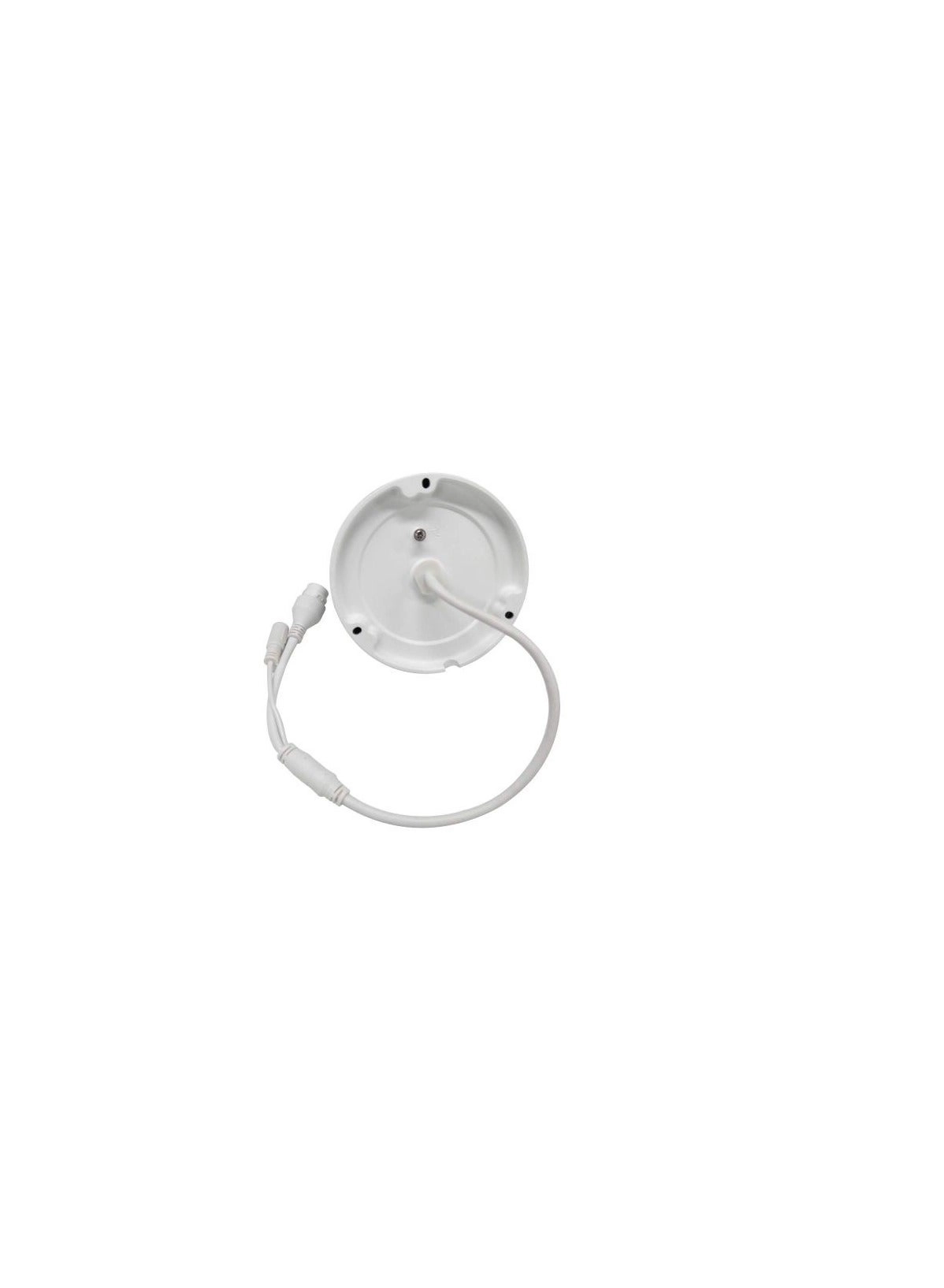

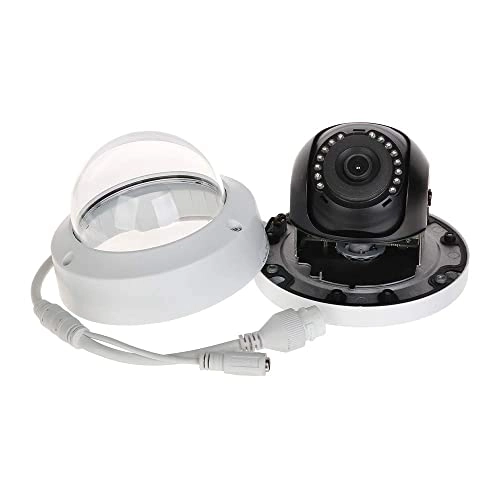

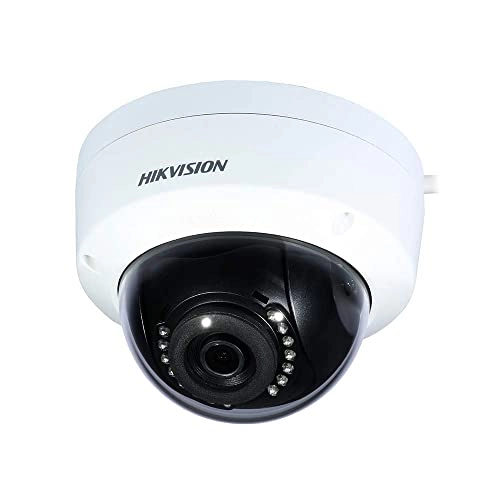

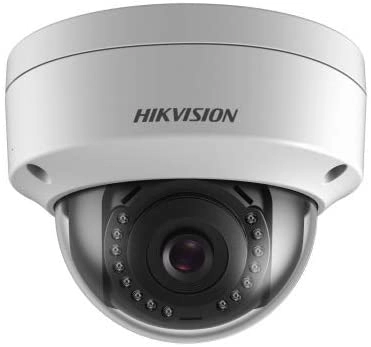

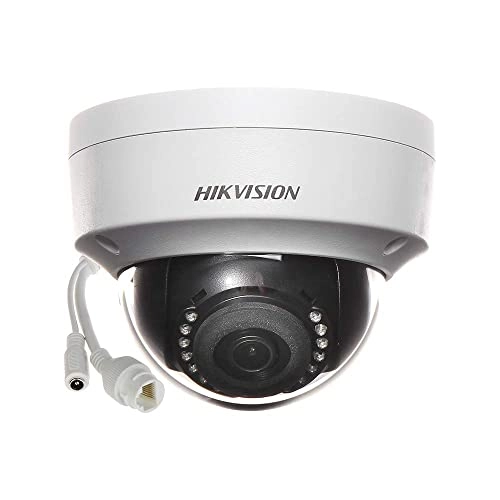

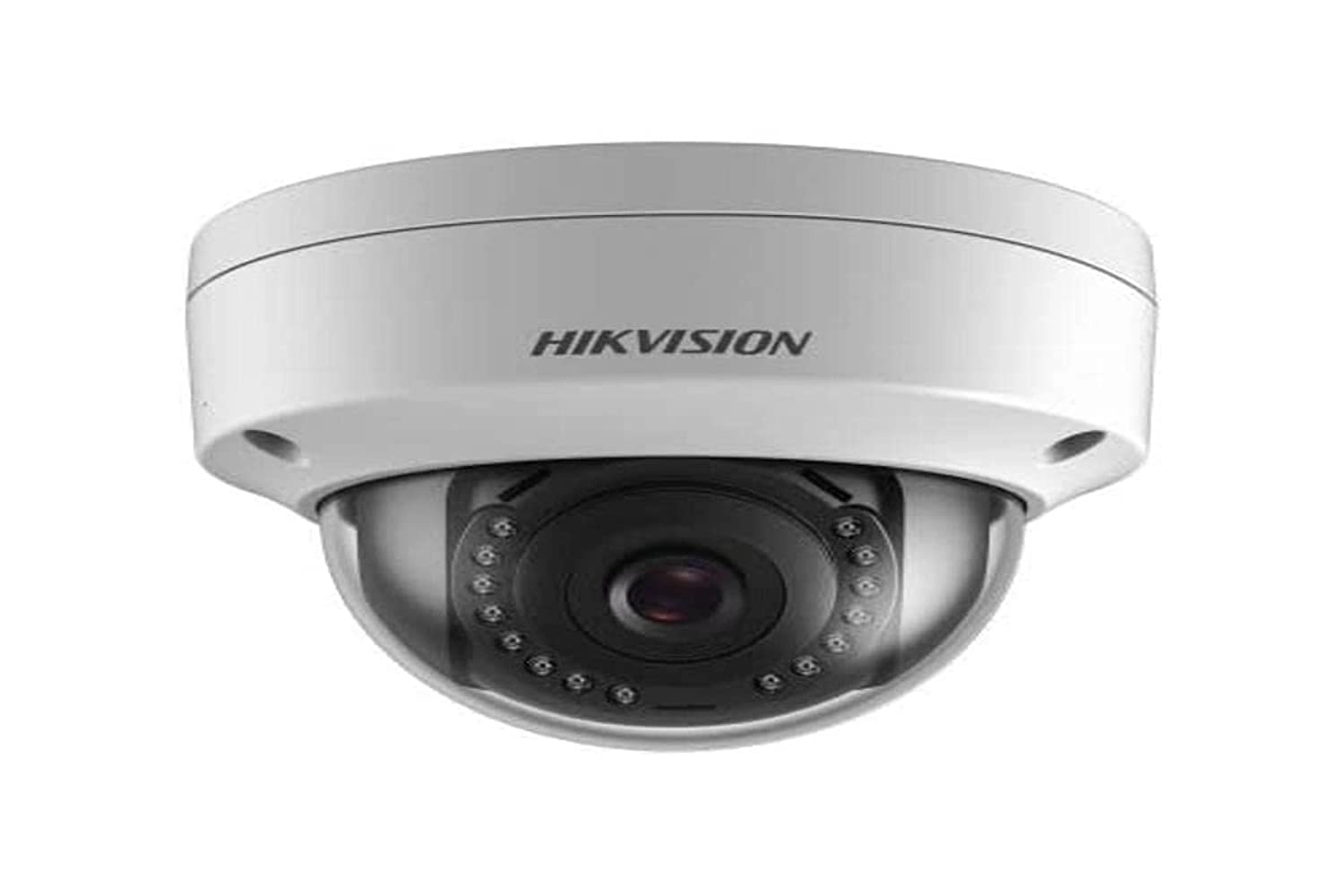

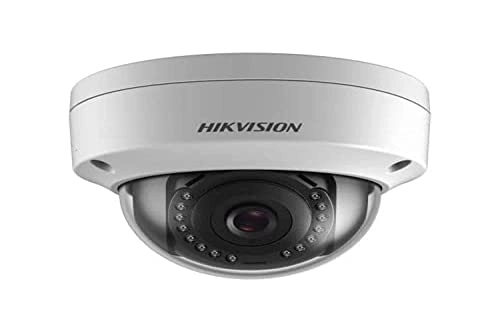

Hikvision DS-2CD1143G0-I

Name: Hikvision DS-2CD1143G0-I
Brand: Hikvision
SKU: 357390
Availability: InStock

Best offer

AED

179⁰⁰

AED

219⁰⁰

-18%

Key Features

Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 55°°
Lens viewing angle, diagonal: 117°°
Power consumption (Power over Ethernet (PoE)): 7W
Infrared (IR) cut-off filter: Yes
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
DC output voltage: 12
Angle of rotation: 360°
Form factor: Bullet
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Anti-flicker: Yes

Specifications

Features

Web browser

✓

Quality of Service (QoS) support

✓

Password protection

✓

Video motion detection

✓

Connectivity technology

Wired

Product colour

White

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Packaging data

Package weight

530 g

Package height

118 mm

Package depth

121 mm

Package width

216 mm

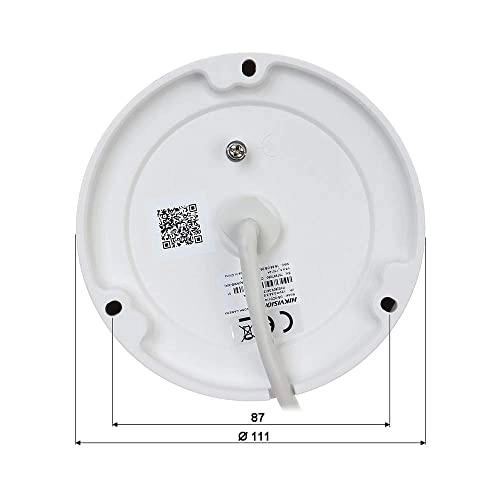

Weight & dimensions

Weight

280 g

Height

66 mm

Depth

172.70 mm

Width

69.10 mm

Power

Power consumption (max)

5 W

DC output current

0.40 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7 W

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Design

International Protection (IP) code

IP67

Housing material

Metal, Plastic

Form factor

Bullet

Network

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6 UDP, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Ports & interfaces

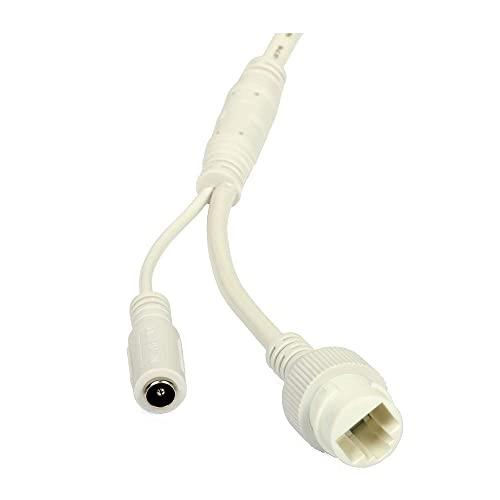

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Anti-flicker

✓

Lens system

Maximum aperture number

Fixed focal length

2.80 mm

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

20 fps

Privacy masking

✓

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Security

IP address filtering

✓

Heartbeat

✓

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

✓

Bit rate

32 Kbps to 8 Mbps

Total megapixels

4 MP

Number of cameras

Sensor type

CMOS

Lens viewing angle, horizontal

100°

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Digital Wide Dynamic Range (DWDR)

✓

Lens viewing angle, diagonal

117°

Lens viewing angle, vertical

55°

Pan-tilt unit

Tilt angle range

0 - 180 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2560 x 1440 pixels

Minimum illumination

0.01 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

Files

User manual

mmo_69593663_1670880894_614_5628.pdf

PDF• 11.3 MB

Product Brochure

mmo_69593663_1670880915_1241_26572.pdf

PDF• 960.7 KB

Quick Start Guide

mmo_69593663_1670880907_9714_15061.pdf

PDF• 2.6 MB
