Hikvision AcuSense

Name: Hikvision AcuSense
Brand: Hikvision
SKU: 357472

Best offer

AED

498⁹⁰

Key Features

Detect distance: 89m
Observe distance: 35m
Recognize distance: 17m
Noise reduction technology: 3D noise reduction
Open platform version: HEOP 2.0
AI software framework: Caffe, ONNX, PaddlePaddle, TensorFlow
Lens viewing angle, vertical: 56.1 - 19.3°°
Lens viewing angle, diagonal: 137.4 - 47.3°°
Power consumption (Power over Ethernet (PoE)): 15W
Identify distance: 8m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Fixed focus: Yes
Alert notification type: E-mail

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant, Waterproof

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Internal memory

60 MB

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC, AAC-LC, G.711, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Security algorithms

802.1x RADIUS, EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, SRTP, TLS

Languages support

Multi

Number of languages

Connectivity technology

Wired

Product colour

White

Audio input

Video streaming

✓

Digital watermark

✓

Fixed focus

✓

Alert notification type

E-mail

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Output impedance

100 Ω

Supported programming languages

C++

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520, 3200 x 1800, 3840 x 2160, 640 x 360, 640 x 480 (VGA)

RAM capacity

400 MB

Recognize distance (wide)

12.70 m

Recognize distance (tele)

43 m

Detect distance

89 m

Packaging data

Package weight

750 g

Package height

180 mm

Package depth

190 mm

Package width

385 mm

Weight & dimensions

Weight

525 g

Height

97.60 mm

Depth

93.30 mm

Width

97.90 mm

Diameter

122 mm

Length

298 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (typical)

6 W

Power consumption (max)

13 W

DC output current

1.08 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

15 W

Performance

Open platform version

HEOP 2.0

AI software framework

Caffe, ONNX, PaddlePaddle, TensorFlow

Other features

I/O ports

1x line in, 1x line out

Browser supported

Chrome 57.0+, Firefox 52.0+, IE 10, IE 11

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor, Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling, Ceiling/Wall, Ceiling/Wall/Desk

Form factor

Bullet

Built-in light

✓

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Supported network protocols

802.1X, 802.1X (except for -W model), ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP, SRTP, SSL/TLS, TCP/IP, UDP, UPnP, WebSocket, WebSockets

Streaming method

Multicast

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Terminal block port

✓

RS-485 ports

Audio output

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

2016), B), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-EMC (EN 55032: 2015, CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, CE-RoHS, EN 50130-4: 2011 +A1: 2014), EN 61000-3-2: 2014, EN 61000-3-3: 2013, FCC SDoC (47 CFR 15, IC VoC (ICES-003: 6, IEC 62368-1:2014), KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1), LOA (IEC/EN 60950-1), RCM (AS/NZS CISPR 32: 2015), Reach, WEEE

Anti-flicker

✓

Compliance certificates

BIS, CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Memory

Flash memory

2000 MB

Audio

Audio system

2-way

Built-in speaker(s)

✓

Lens system

Lens mount interface

M12

Maximum aperture number

Iris

✓

Number of lenses

Fixed focal length

2.80 mm

Detect distance (wide)

87 m

Detect distance (tele)

180.60 m

Observe distance (wide)

35 m

Observe distance (tele)

86 m

Identify distance (wide)

6.30 m

Identify distance (tele)

22 m

Identify distance

8 m

Noise reduction technology

3D noise reduction

Recognize distance

17 m

Observe distance

35 m

Video

Video compression formats

H.264, H.265, M-JPEG

Video formats supported

H.264, H.265, M-JPEG

Frame rate

30 fps

Smart IR

✓

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Audit log

✓

Heartbeat

✓

Network access storage (NAS)

✓

Password reset via email

✓

Pixel counter

✓

Flash log

✓

Automatic Network Replenishment (ANR)

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Gain control type

Auto

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

4 MP

Number of cameras

Focal length range

2.8 - 12 mm

Bit rate

32 Kbps - 16 Mbps

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

112.3 - 41.2°

Human and vehicle targets classification

✓

Progressive scan

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Abandoned object, Abnormal sound detection, Crossing line, Defocus, Face detection, Heat map, Human detection, Intrusion, Line crossing detection, Missing object, People counting, Region entrance detection, Region exiting detection, Scene change, Vehicle detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

137.4 - 47.3°

Lens viewing angle, vertical

56.1 - 19.3°

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

3840 x 2160 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

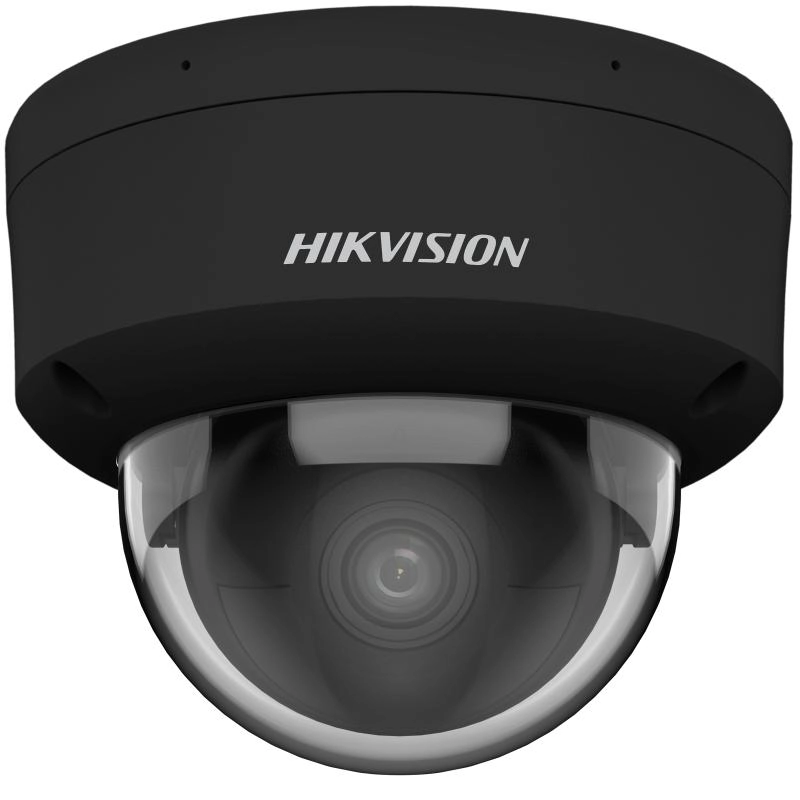

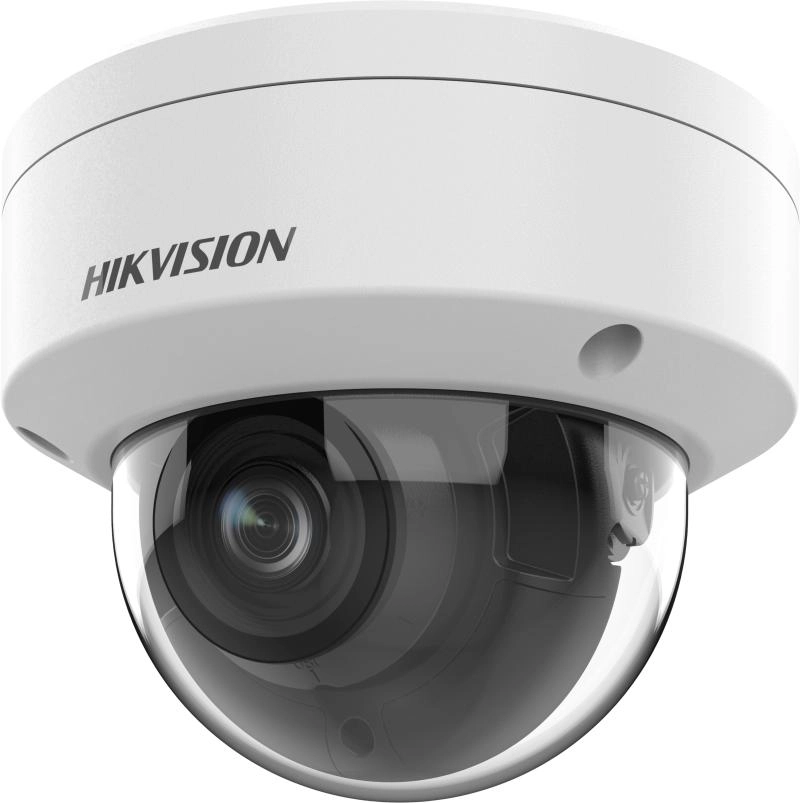

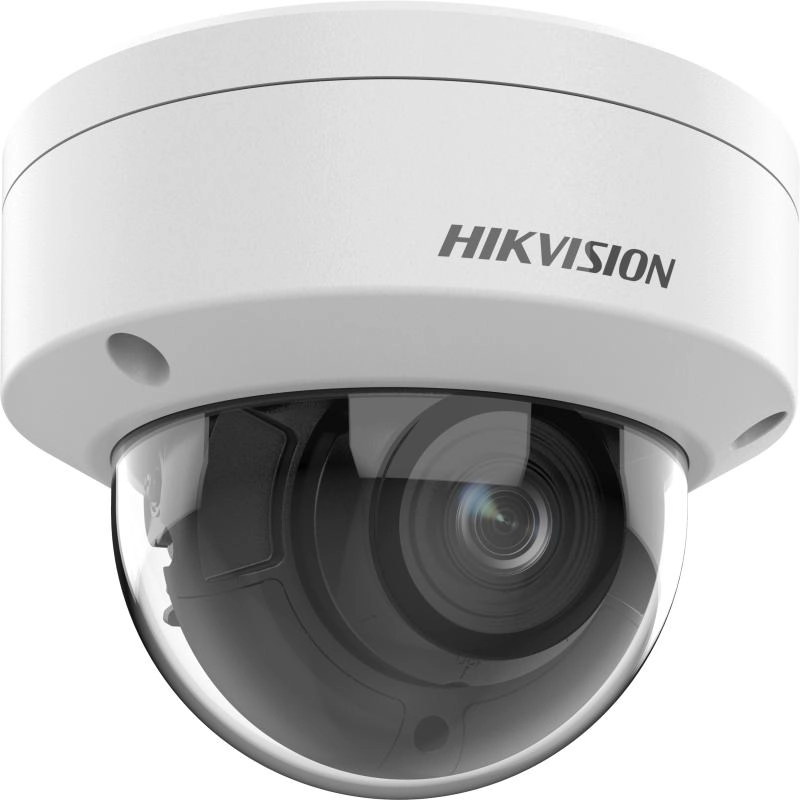

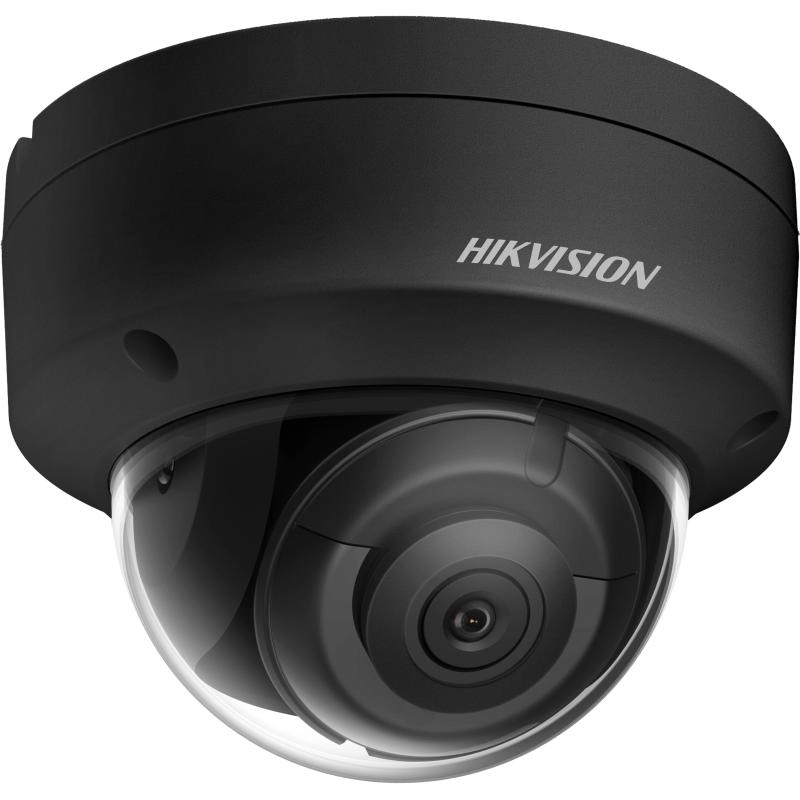

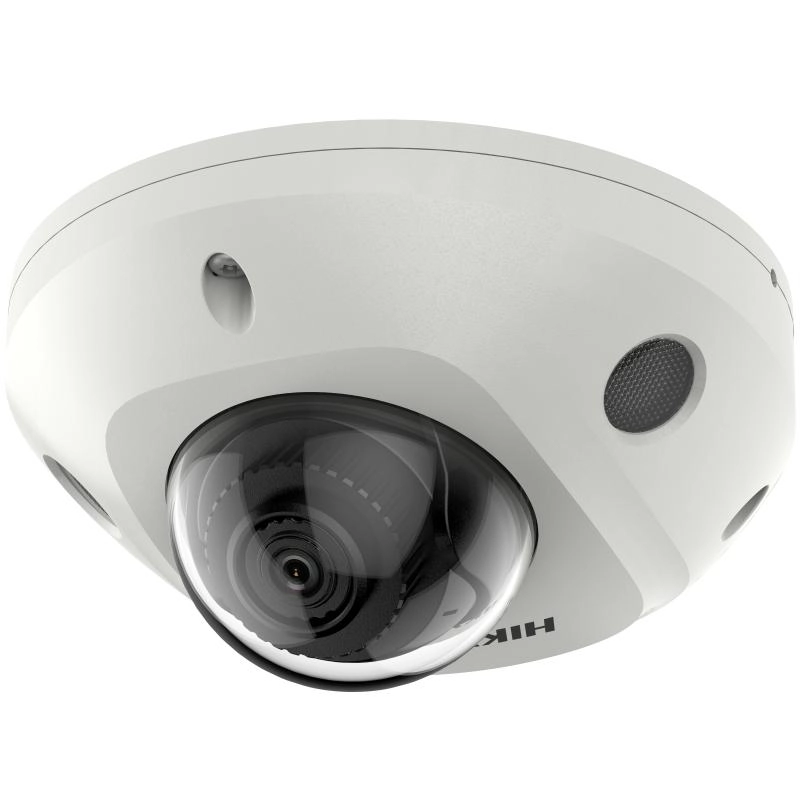

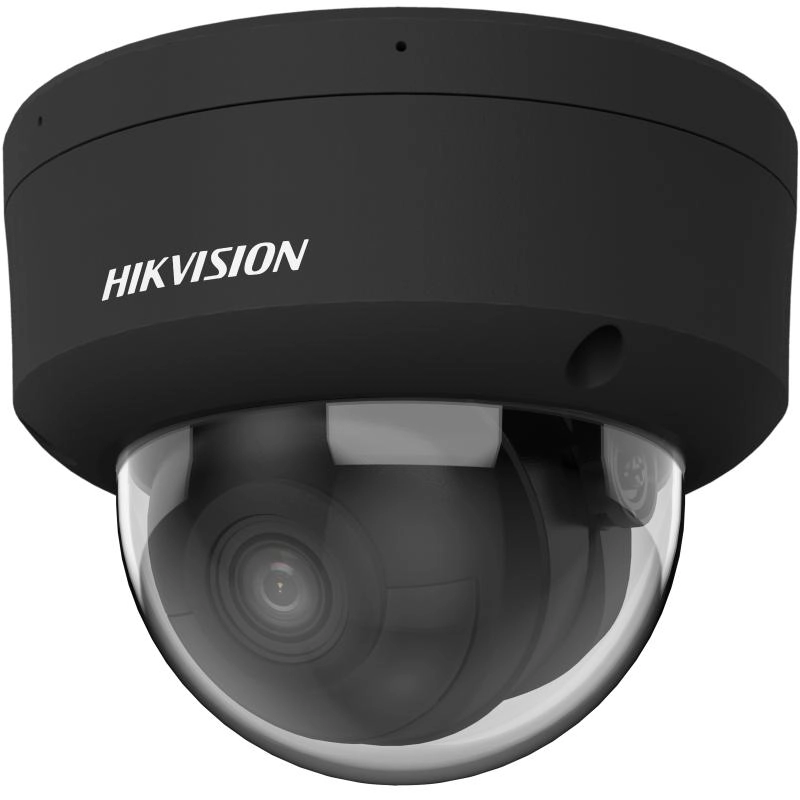

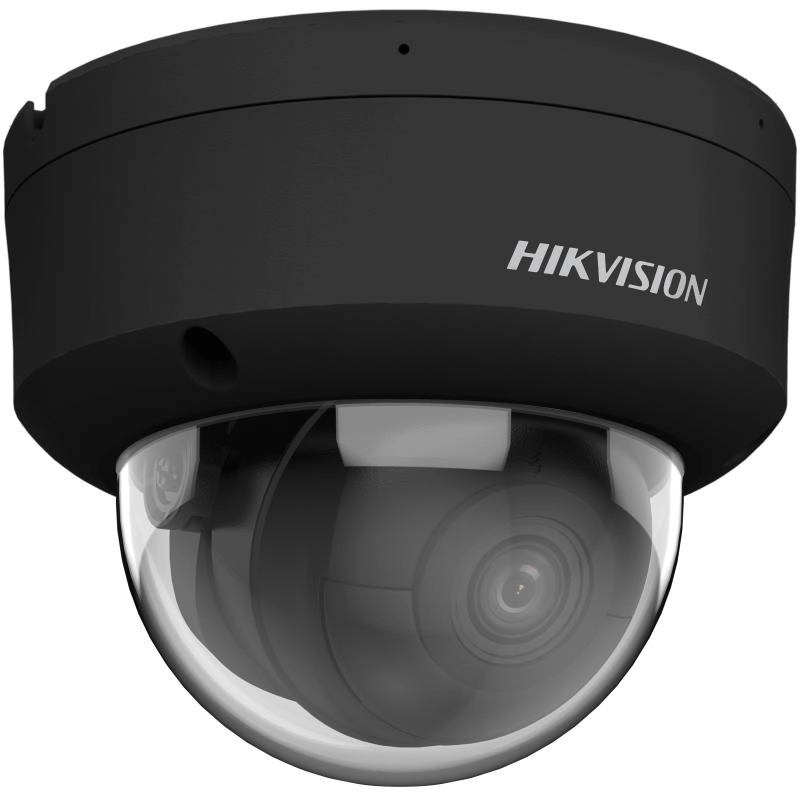

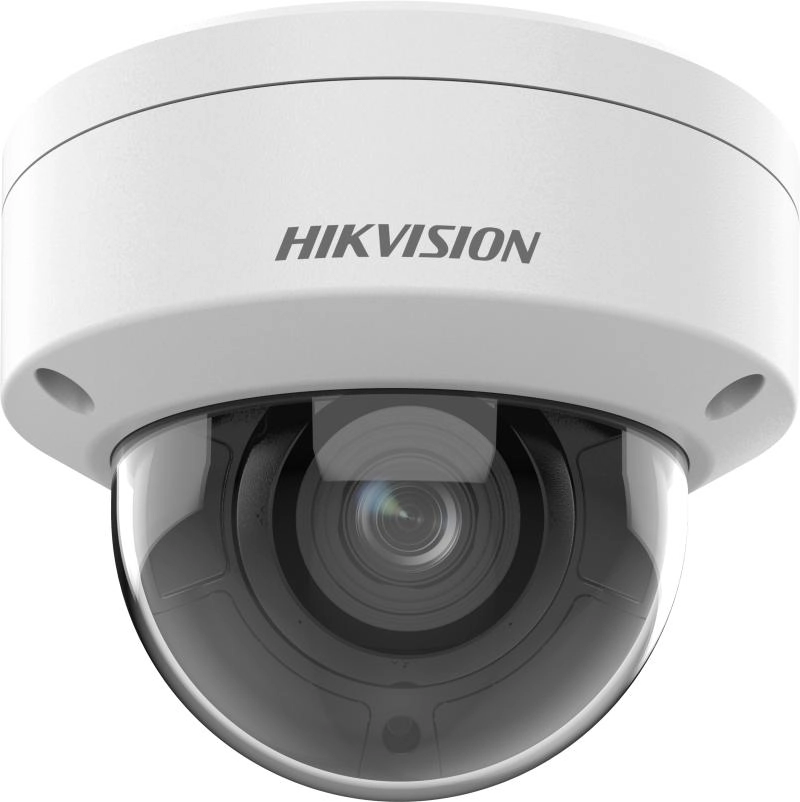

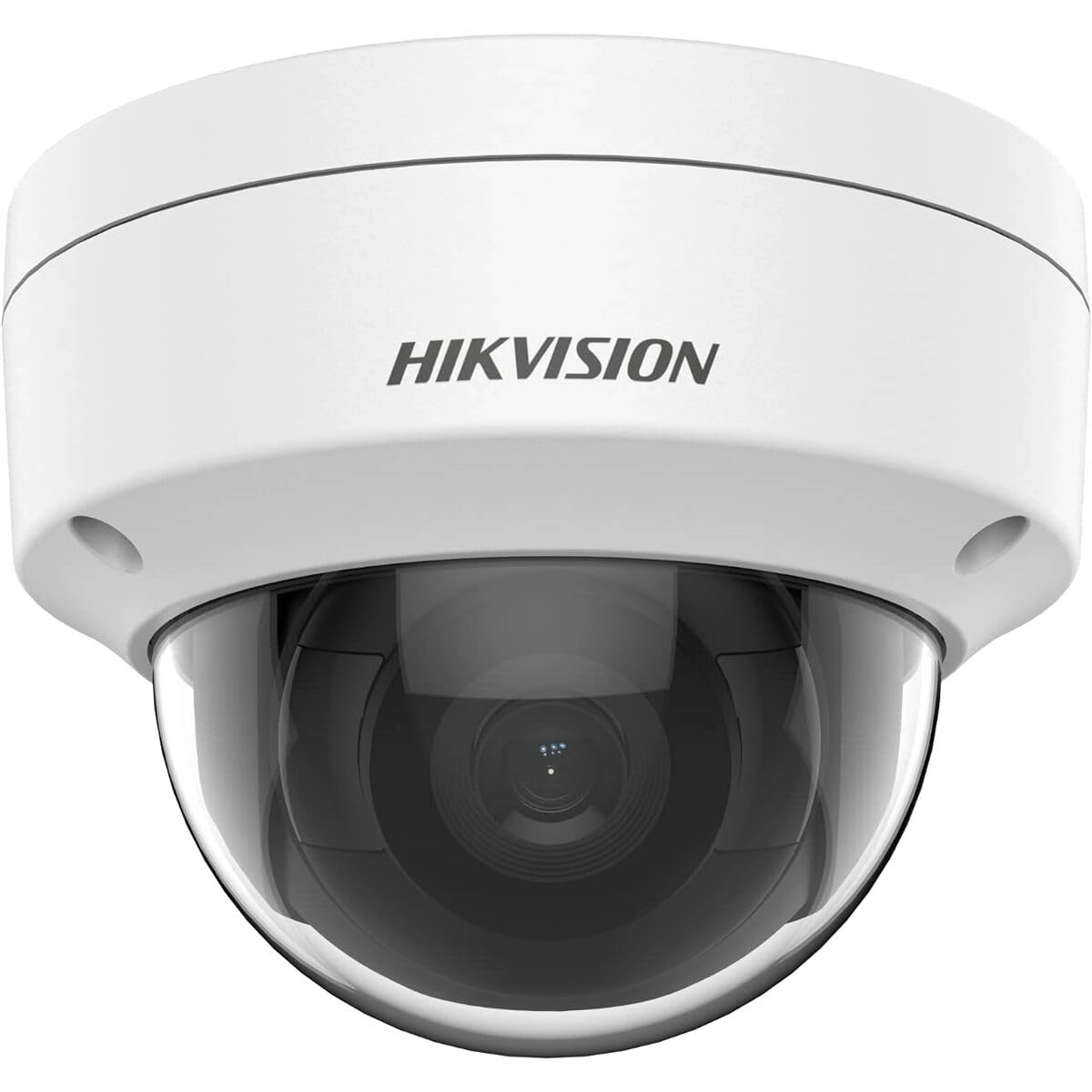

4 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond. By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.
