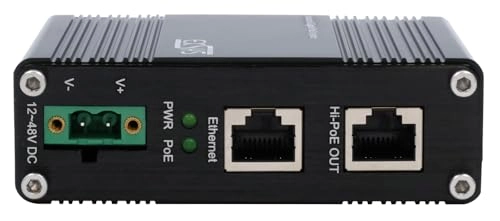

EXSYS EX-60310 - 42 to 57VDC 60W IEEE 802.3af/at 1000Mbps

PoE+ Gigabit injector 60W, -40°C to +80°C.

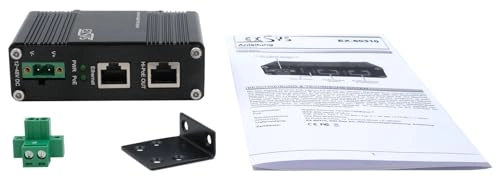

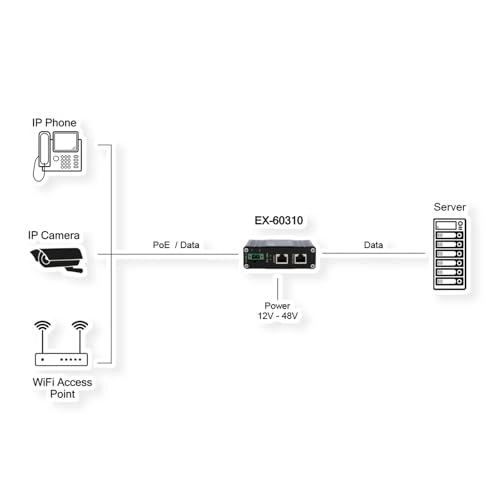

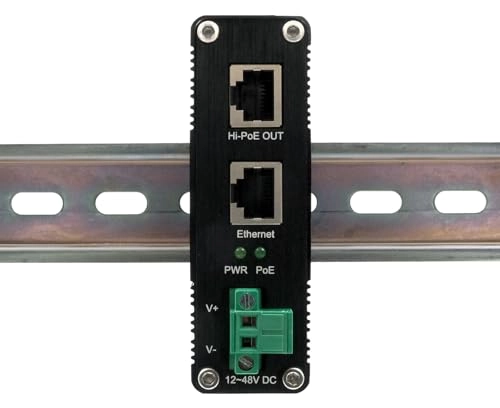

With the Gigabit Ethernet PoE Injector EX-60310 in a robust metal housing, terminal devices such as IP phones, IP cameras, WLAN access points etc. can be supplied with voltage via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) at the PoE port is 12.95 W in type 1 and 25.50 W in type 2, in addition, LTPoE++ with up to 60 W is possible. The power supply from an optional external power supply is via the +12~48V terminal block. The EX-60310 ensures secure data transfer and excellent performance of up to 1000Mbps. The robust metal housing and extended operating temperature range from -40°C to 80°C make it suitable for a wide range of applications even in harsh environments. Included is a DIN rack kit (pre-assembled) and a wall mounting bracket.

• Provides power to network devices via the data line • 10/100/1000Base-T Gigabit Ethernet • Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant • Maximum output power (PD): Type 1 = 12.95W / Type 2 = 25.50W / LTPoE++ = 60W. • Converts the input voltage to the PoE range from 42 to 57VDC high. • Plug and play, no configuration and installation required • LED status indicator for power supply and PoE. • Terminal block for DC input, +12 V to +48 VDC • Robust, compact metal housing, IP40 • Includes DIN rail kit and wall mounting bracket • Extended operating temperature range from -40°C to +80°C.
