EXSYS EX-60315 - 42 to 57VDC 90W 10/100/1000Base-T

PoE++ Gigabit injector 90 W, -40 °C to +80 °C.

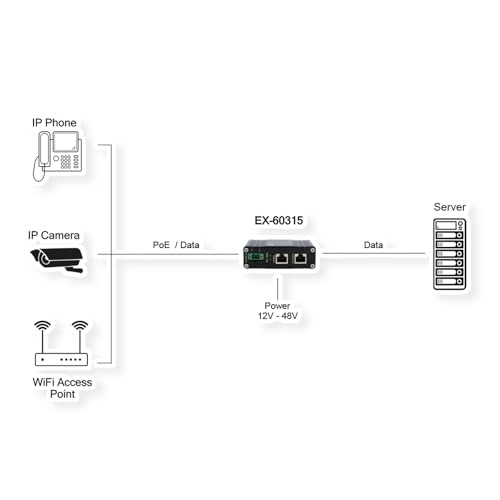

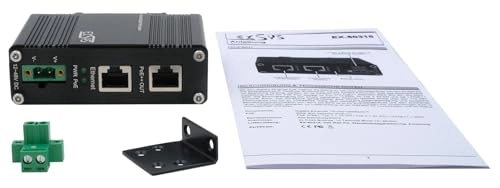

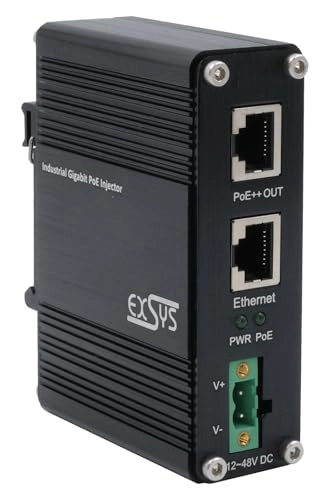

With the Gigabit Ethernet PoE Injector EX-60315 in a robust metal housing, terminal devices such as IP phones, IP cameras, WLAN access points etc. can be supplied with voltage via the network cable. It is compliant with the PoE++ standard IEEE 802.3bt. The maximum power (PD) on the PoE port is 12.95W, in Type 2 25.5W and LTPoE++ 90W. The power supply from an optional external power supply is via the +12~48V terminal block. The EX-60315 ensures secure data transfer and excellent performance of up to 1000Mbps. The robust metal housing and extended operating temperature range from -40°C to 80°C make it suitable for a wide range of applications even in harsh environments. Included is a DIN rack kit (pre-assembled) and a wall mounting bracket.

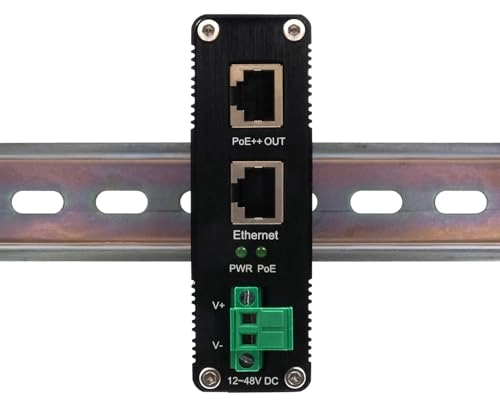

• Provides power to network devices via the data line • 10/100/1000Base-T Gigabit Ethernet • Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant • Maximum output power (PD): Type 1 = 12.95W / Type 2 = 25.50W / LTPoE++ = 90W. • Converts the input voltage to the PoE range from 42 to 57VDC high. • Plug and play, no configuration and installation required • LED status indicator for power supply and PoE. • Terminal block for DC input, +12 V to +48 VDC • Robust, compact metal housing, IP40 • Includes DIN rail kit and wall mounting bracket • Extended operating temperature range from -40°C to +80°C.
