Shenzhen Hi-Net Technology Co., Ltd. PE908 - 8 150W 52V DC IEEE 802.3af IEEE 802.3at 10/100/1000 Mbps

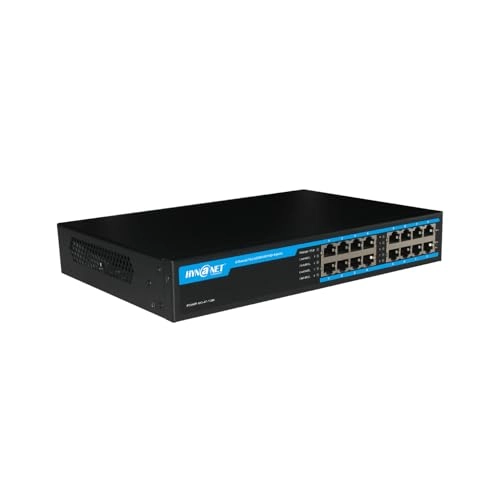

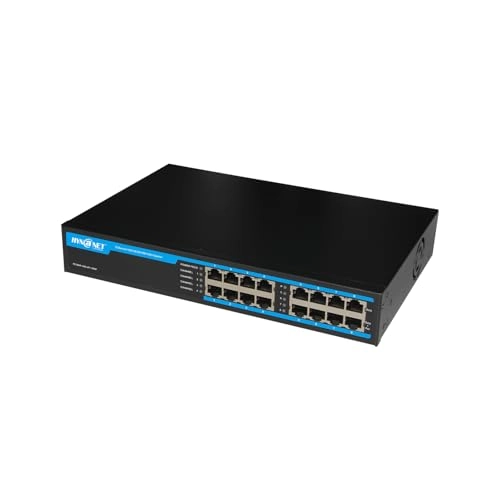

The PE908 is a 150w 8 port Gigabit Unmanaged PoE+ injector:

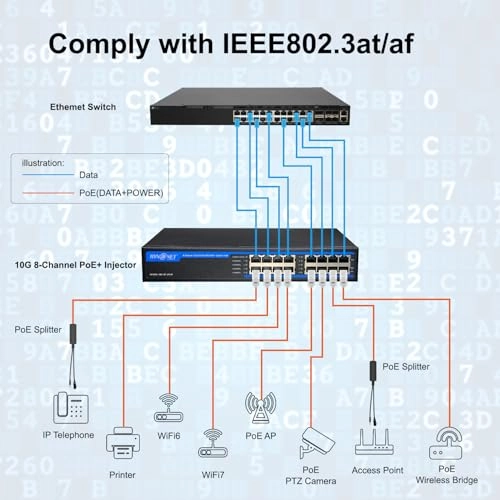

1.Offer a compact and cost effective, fully IEEE 802.3at compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.

2.Eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

Feature:

-No. of PoE Ports:8

-Output Power Voltage: 52V DC.

-User Port Power: 30W.

-Total Available Power:150W.

-Pass Through Data Rates:10/100/1000 Mbps.

-Pin Assignment and Polarity:1/2 (-), 3/6 (+).

-AC Input Voltage: 100 to 240 V AC.

-AC Input Current: 2.7A at 110 V AC.

-AC Frequency: 50 to 60 Hz.

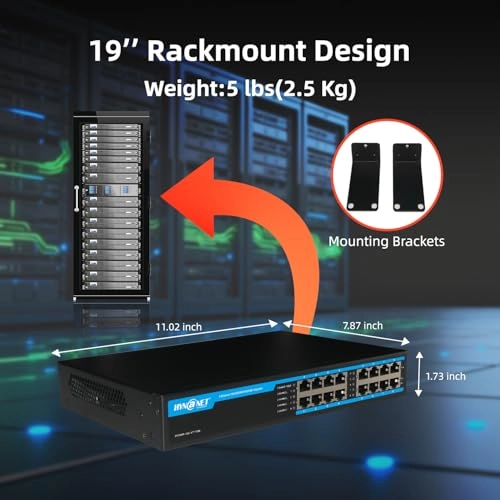

-Dimensions:270mmx180mmx44mm.

-Operating Ambient Temperature:-10 to 45℃.

-Operating Humidity:Maximum 90%, Non-condensing.

-Storage Temperature:-20 to 70℃.

-Storage Humidity:Maximum 95%, Non-condensing.

-Regulatory Compliance:IEEE 802.3af (PoE), IEEE 802.3at (PoE+).

-RoHS Compliant, CE, FCC.
