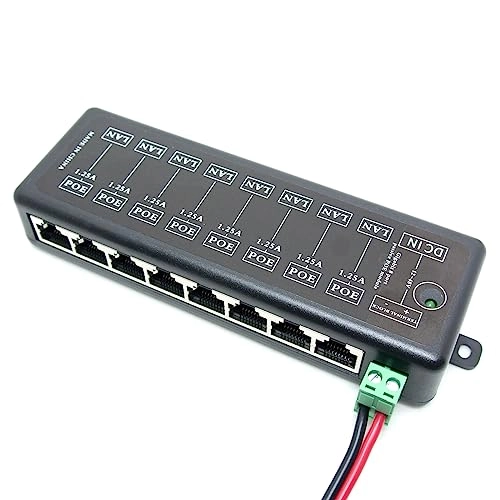

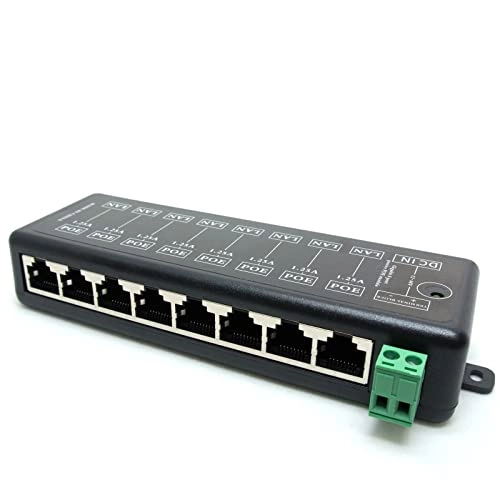

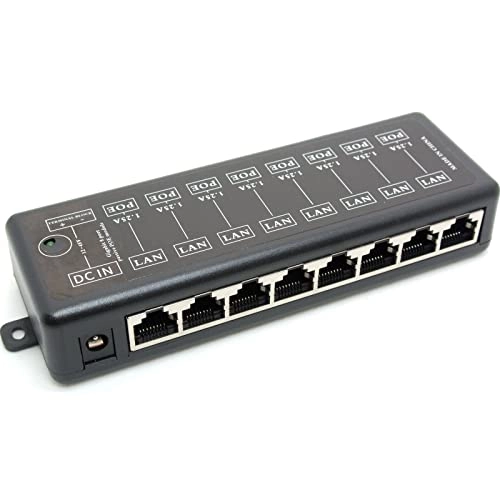

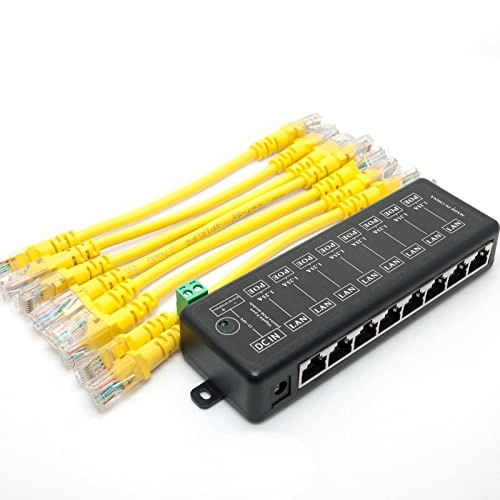

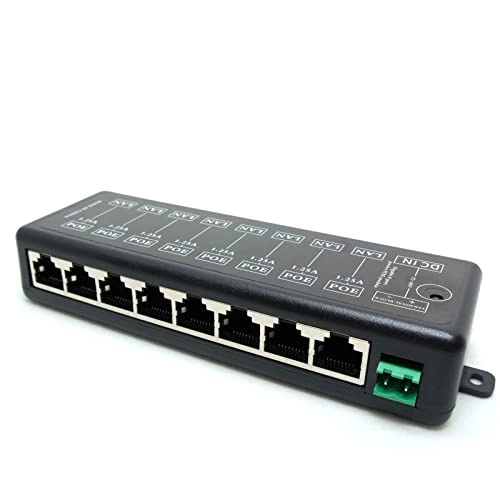

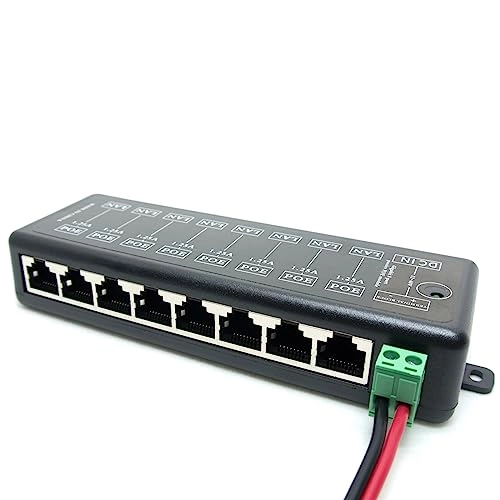

DSLRKIT 8 PORT POE INJECTOR - 12~48V DC 10/100/1000M

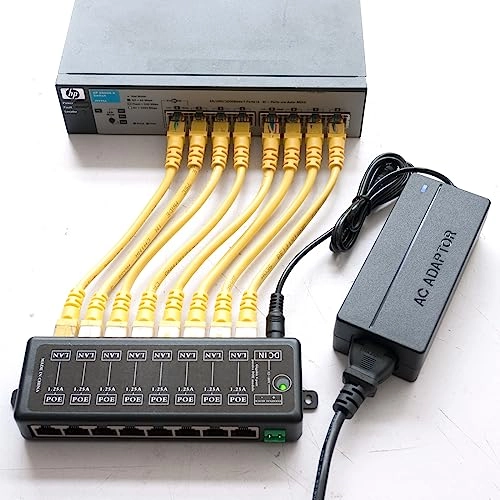

8 PORT POE INJECTOR supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. This poe splitter can be used with any Ethernet switches. It can still manage and view every network ports as before when worked with managed switches as opposed to a normal unmanaged POE switch. Features: Compatible with 10/100/1000Mbps fast ethernet Use with any ethernet switch Ideal for PoE IP Cameras,VOIP,AP 8 Port Injector(8 Lan&8 Lan+PoE port) Midspan Mode-B Unsolicited Power(4,5+/7,8-) Additional terminal block power input port Per port Maximum current: 1.25A Supports 12~48V DC power supply Power Input Supports INPUT 12-48V DC power supply Power DC port 5.5 x 2.1mm,inside positive (+) outside negative (-) LAN data pin: RJ45 pin1 pin2 pin3 pin4 pin5 pin6 pin7 pin8 LAN Data In: Connects PC/Router/Switch PoE Power on RJ45 Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8 DC Output: 12-48V, Per PoE port Max 1.25A, Product Dimensions 165mm x 50mm x 28mm Temperature Operation Temperature:0 ~40¡æ (32 ~104¨H) Storage Temperature: -40 ~70¡æ(-40 ~158¨H) Humidity Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing Item Included: 8 Ports Gigabit Passive PoE injector x1 2pin power input port terminal block x1 15cm 568B CAT5E Ethernet RJ45 Patch Cable x8 (Power supply not included) This item do not include the power adapter, you need to buy an extra power adapter according to your requirement. Please use DC48V-55V power supply for 802.3af /802.3at PoE device, DC24V power supply for 24V PoE device.
