Cambium Networks cnPilot e700

Unavailable

Key Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate (2.4 GHz): 400Mbit/s
Maximum data transfer rate (5 GHz): 1733Mbit/s
Fit AP mode features: Hotspot 2.0, Mesh networking
Fast roaming: Yes
Antenna features: Integrated antenna
Number of VLAN IDs: 4096
Number of SSID supported: 16
Antenna direction type: Omni-directional
Maximal-Ratio Combining (MRC): Yes
PoE adapter included: Yes
Cyclic Delay Diversity (CDD): Yes
Cyclic Shift Diversity (CSD): Yes
Service Set Identifier (SSID) features: SSID broadcast on/off

Specifications

Features

Mean time between failures (MTBF)

2283737 h

Antennas quantity

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, AES, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, SNMP, SNMPv3, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK

MIMO

✓

Virtual LAN features

SSID-based VLAN assignment, Tagged VLAN

Product colour

White

Antenna gain level (max)

8 dBi

Maximum data transfer rate

2133 Mbit/s

Access Control List (ACL)

✓

DHCP server

✓

Placement

Pole, Wall

Band steering

✓

Configuring Location Settings (CLI)

✓

Frequency band

2.4 – 2.4835, 5.15 – 5.85

Cyclic Delay Diversity (CDD)

✓

Cyclic Shift Diversity (CSD)

✓

Number of VLAN IDs

4096

Fast roaming

✓

Fit AP mode features

Hotspot 2.0, Mesh networking

Maximum data transfer rate (5 GHz)

1733 Mbit/s

Maximum data transfer rate (2.4 GHz)

400 Mbit/s

5 GHz

✓

2.4 GHz

✓

Weight & dimensions

Weight

1700 g

Height

315 mm

Depth

66 mm

Width

215 mm

Management features

Web-based management

✓

Syslog

✓

Data unit aggregation

A-MPDU

Maximal-Ratio Combining (MRC)

✓

Power

Power consumption (typical)

18 W

Power consumption (max)

24.60 W

Power over Ethernet (PoE)

✓

Performance

Transmitting power

28 dBmW

Wi-Fi roaming

✓

Airtime Fairness (ATF)

✓

Wireless LAN features

VPN support

PPPoE

IGMP snooping

✓

Wi-Fi Multimedia (WMM)/(WME)

✓

Other features

Cable lock slot type

Kensington

Design

International Protection (IP) code

IP67

Reset button

✓

LED indicators

Yes

Cable lock slot

✓

Internal

✗

Antenna direction type

Omni-directional

Computer system

Antenna type

Internal

Packaging content

PoE adapter included

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

Management protocols

HTTP / HTTPS, SNMP V1, SSL, Telnet, V2, V3

VLAN support

✓

Cabling technology

10/100/1000Base-T(X)

Channel bandwidth

80 MHz

Ethernet LAN data rates

10, 100

MIMO type

Multi User MIMO

Automatic channel selection

✓

Ports & interfaces

DC-in jack

✗

Ethernet LAN (RJ-45) ports

USB 2.0 ports quantity

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

CE, EN 60601-1-2, EN60601-1-2, ETSI, FCC, IC, IEC60950 Ul2043, RoHS, UL, WEEE

Spread spectrum method

DSSS

Compliance certificates

Security

Remote Authentication Dial-In User Service (RADIUS)

✓

Wireless Intrusion Detection System (WIDS)

✓

Service Set Identifier (SSID) features

SSID broadcast on/off

Number of SSID supported

Antenna

Antenna features

Integrated antenna

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK

Product Details

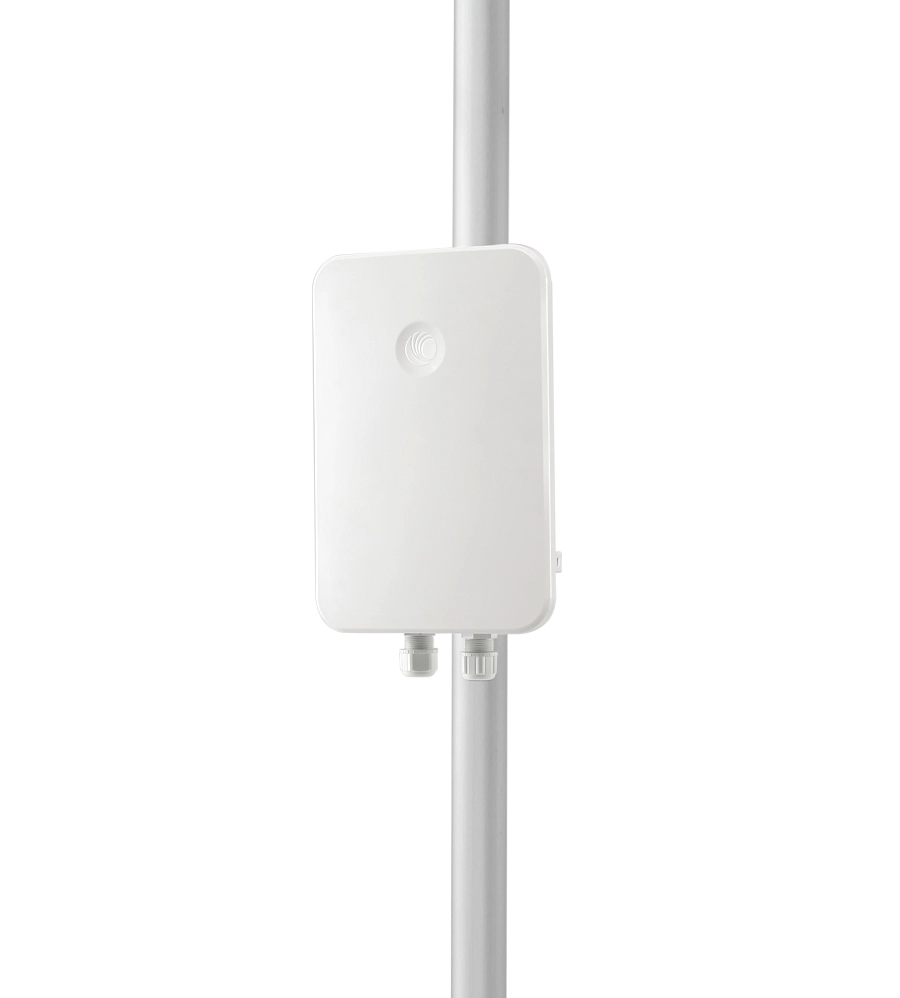

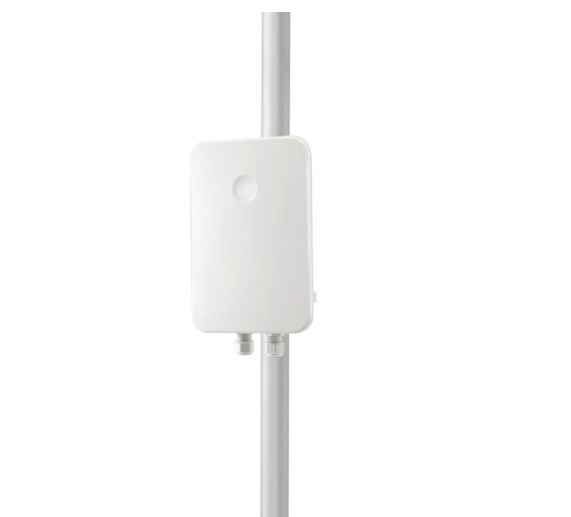

cnPilot e700 Enterprise Outdoor cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.

Files

Product Brochure

mmo_70494208_1556886444_8015_11623.pdf

PDF• 723.9 KB
