Cambium Networks XV2-22H

Name: Cambium Networks XV2-22H
Brand: Cambium Networks
SKU: 348063
Availability: InStock

Best offer

AED

2 746⁴⁶

Key Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate (2.4 GHz): 574Mbit/s
Maximum data transfer rate (5 GHz): 2402Mbit/s
Antenna direction type: Omni-directional
Antenna gain level (max): 5.18dBi
Placement: Wall
Antenna type: Internal
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10, 100Mbit/s
Product colour: White
Cable lock slot: Yes
LED indicators: Yes
MIMO: Yes

Specifications

Features

Security algorithms

WPA-PSK, WPA2, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-SAE

MIMO

✓

Product colour

White

Antenna gain level (max)

5.18 dBi

Placement

Wall

Maximum data transfer rate (5 GHz)

2402 Mbit/s

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

5 GHz

✓

6 GHz

✗

2.4 GHz

✓

Weight & dimensions

Weight

417 g

Height

32 mm

Depth

105 mm

Width

160 mm

Power

Power consumption (max)

20 W

Power over Ethernet (PoE)

✓

Other features

Cable lock slot type

Kensington

Design

LED indicators

Yes

Cable lock slot

✓

Antenna direction type

Omni-directional

Computer system

Antenna type

Internal

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w

Supported network protocols

DHCP Relay option 82 LLDP, DHCP server, DOS protection, IGMP v1, L2/L3/DNS ACL, NAT, NAT logging firewall, RADIUS attribute VID VLAN per SSID, per user Integrated WIDS (wireless intrusion detection), v2 VLAN Pooling

Management protocols

HTTP / HTTPS web interface, NTP, SNMP traps, SSH, Telnet SNMP V1, V2, V3 Syslog

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95 %

Technical details

Certification

802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, 802.11u, CE, EN 60601-1-2, ETSI, HotSpot 2.0, IC, IEC60950, PP2.0 FCC, Passpoint 3.0

Product Details

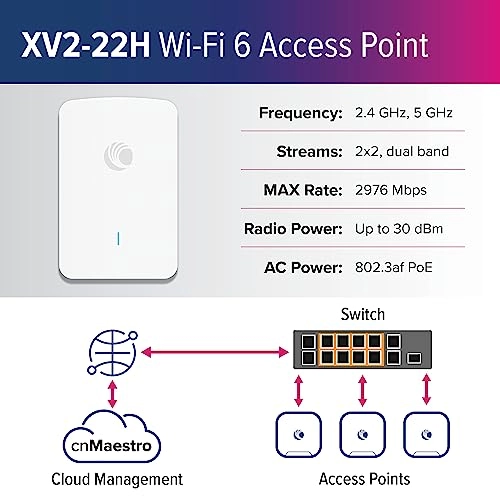

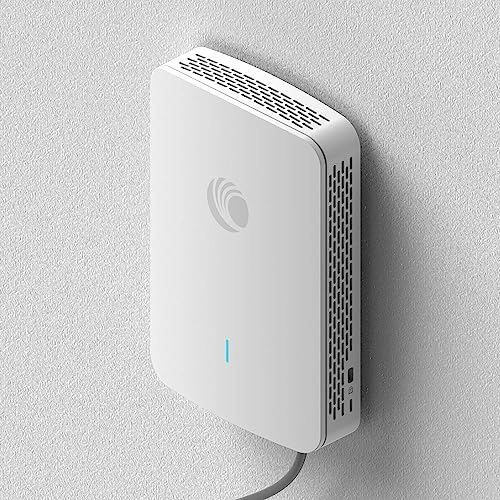

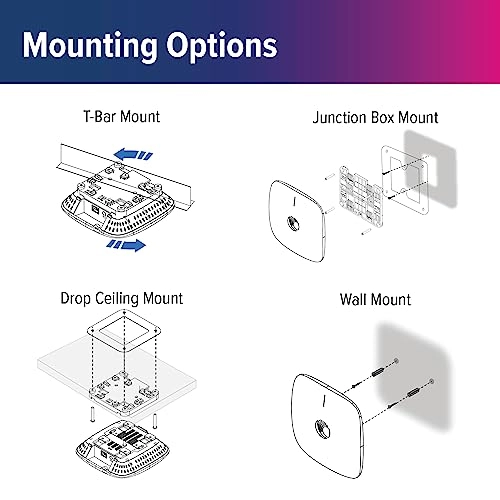

Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box. Cloud-Managed Access cnMaestro X is a simple, yet sophisticated cloud-first, next generation network management solution for Cambium Networks wireless and wired solutions. cnMaestro X offers elastic scalability and singlepane-of-glass management to deliver secure, end-to-end network and wireless lifecycle management with zero-touch provisioning, monitoring and troubleshooting capabilities. It simplifies operations and ongoing maintenance.

Files

Product Brochure

mmo_103424664_1685368513_64_19403.pdf

PDF• 1.1 MB
