B&W Cases AHD30PD13S

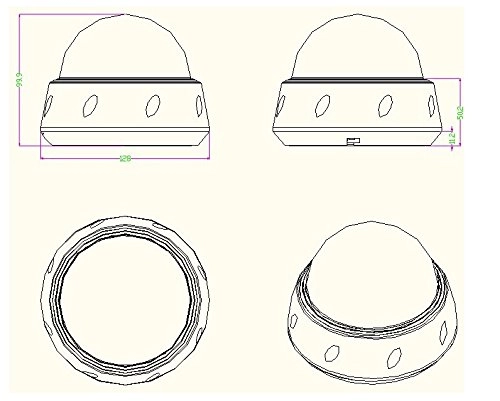

Model AHD30PD13S 1.3MP AHD Color IR Dome CCTV Camera Pickup Device 1/3" Mega pixel Color CMOS (IMX238) Resolution AHD 720P / CVBS 800 TVL System PAL/NTSC Total pixels 1312(H)×1069(V) 1.4Mega Pixels Effective Pixels 1280(H)×1024(V) 1.3Mega Pixels Min.illumination Color:0.02Lux(F1.2,50IRE,AGC ON),Black and White:0.0008Lux(F1.2,50IRE,AGC ON) Electronic Shutter PAL ：1/50 ～ 1/100,000s NTSC：1/60 ～ 1/100,000s WDR Digital WDR Frame accumulation 0-30X 2D-DNR Off / Low / Middle / High Image Freeze Support BLC/HLC Support Anti-fog 0-2 grade S/N Ratio >60dB (AGC Off) White Balance Auto White Balance Day & Night ICR switch Mirroring Horizontal mirror / vertical mirror Privacy Mask Support Language Chinese / English / German / French / Italian / Spanish / Portuguese / Russian / Dutch / Turkish / Poland OSD Support Video Output 1.0Vp-p composite output, 75Ω Power Supply DC12V ±10% Infrared Lamp 30pcs φ5/850nm Infrared Lamp IR Distance 15-20m Power Consumption 60mA/260mA（IR ON） Lens 2.8-12mm Manual Focus Lens Size φ128*100mm Weight 0.36KG Operating Temp. -20℃ ~ 60℃ Humidity Relative humidity below 90%
