Ansjer Electronics Co., Ltd. CCTV Camera System 1080p

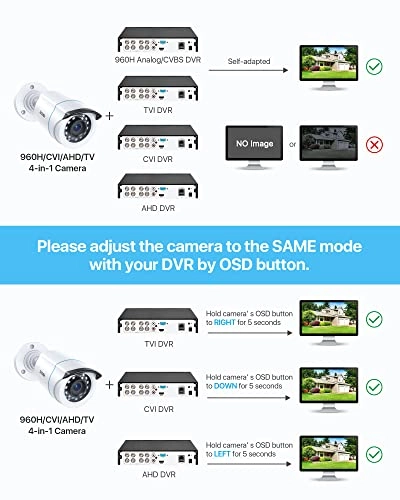

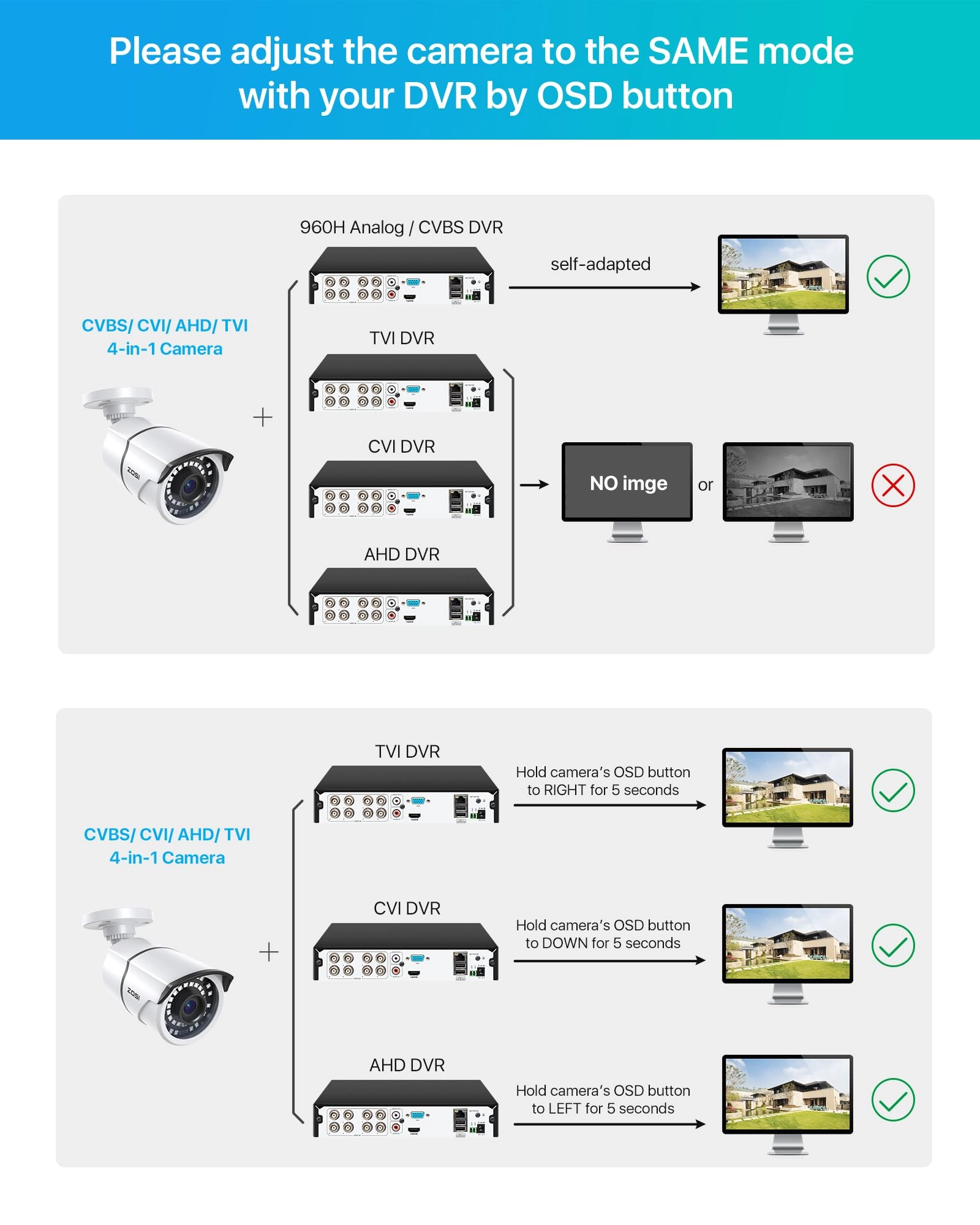

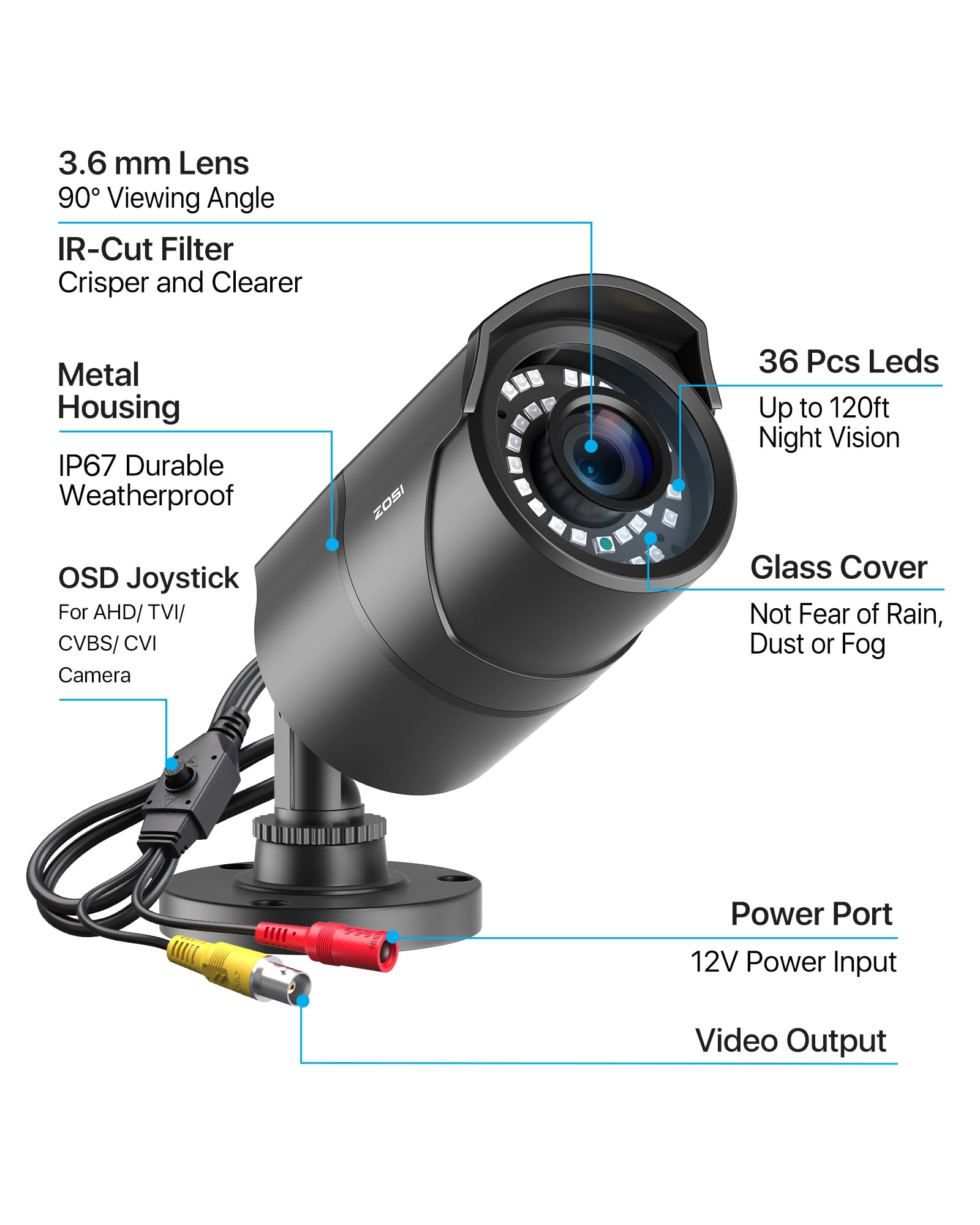

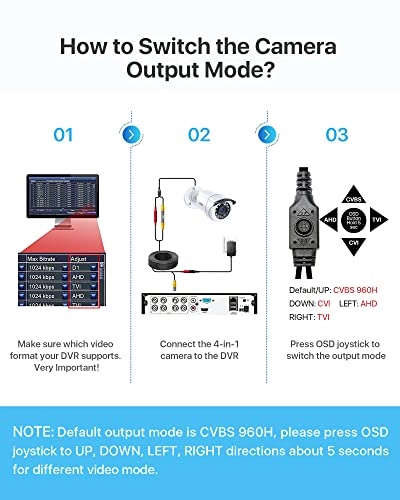

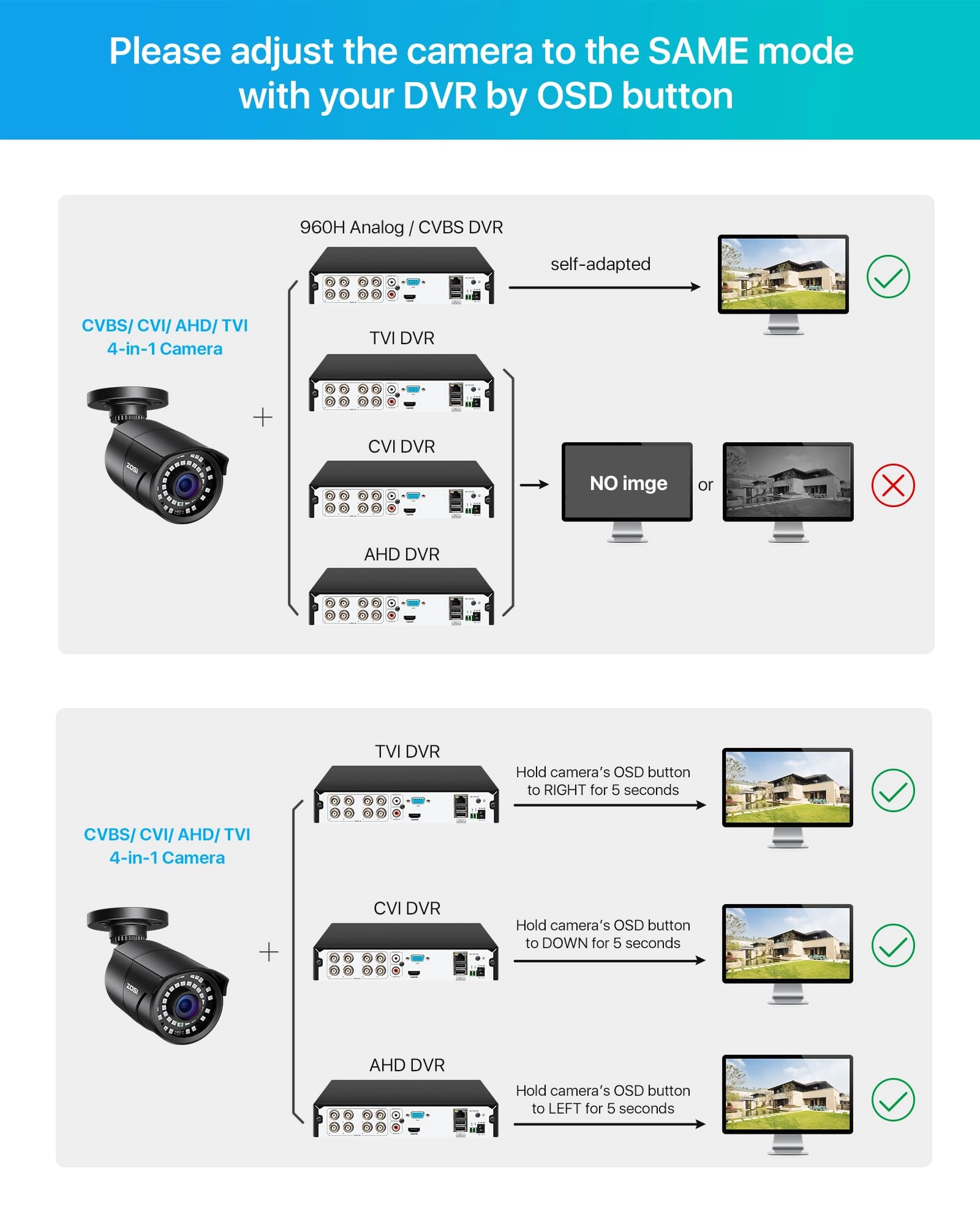

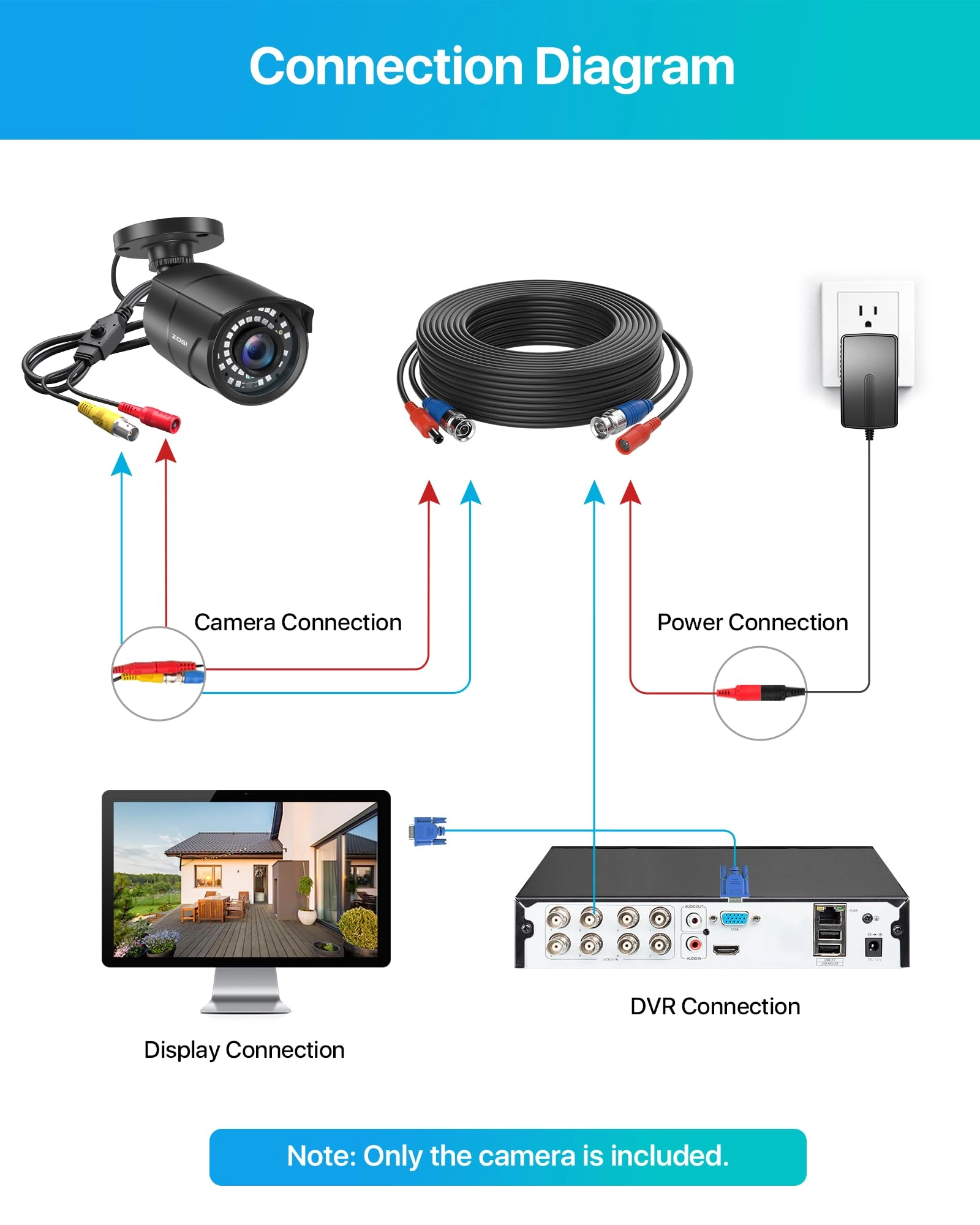

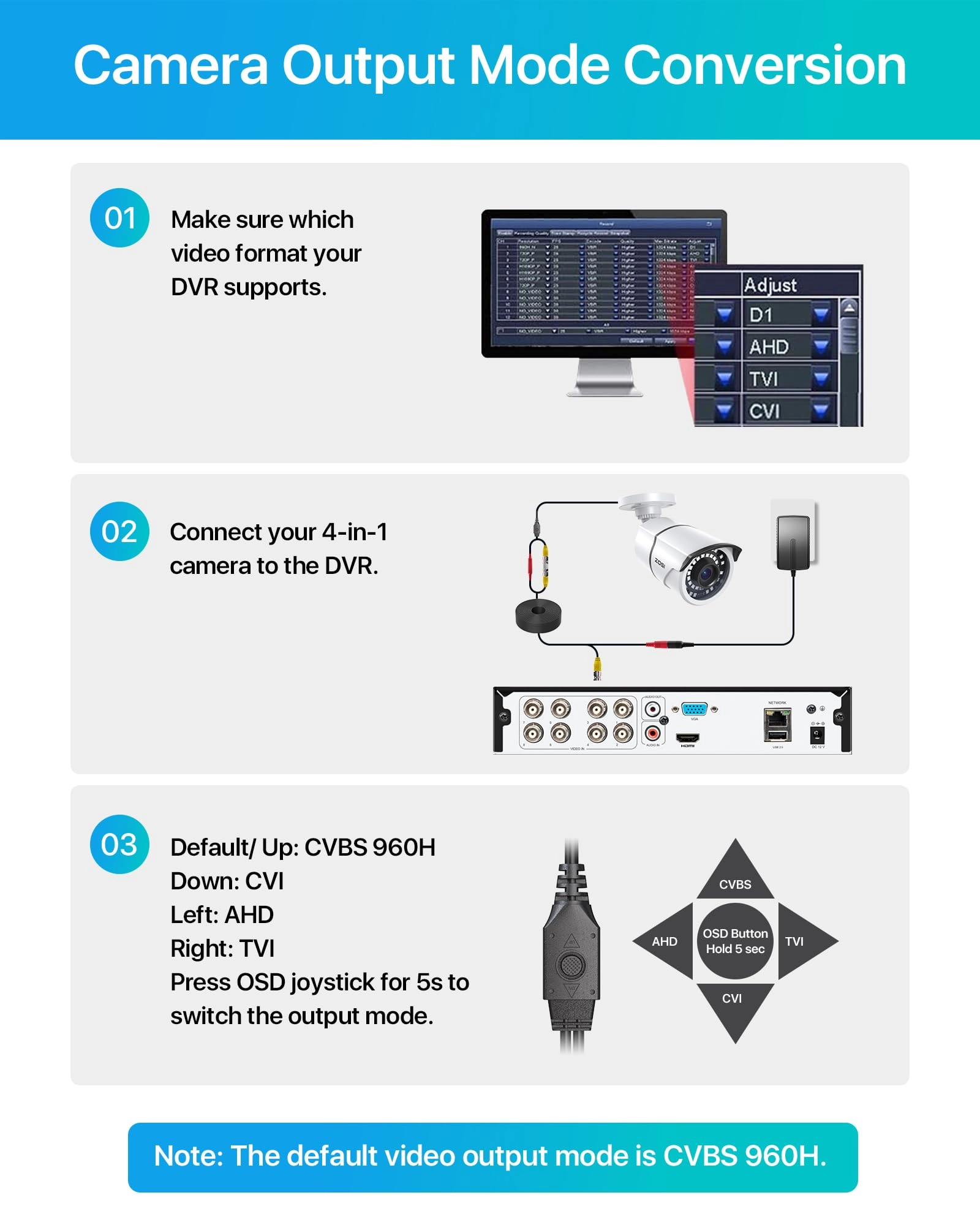

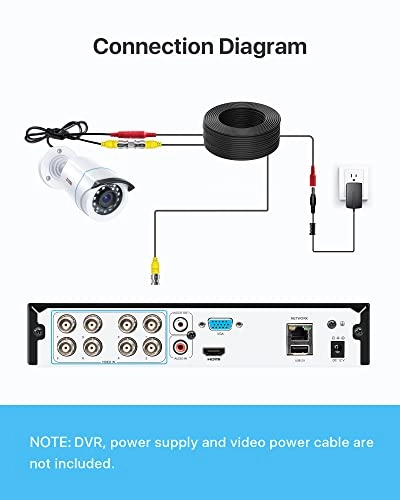

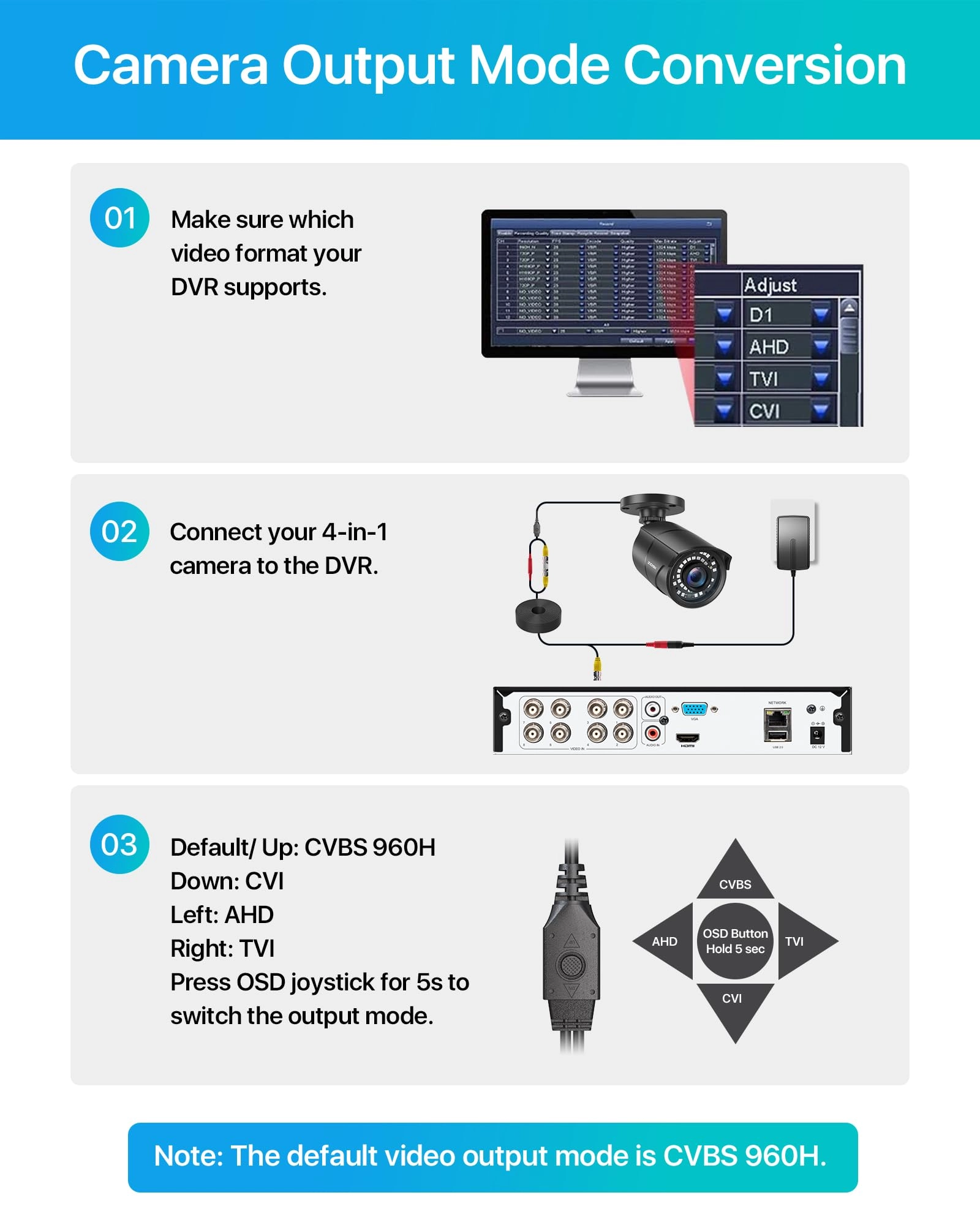

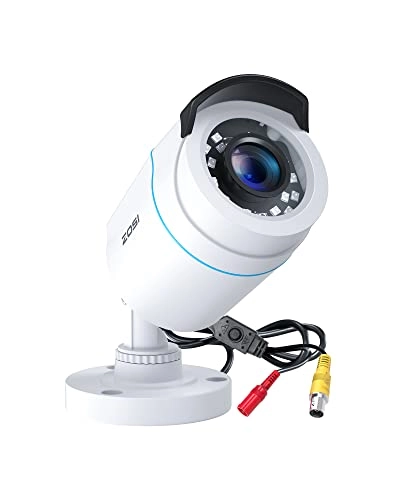

Product Description 1080P 4-in-1 Security Bullet Camera Press OSD joystick to switch the output mode Default / Right for 5 seconds: CVBS 960H Down for 5 seconds: CVI Left for 5 seconds: AHD Up for 5 seconds: TVI Security Camera Specification This camera is recommended to work with a security DVR. This camera needs to be wired with bnc video cable and power cable. Image Sensor: 1/3〞CMOS CMOS with IR-Cut. Lens: 3.6mm Active Pixels: 1920(H)×1080(V). Singal mode: CVBS 960H / TVI / AHD / CVI. IR LEDs Amount: 36pcs, 3mm LEDs. IR Distance(night vision): up to 120ft. Made: Aluminum Metal Casing Power supply: 12V 500mA This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings. Operation Mode： Switch from AHD: Press Leftward for 5 Seconds Switch from TVI: Press Rightward for 5 Seconds Switch from CVBS: Press Upward for 5 Seconds Switch from CVI: Press Downward for 5 Seconds Noted: Default Video Mode is Analog 960H Mode Q: Video Loss appears where the image from my camera should be displaying on my DVR? A: 1.Check the extension cable (power and video) is securely connected to the camera. 2.Check the video output from the camera is securely connected to a video input channel on the DVR. 3.Check the power from the camera is securely connected to a power supply. 4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode. 1080p Full HD See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras. Flexible Installation Mount this camera on the ceiling or on the wall. It’s simple to place it anywhere indoor and outdoor for all-round surveillance. Ready for Outdoor Surveillance With weatherproof and full metal housing , this security camera can stand on guard anywhere, outdoor or indoor, even in harsh weather conditions. Review: Not gone Poe yet - Had a need to review footage from my cameras recently. Soon discovered they were well past their best. Decided to replace. Found this Zosi camera on desertcart, looked good specs and the fact it’s metal as opposed to plastic, I thought I’d give it a go. Price was attractive too with a further 10% off so I ordered. Installed directly where my existing camera was and in 5 minutes I had fantastic quality pictures in 1080 p resolution. Night vision is brilliant with little or no loss in quality. The motion sensing through my dvr is impressive too. Great little 2K camera would recommend to anyone. Review: Great Camera Great Technical Support - After some initial difficulties setting the camera up ( I am not very technically minded) Paul from technical support helped me set up the camera. I am very impressed with the quality of the picture. The desktop app is very good too. Overall, I would recommend that if you are looking for a inexpensive camera to monitor people coming to your door with 2-way audio you can't go wrong with the ZOSI 5MP PoE Security Camera.
