Beijing Creative Lianjie Network Technology Co.,Ltd PT-PSE105GS-E - 55V 30W 2 ports

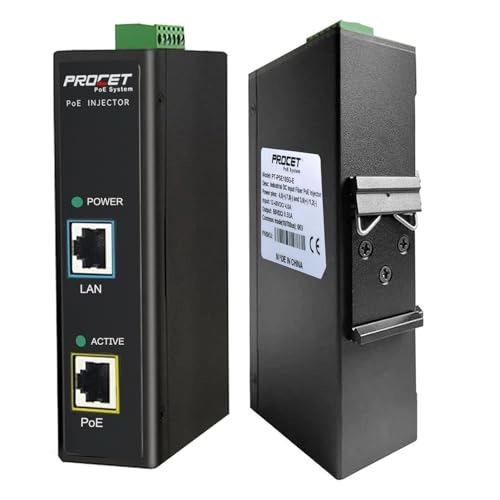

PT-PSE105G-E is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55Vdc, at 0.55Amp with 6Kv surge protection.

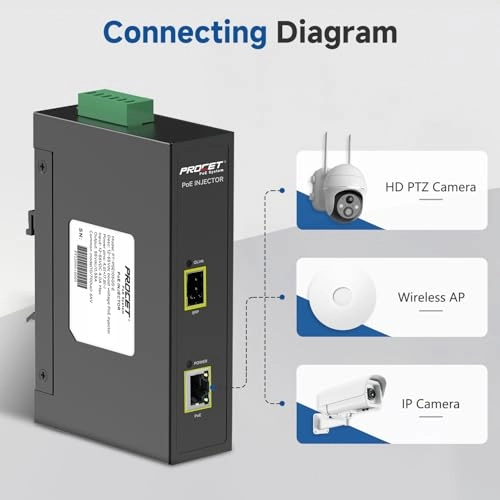

Designed for the PoE+ powered 30W PoE Powered Devices (PDs),such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks,displays, POS, and information kiosks. It supports 10/100/1000Mbps of datarates.

Fully comply with IEEE802.3at and remains compatible with anyIEEE802.3af compliant devices. Equipped detecting chip inside, which willdetect and classify PD before powering it, protecting non PoE device.

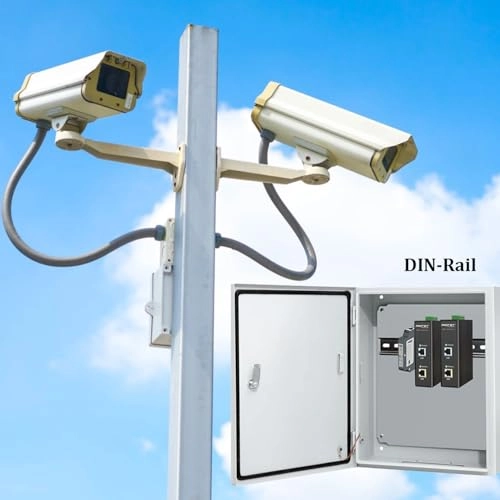

Enclosed in an IP40 high-impact metal case with DIN Rail mountbracket, designed for indoor use but can work outdoor by covered withwaterproof case. It works with a wide input voltage of 12-48Vdc make itpossible for solar application and operates under -40℃ to +65℃, Forplanning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Pass Through Data Rates: 10/100/1000 Mbps

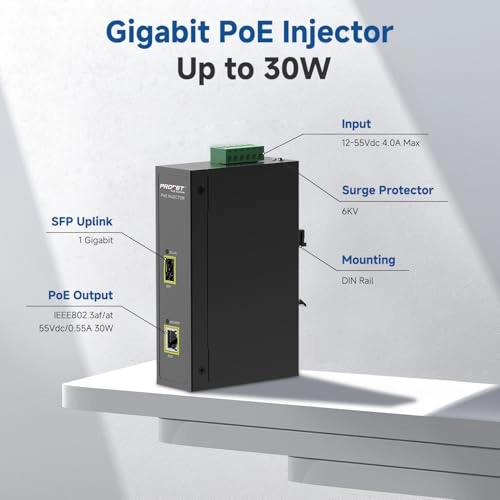

Input&Output:

Pin Assignment and Polarity:4/5 (+), 7/8 (–)

Output Power Voltage: 55Vdc

User Port Power: 30W Guarantee

DC Input Voltage: 12 to 48 Vdc

DC Input Current: 4.0A

Working Environment:

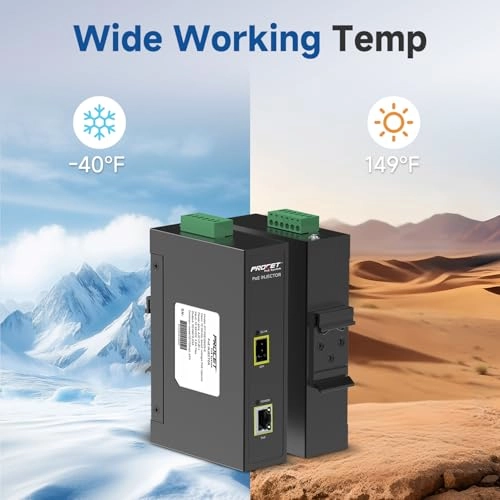

Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

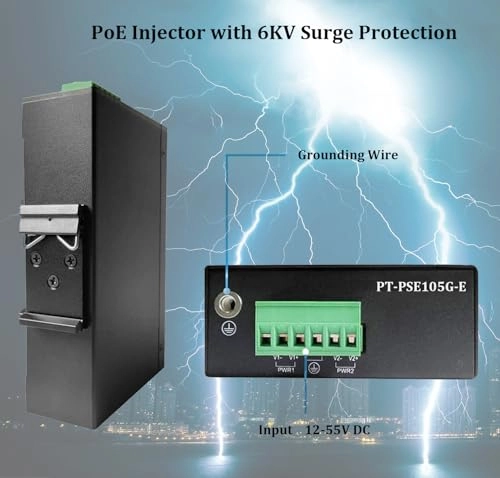

PoE Surge Protection:

Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

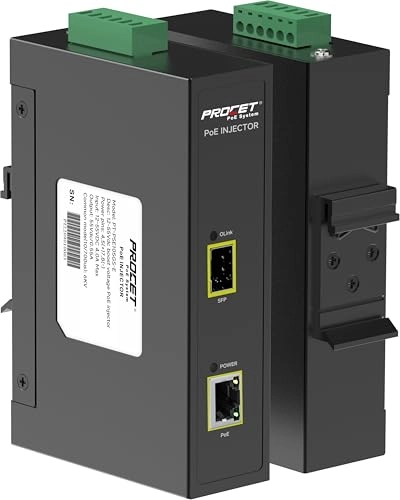

Mechanical Characteristics:

Case: Metal

Color: Black

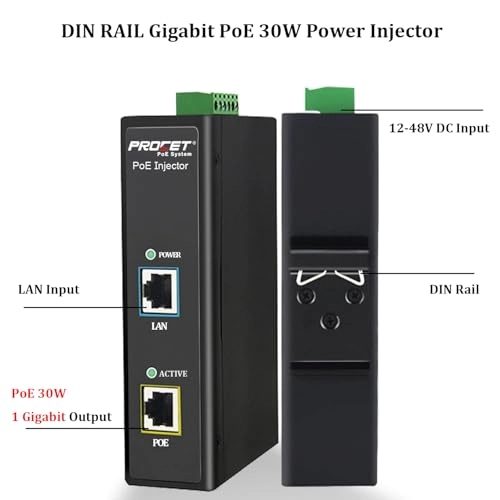

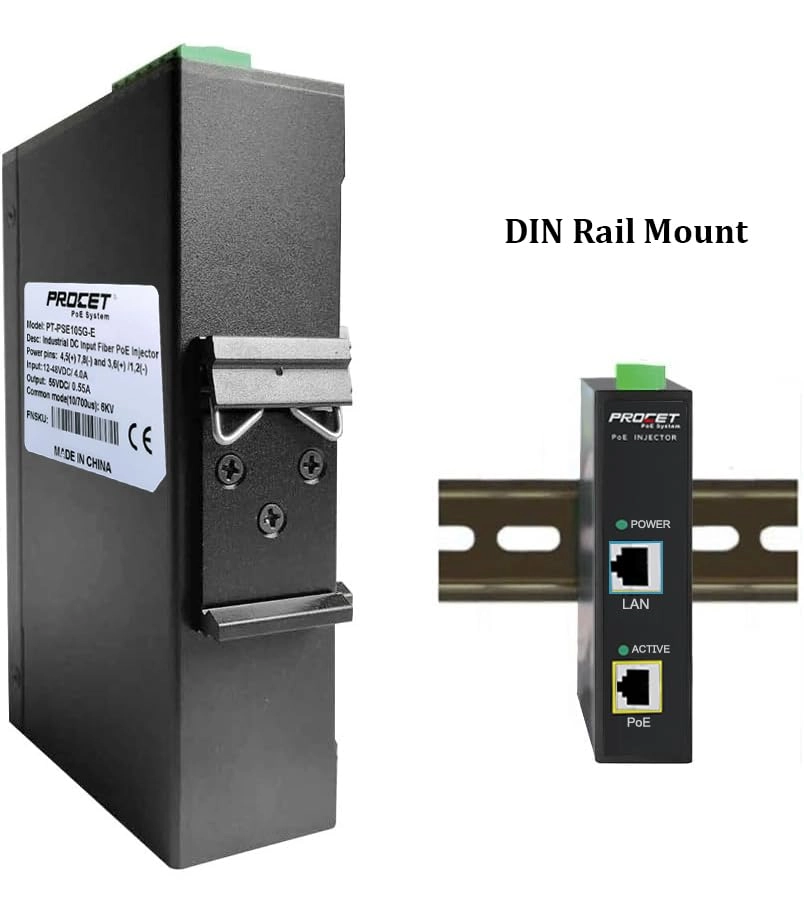

Mounting: DIN-rail

IP Rated: IP40

Connectors: Shielded RJ-45*2

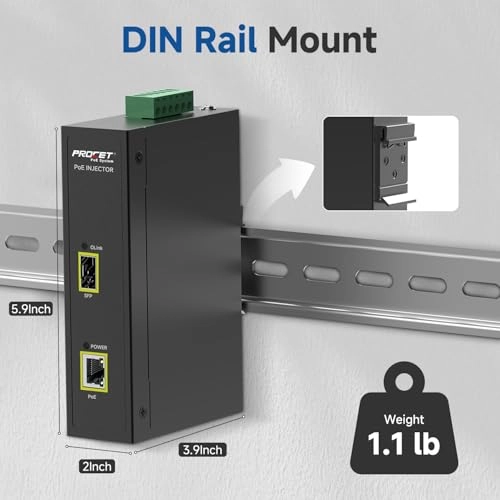

Size: 144.5mmX 95mmX 35.4mm

Weight: 400g（0.88lb）
