Creative Lianjie Network Technology Co.,Ltd PT-PSE107GHRO-A - single port 75W 55V IEEE802.3bt 10/100/1000Mbps

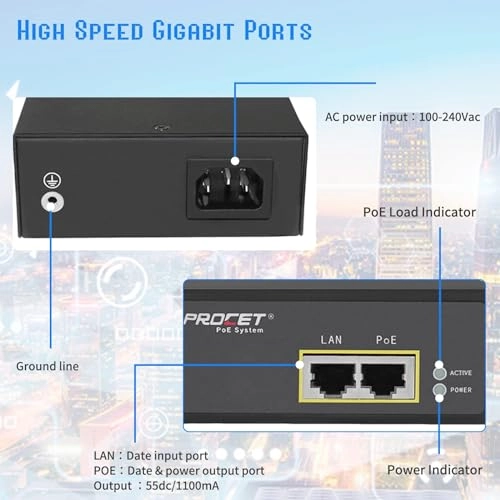

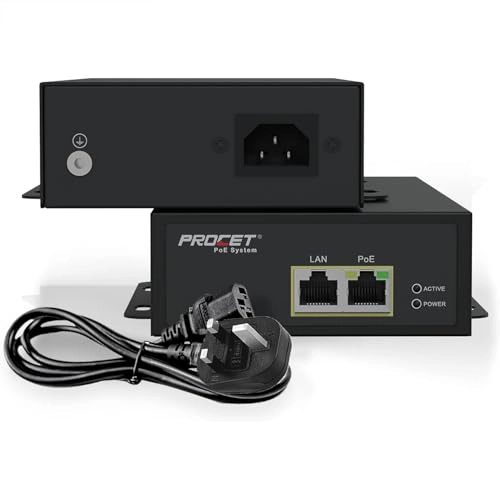

PT-PSE107GHRO-A is a single port midspan Injector with 4 Pair PoE up to 75 watts of power at 55 Vdc at 1.36 Amp with 6Kv surge protection. Designed for the PoE++ powered 75W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device. Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables. - Input :AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) - Output: 55Vdc 1360mA - Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) - Data Speed: 10/100/1000Mbps Standard - IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-Tx Fast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - Full compliant with IEEE802.3af/at, PoE++ - RoHS Compliance - WEEE Compliance Working Environment - Operating Temperature: -40 to 65 - Operating Humidity: 20% to 80%, non-condensation - Storage Temperature: -40 to 85 - Storage Humidity: 10% to 90%, non-condensation - Operating Altitude: up to 5000meters Mechanical Characteristics - Case: Metal - Color: Black - Mounting: Wall-mounted - IP Rated: IP20 - Size: 204mm X 130mm X 41mm - Weight: 737g - Packing.：UK Power Cord x 1(1.5 meters), Manual x 1
