Beijing Creative Lianjie Network Technology Co.,Ltd PT-PSE105GWH-E - 55V 95W single output port IEEE802.3af/at/PoE++ 10/100/1000Mbps

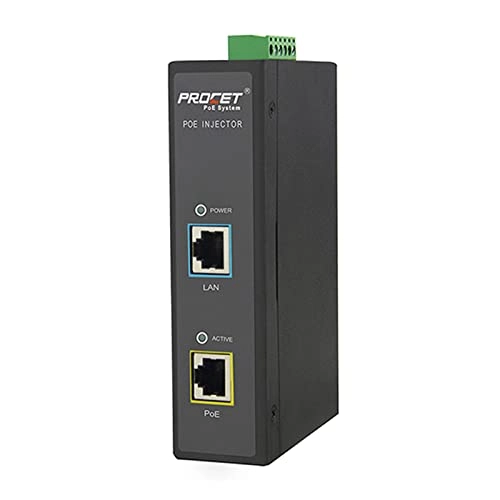

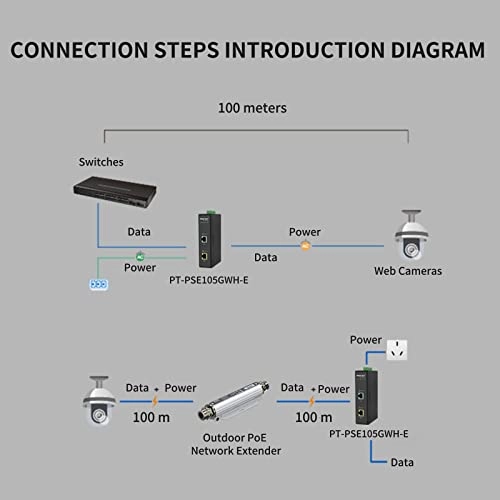

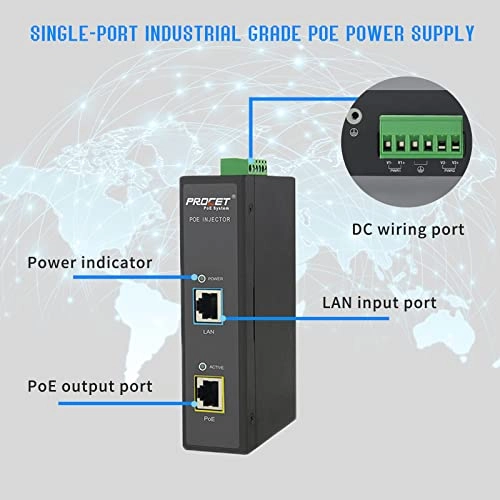

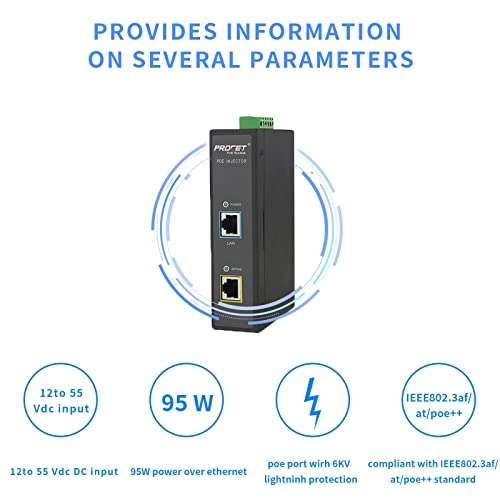

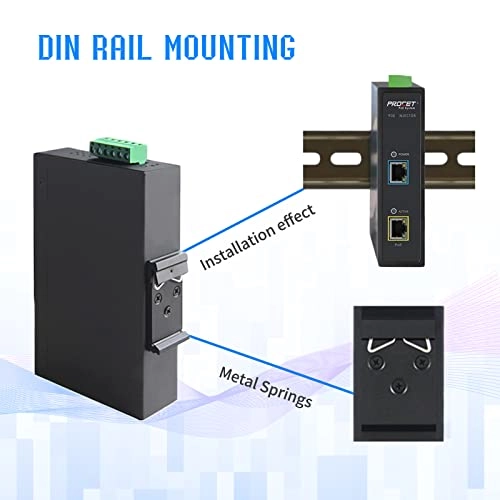

More and more people are cutting the cord and going solar, Solar to PoE++: Whether you have a remote PTZ Camera or Wifi, this injector can take a wide range of input power and deliver constant PoE++ with surge protection.An Industrial rated PoE injector/midspan specially designed for complex backhaul and networking applications. Enclosed in a high-impact IP40 metal case. The data rates is at 10/100/1000Mbps. The single output port delivers 55V, 1.75A power via 4 pair for remote PD with 6KV (10/700us) surge protection. It works with input voltage of 12-55Vdc makes it possible for solar application. The output voltage is a fixed one at 55V.Wide temperature extend to -40℃ to +75℃. The output port equipped detecting chip which is compliant with IEEE802.3af/at/PoE++ can power up wireless APs, IP cameras, Microwave radio, base stations and other high power Ethernet backhaul devices.For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model equiped standard DIN rail mounting bracket,which can easily jam into the guide rail. - Input :12-55Vdc - Output: 55Vdc 1750mA - Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) - Data Speed: 10/100/1000Mbps - Full compliant with IEEE802.3af/at/PoE++ - PoE Surge Protection 6KV,Protected line: 1,2,3,4,5,6,7,8 - Operating Temperature: -40℃ to 75℃ - Operating Humidity: 20% to 80%, non-condensation - Storage Temperature: -40℃ to 85℃ - Storage Humidity: 10% to 90%, non-condensation - Operating Altitude: up to 5000meters - Case: Metal - Color: Black - Mounting: DIN Rail Mount - IP Rated: IP40 - Size: 144.5mm X 95mm X 35.4mm - Weight: 485g - Packing.：GND WIRE 16AWG x 1, Manual x 1
