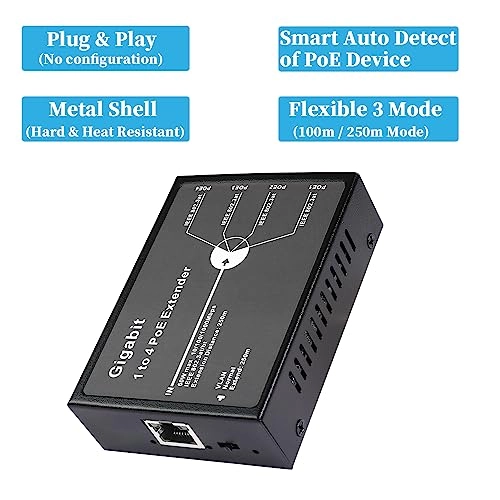

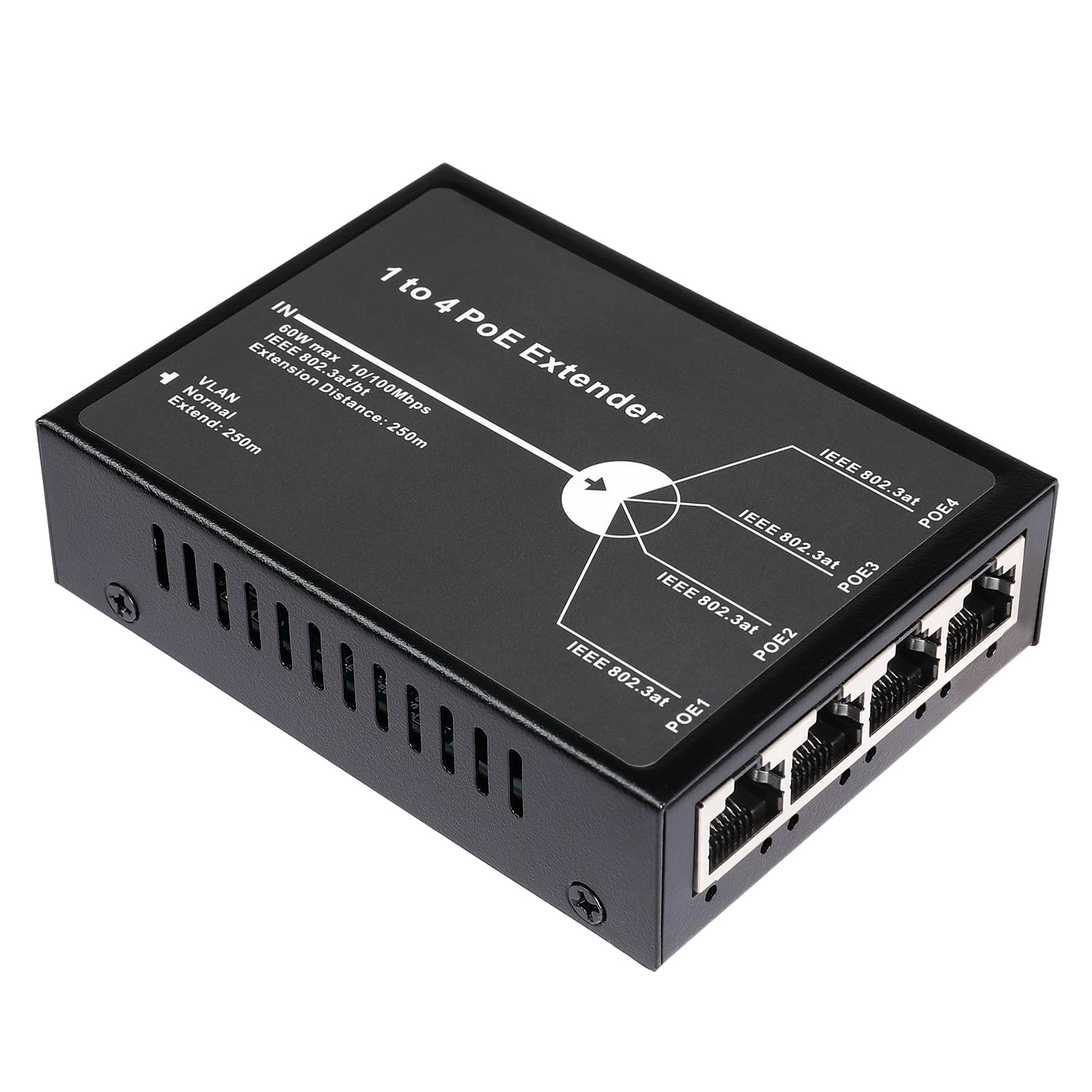

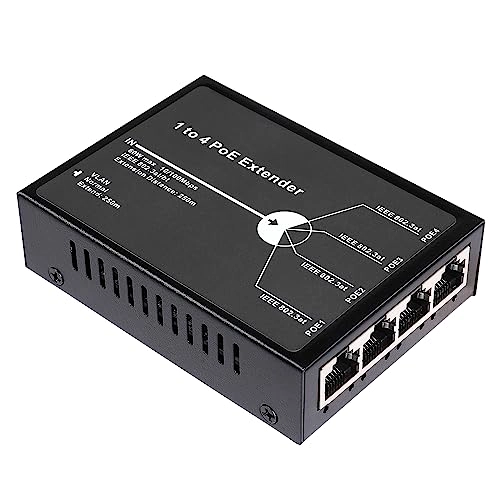

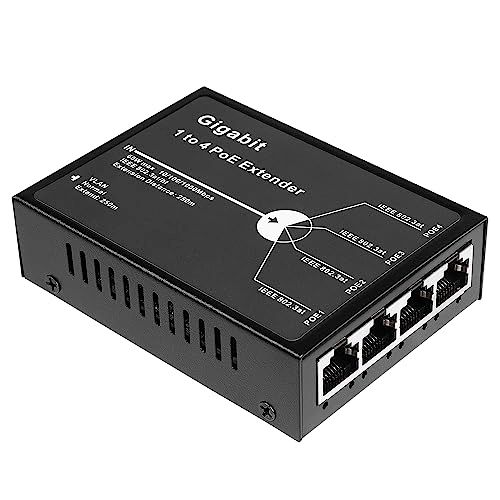

Revotech POE5004G-V2 - 48V 30W 4 IEEE802.3af/at/BT 10/100/1000Mbps 60W

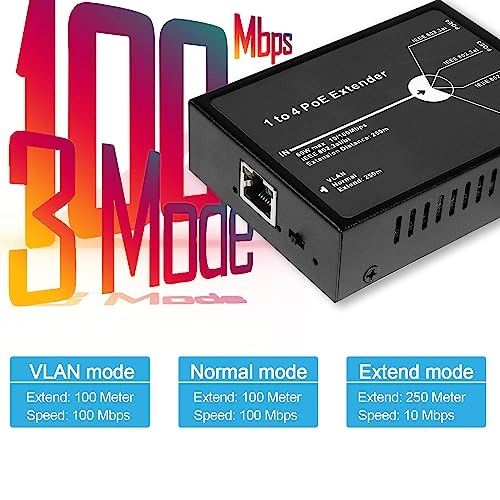

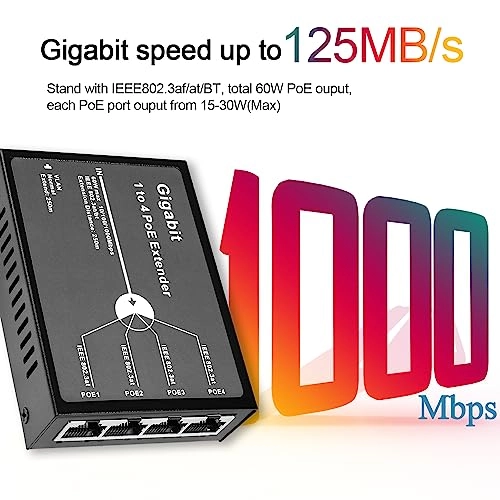

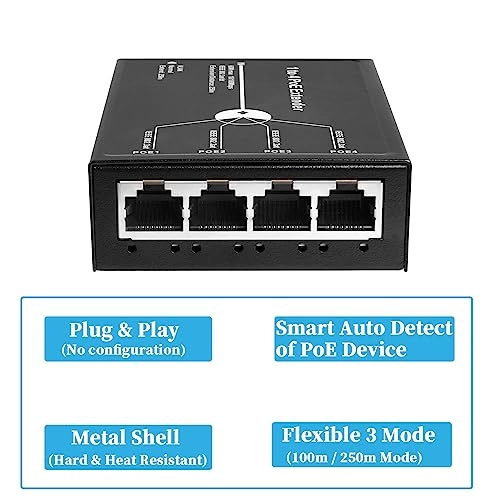

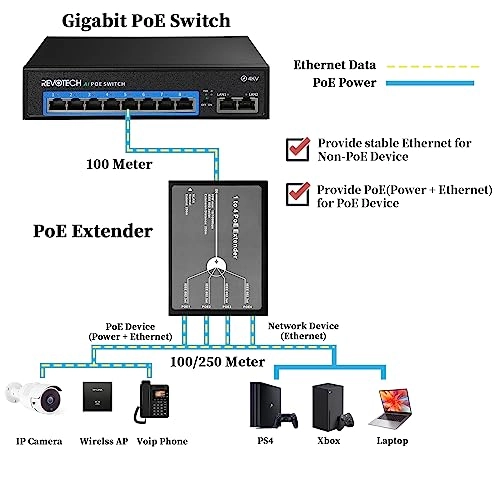

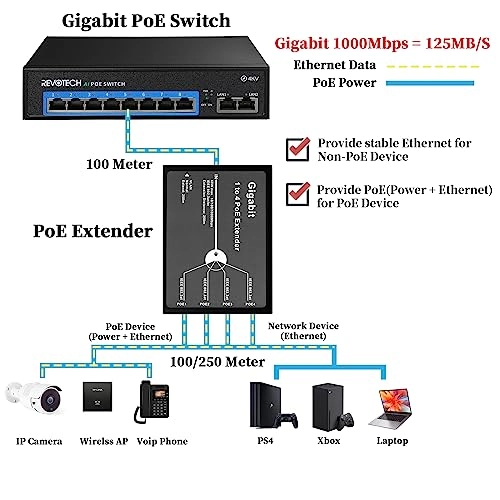

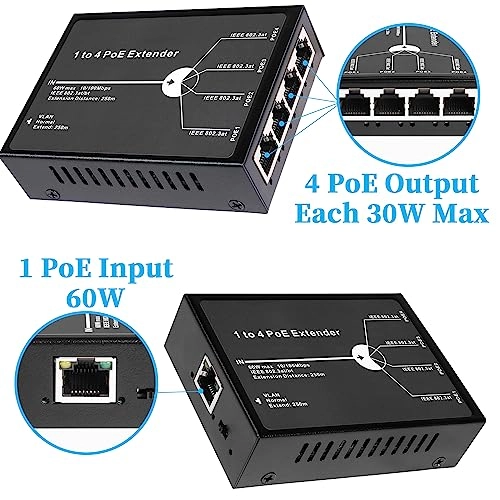

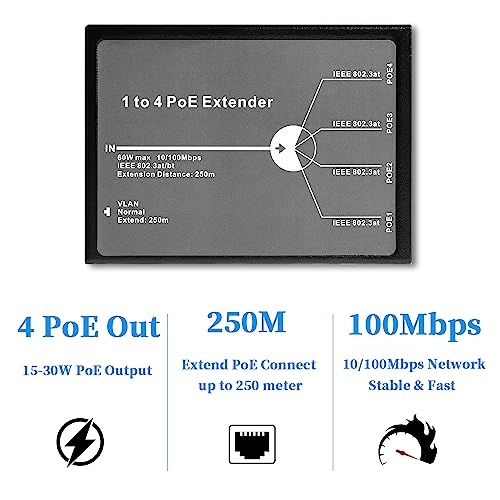

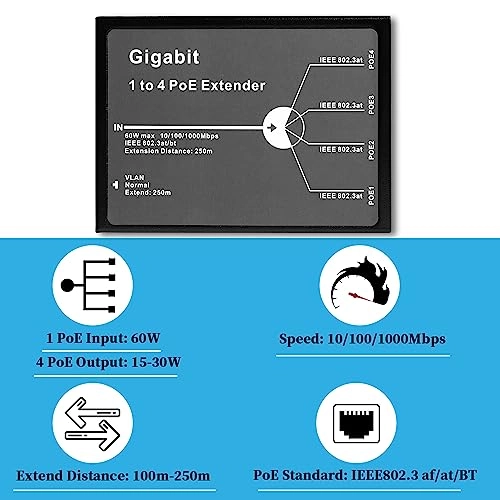

Note: 1. This Extender is not a PoE Switch, it can not work without powered by PoE Switch/PoE injector/PoE NVR. 2. 60W total power budget need to powered by 802.3BT source; 3. To prevent the water seeping into the extender, please keep PoE extender away wet environment; 4.Please don't place any heavy thing on the PoE extender; Overview: POE5004G-V2 PoE Extender is a cost effective way to extend the PoE or Ethernet network range beyond 100m/250m(Max). Deliver Ethernet (10/100/1000Mbps) and power (30W Max) for PoE terminal device like WLAN AP, PTZ, IP Camera, etc with no require of local power. Comply IEEE802.3af/at/BT PoE standard. Specification: PoE Input: 1 RJ45 PoE port PoE Output: 4 RJ45 PoE port Input Power: 60W Max (802.3BT, PoE++, Hi-PoE) Output Power: 30W Max (802.3af) Output Voltage: 48V Transfer rate: 10/100/1000Mbps Normal Mode: Max 100M PoE Extend Distance VLAN Mode: Max 100M PoE Extend Distance Extend Mode: Max 250M PoE Extend Distance Network Cable: Cat5, Cat5e ,Cat6 or better Repeater Mode: Store and forward MAC Address Table: 8K Packet Buffer Memory: 126 Byte Switching Capacity: 8000Mbps PoE Standard: IEEE 802.3af/at/BT Power Supply Type: 1/2+,3/6-,ModeA,End-Span Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af/at/BT Regulatory Compliance: IEEE802.3af/at/BT, RoHS Compliant, CE, FCC Storage Humidity: 5%~90%, No Condensation Operating temperature: -35～75℃ Dimension: 95 * 70 * 21mm(L*W*H) Weight: 173g Package Include: 1 * 4 Port POE Extender (POE5004G-V2)
