Revotech PS5712TG - 48V 24W 1 IEEE802.3af/at 10/100/1000Mbps 30W

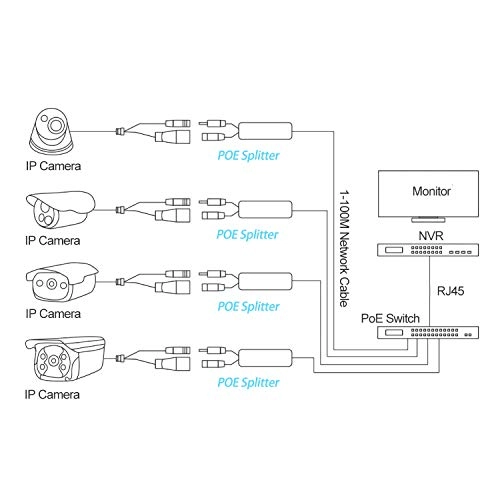

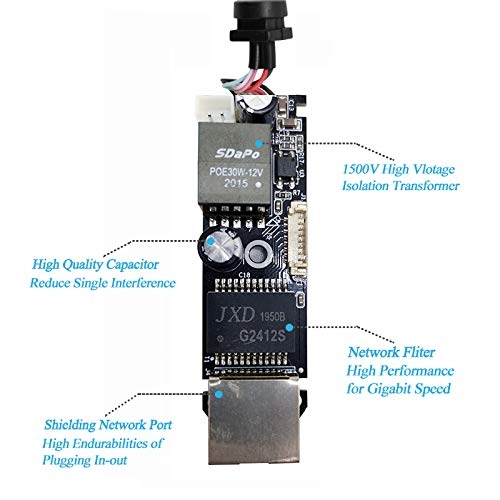

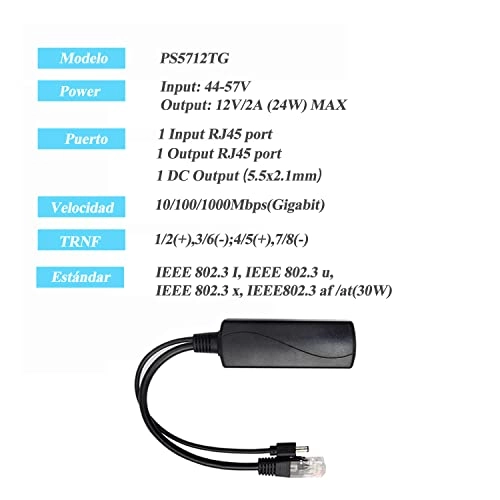

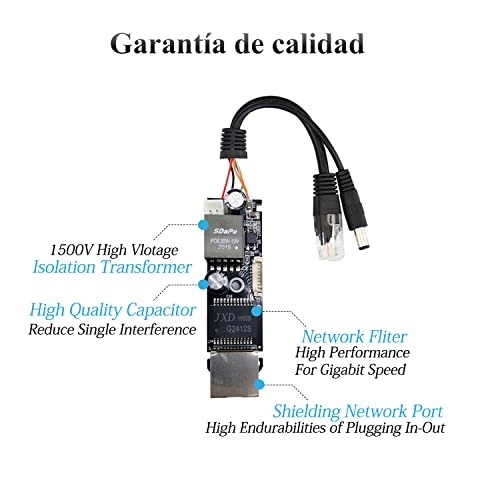

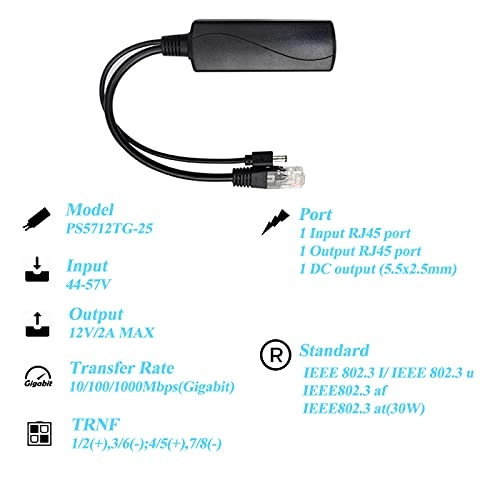

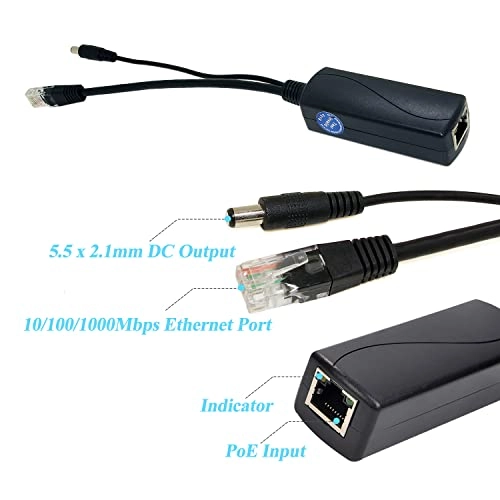

Overview: The PoE Splitter is an economical and practical PoE remote power equipment based on IEEE802.3af and IEEE802.3at standards. It can disconnect power and data via cable transmission and properly use with PoE switch or PSE injector that comply with IEEE802.3af/at standard. Delivers power and data to the terminal device simultaneously, does not support PoE. PoE splitter, output voltage of 12 V for use with the power supply equipment. It helps to expand the wireless city, security monitoring and other convenient PoE locations and is not restricted by the arrangement of the power line. Specifications: Supports international standard IEEE802.3 af/at (30 W); POE port supports 10/100/1000Mbps data transfer PD support 44V - 57V voltage transmission, automatically detects the power supply from PSE power supply module 12V 2A output power, easily accessible Poe network for non-PoE terminal Support the insulation circuit protection, you can effectively protect electrical devices. Supports short circuit, surge protection. 1500 V high voltage insulation. Model: PS5712TG-25 Transfer rate: 10/100/1000Mbps (Gigabit) Power supply: input 48V DC/0.6A, output 12V/2A. Standard: IEEE802.3 af/IEEE802.3 at (30W) TRNF: 1/2(+),3/6(-);4/5(+),7/8(-) Interface type: 1 RJ45 input, 1 RJ45 output, 1 DC output (5.5 x 2.5 mm) Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at LED: Yellow PoE Lamp Temperature: work within -20~50°, storage within -30~60°. Humidity: works within 10% to 90% (non-condensing), storage within 5% to 95% (non-condensing) DC socket: 5.5 x 2.5 mm. Dimensions: 27.5 x 2.8 x 2.3 cm. Weight: 0.05 kg. Package contents: 1 x POE Splitter (PS5712TG-25)
